PIP-11775

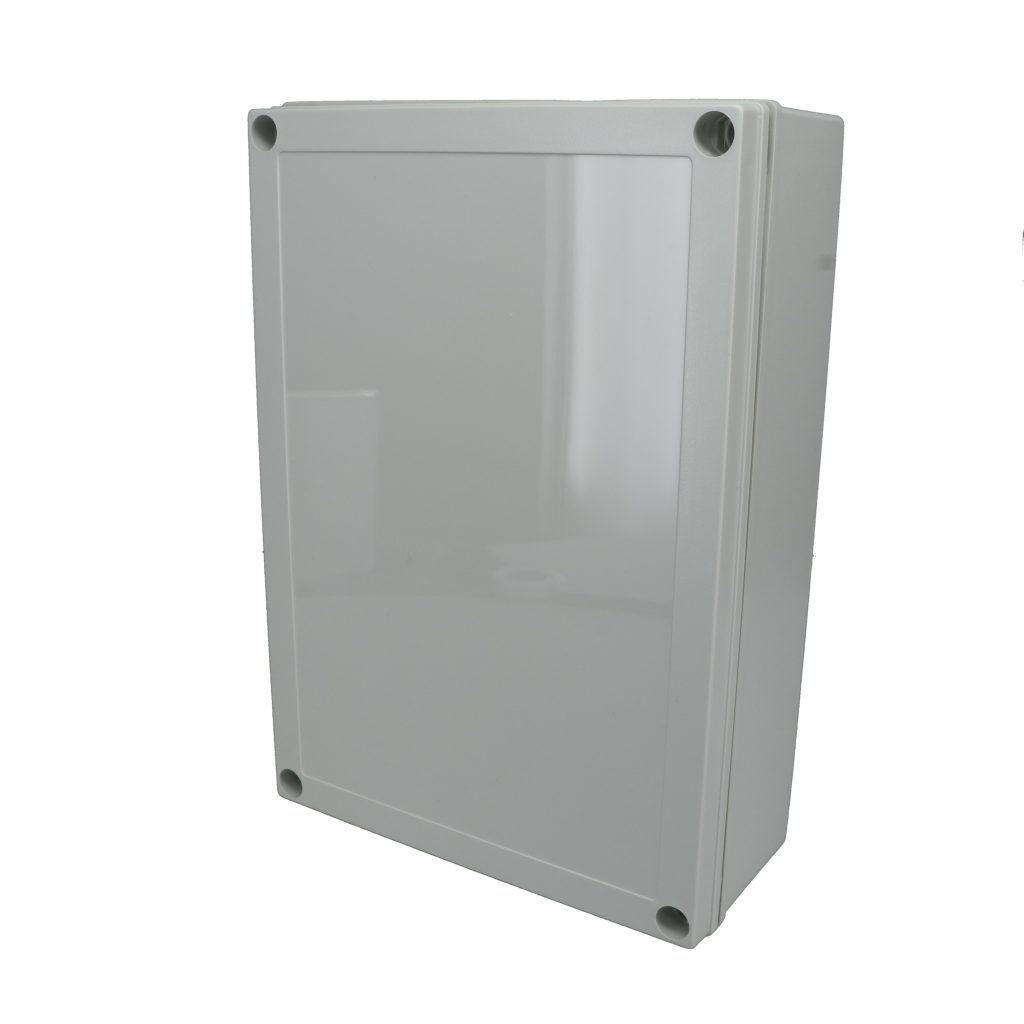

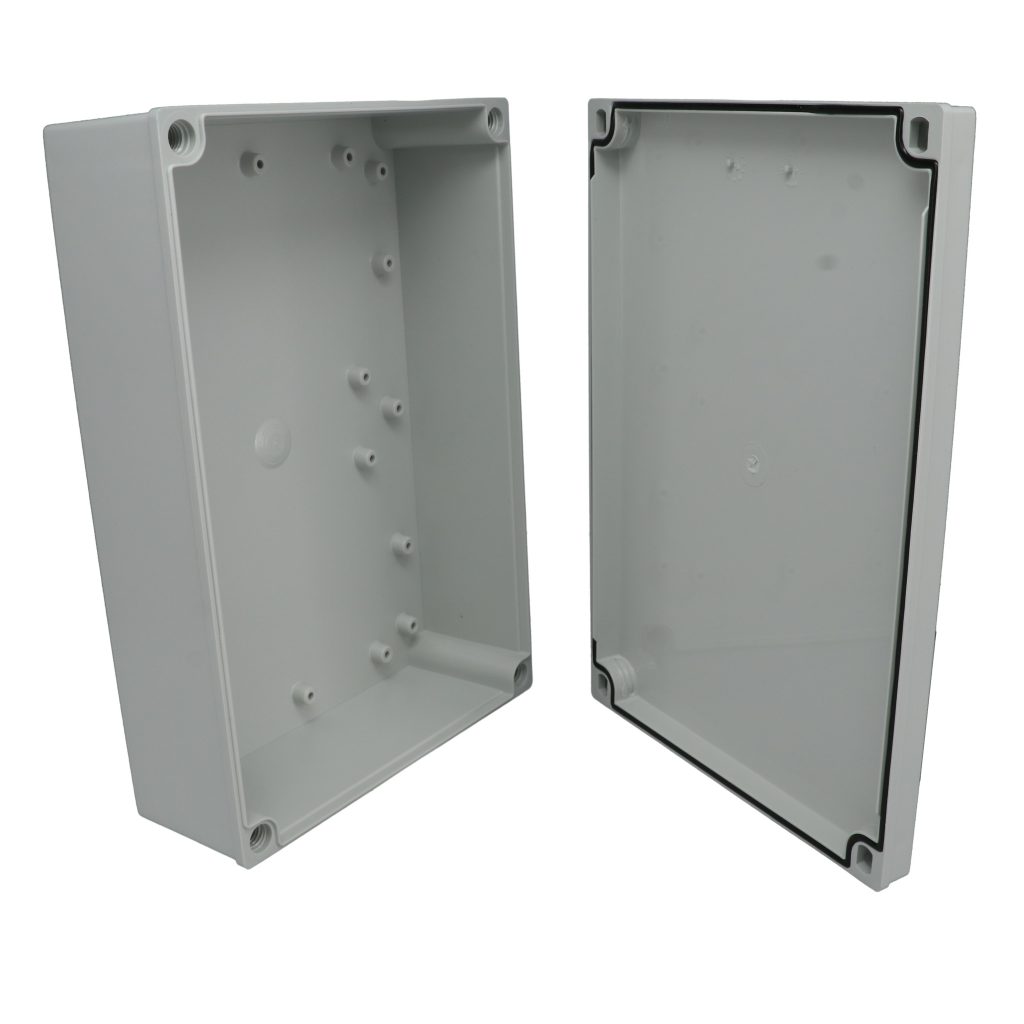

Fiberglass Box with Captive Screws PIP-11775
5 Day Modifications

Product Details

Model # PIP-11775 PIP Series Fiberglass Boxes
  • Body made of gray polycarbonate plastic 10% glass-fiber filled.
  • Cover made of gray polycarbonate plastic.
  • High impact resistance.
  • IP 67 rating to keep out dust and water in extreme conditions (meets NEMA Type 6).
  • UL508 / UL tested for type 4X, listed #E194432.
  • RoHs compliant.
  • Non-chlorinated and non-brominated flame retardant with UL-94 V0 rating.
  • Suitable for outdoor use with respect to exposure to ultraviolet light, water exposure and immersion in accordance with UL 746C.
  • Nonmetallic captive screws without the risk of stripping.
  • Good chemical resistance.
  • Continuous gasket.
 Check Stock / Pricing Request ModificationsCompare Sizes and ModelsSee Accessories
External Size L x W x D: 10.04" x 7.09" x 2.95"
Internal Size L x W x D: 8.86" x 5.91" x 2.46"
Weight: 0.23 lbs
Color: Light Gray
RoHS Certified: Always Compliant
UL Rating: UL508
Type of Plastic: Polycarbonate
Service Temperature Min: -40°C
Service Temperature Max: 120°C
Cover Style: Opaque, Screw Down Cover
Indoor / Outdoor: Outdoor (UV Stabilized)
Flammability Rating: UL94-V0
Door Flammability Rating: UL94-V0
Door Type of Plastic: Polycarbonate
Features: 10% Fiberglass Reinforced Plastic
NEMA Rating: NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 6
IP Rating: IP67
Features: 10% Fiberglas Reinforced Plastic

Drawing

PIP-11775 Dimensions

OTHER MODELS IN THIS SERIES

Model # External Dimensions Internal Dimensions Cover Style
PIP-11775 10.04" x 7.09" x 2.95" 10.047.092.95 8.86" x 5.91" x 2.46" Opaque, Screw Down Cover
PIP-11775-F 10.04" x 7.09" x 2.95" 10.047.092.95 8.86" x 5.91" x 2.46" Opaque, Screw Down Cover
PIP-11775-FC 10.04" x 7.09" x 2.95" 10.047.092.95 8.86" x 5.91" x 2.46" Clear, Screw Down Cover
PIP-11775-C 10.04" x 7.09" x 2.95" 10.047.092.95 8.86" x 5.91" x 2.46" Clear, Screw Down Cover
PIP-11777-F 10.04" x 7.09" x 4.92" 10.047.094.92 8.86" x 5.91" x 4.40" Opaque, Screw Down Cover
PIP-11777-FC 10.04" x 7.09" x 4.92" 10.047.094.92 8.86" x 5.91" x 4.40" Clear, Screw Down Cover
PIP-11777 10.04" x 7.09" x 4.92" 10.047.094.92 8.86" x 5.91" x 4.40" Opaque, Screw Down Cover
PIP-11777-C 10.04" x 7.09" x 4.92" 10.047.094.92 8.86" x 5.91" x 4.40" Clear, Screw Down Cover
PIP-11760 5.12" x 3.15" x 1.38" 5.123.151.38 3.94" x 1.97" x 1.05" Opaque, Screw Down Cover
PIP-11760-C 5.12" x 3.15" x 1.38" 5.123.151.38 3.94" x 1.97" x 1.05" Clear, Screw Down Cover
PIP-11763-F 5.12" x 3.15" x 3.35" 5.123.153.35 3.94" x 1.97" x 2.57" Opaque, Screw Down Cover
PIP-11763-FC 5.12" x 3.15" x 3.35" 5.123.153.35 3.94" x 1.97" x 2.57" Clear, Screw Down Cover
PIP-11763-C 5.12" x 3.15" x 3.35" 5.123.153.35 3.94" x 1.97" x 2.57" Clear, Screw Down Cover
PIP-11763 5.12" x 3.15" x 3.35" 5.123.153.35 3.94" x 1.97" x 2.57" Opaque, Screw Down Cover
PIP-11766-C 5.12" x 5.12" x 1.38" 5.125.121.38 3.94" x 3.94" x 1.05" Clear, Screw Down Cover
PIP-11766 5.12" x 5.12" x 1.38" 5.125.121.38 3.94" x 3.94" x 1.05" Opaque, Screw Down Cover
PIP-11767-C 5.12" x 5.12" x 2.36" 5.125.122.36 3.94" x 3.94" x 2.04" Clear, Screw Down Cover
PIP-11767 5.12" x 5.12" x 2.36" 5.125.122.36 3.94" x 3.94" x 2.04" Opaque, Screw Down Cover
PIP-11772-F 7.09" x 7.09" x 2.95" 7.097.092.95 6.71" x 6.71" x 2.43" Opaque, Screw Down Cover
PIP-11772-FC 7.09" x 7.09" x 2.95" 7.097.092.95 5.91" x 5.91" x 2.43" Clear, Screw Down Cover
PIP-11774-C 7.09" x 7.09" x 4.92" 7.097.094.92 5.91" x 5.91" x 4.40" Clear, Screw Down Cover
PIP-11774-FC 7.09" x 7.09" x 4.92" 7.097.094.92 5.91" x 5.91" x 4.40" Clear, Screw Down Cover
PIP-11774-F 7.09" x 7.09" x 4.92" 7.097.094.92 5.91" x 5.91" x 4.40" Opaque, Screw Down Cover
PIP-11774 7.09" x 7.09" x 4.92" 7.097.094.92 5.91" x 5.91" x 4.40" Opaque, Screw Down Cover
