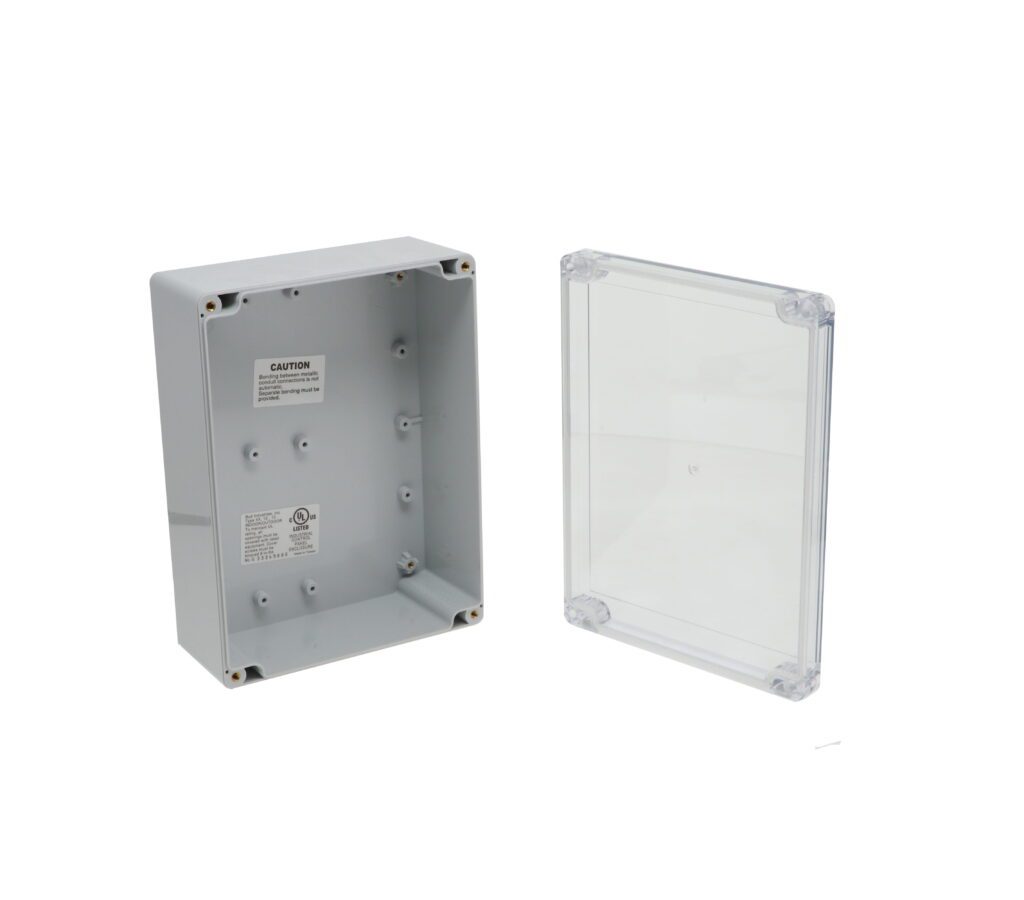

NEMA Box with Clear Recessed Cover PNR-2608-C
  • NEMA Box with Clear Recessed Cover PNR-2608-C

Product Details

Model # PNR-2608-C PNR Series NEMA Box with Recessed Cover
  • Designed to IP65 of IEC 529 and NEMA 1, 2, 4, 4x, 12, and 13 specifications
  • UL508-4x listed
  • Wall mounting holes and cover attaching screws are outside the sealing area thus preventing ingress of moisture and dust.
  • Most models have internal guide slots for mounting PCB assemblies vertically.
  • Internal bosses allow mounting of PCBs horizontally or for connection of terminals etc, into threaded brass inserts.
  • Cover screws are M-4 stainless steel, non-magnetic and fasten into threaded brass inserts.
See Other Models Search by Size See Accessories Check Stock / Pricing
External Size L x W x D: 7.87" x 5.91" x 2.95"
Internal Size L x W x D: 7.6" x 5.63" x 2.72"
Weight: 0.98125 lbs
Color: Light Gray
RoHS Certified: Always Compliant
Indoor / Outdoor: Outdoor (UV Stabilized)
Flammability Rating: UL94-HB
Door Flammability Rating: UL94-HB
Type of Plastic: Polycarbonate
Door Type of Plastic: Clear Polycarbonate
UL Rating: UL508
Service Temperature Min: -40°C
Service Temperature Max: 120°C
NEMA Rating: NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13
IP Rating: 65
Mounting Style: Mounting Holes
Cover Style: Clear, Screw Down Cover
hb2607.pdf hb2607.dxf

Drawing
