PNR-2601-DG

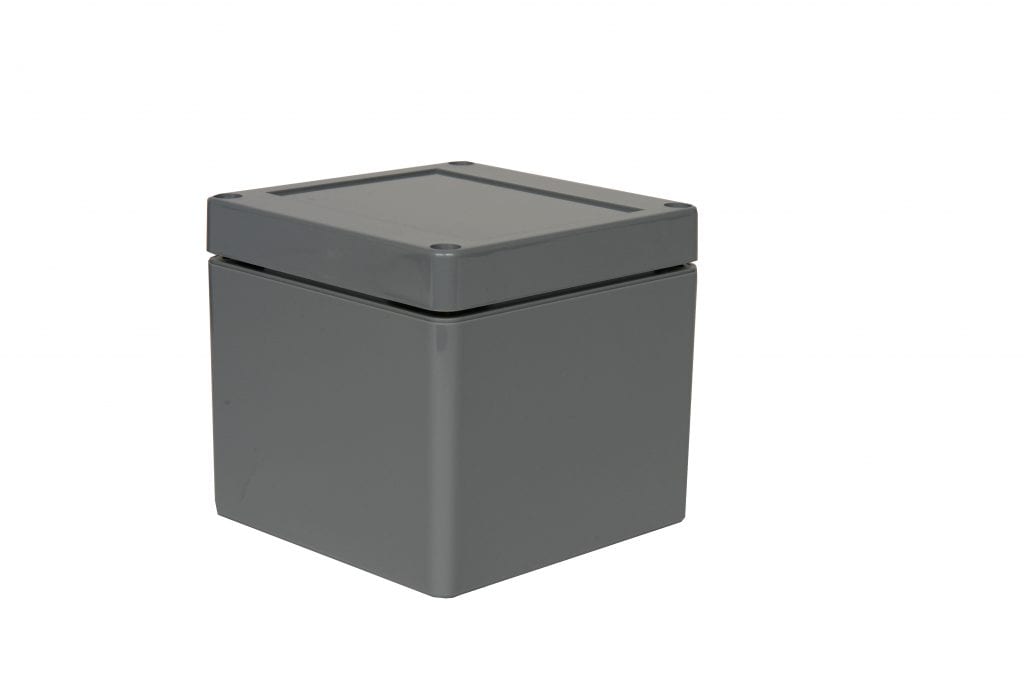

NEMA Box with Recessed Cover Dark Gray PNR-2601-DG

Product Details

Model # PNR-2601-DG PNR Series NEMA Box with Recessed Cover
  • Designed to IP65 of IEC 529 and NEMA 1, 2, 4, 4x, 12, and 13 specifications
  • UL508-4x listed
  • Wall mounting holes and cover attaching screws are outside the sealing area thus preventing ingress of moisture and dust.
  • Most models have internal guide slots for mounting PCB assemblies vertically.
  • Internal bosses allow mounting of PCBs horizontally or for connection of terminals etc, into threaded brass inserts.
  • Cover screws are M-4 stainless steel, non-magnetic and fasten into threaded brass inserts.
Compare Sizes and ModelsSee Accessories Request ModificationsCheck Stock / Pricing
External Size L x W x D: 3.94" x 3.94" x 3.54"
Internal Size L x W x D: 3.64" x 3.64" x 3.29"
Weight: 0.51875 lbs
Color: Dark Gray
RoHS Certified: Always Compliant
Indoor / Outdoor: Indoor (Not UV Stabilized)
Flammability Rating: UL94-HB
Door Flammability Rating: UL94-HB
Type of Plastic: ABS
Door Type of Plastic: ABS
UL Rating: UL508
Service Temperature Min: -40°C
Service Temperature Max: 80°C
NEMA Rating: NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13
IP Rating: 65
Mounting Style: Mounting Holes
Cover Style: Opaque, Screw Down Cover
hb2600.pdf hb2600.dxffile/d/1ZOrhrSsD7L0eC4b4Sg2RjIlPDZiHYr2I/view?usp=drivesdk

Drawing

OTHER MODELS IN THIS SERIES

Model # External Dimensions Internal Dimensions Indoor / Outdoor Flammability Rating Door Flammability Rating Cover Style
PNR-2600 3.94" x 3.94" x 2.17" 3.943.942.173.67" x 3.67" x 1.92" Outdoor (UV Stabilized) UL94-HB UL94-HB Opaque, Screw Down Cover
PNR-2600-C 3.94" x 3.94" x 2.17" 3.943.942.173.67" x 3.67" x 1.92" Outdoor (UV Stabilized) UL94-HB UL94-HB Clear, Screw Down Cover
PNR-2600-DG 3.94" x 3.94" x 2.17" 3.943.942.173.67" x 3.67" x 1.92" Indoor (Not UV Stabilized) UL94-HB UL94-HB Opaque, Screw Down Cover
PNR-2601 3.94" x 3.94" x 3.54" 3.943.943.543.64" x 3.64" x 3.29" Outdoor (UV Stabilized) UL94-HB UL94-HB Opaque, Screw Down Cover
PNR-2601-C 3.94" x 3.94" x 3.54" 3.943.943.543.64" x 3.64" x 3.29" Outdoor (UV Stabilized) UL94-HB UL94-HB Clear, Screw Down Cover
PNR-2601-DG 3.94" x 3.94" x 3.54" 3.943.943.543.64" x 3.64" x 3.29" Indoor (Not UV Stabilized) UL94-HB UL94-HB Opaque, Screw Down Cover
PNR-2602 4.72" x 3.15" x 2.17" 4.723.152.174.45" x 2.85" x 1.92" Outdoor (UV Stabilized) UL94-HB UL94-HB Opaque, Screw Down Cover
PNR-2602-C 4.72" x 3.15" x 2.17" 4.723.152.174.45" x 2.85" x 1.92" Outdoor (UV Stabilized) UL94-HB UL94-HB Clear, Screw Down Cover
PNR-2602-DG 4.72" x 3.15" x 2.17" 4.723.152.174.45" x 2.85" x 1.92" Indoor (Not UV Stabilized) UL94-HB UL94-HB Opaque, Screw Down Cover
PNR-2603 4.72" x 3.15" x 3.35" 4.723.153.354.45" x 2.85" x 3.10" Outdoor (UV Stabilized) UL94-HB UL94-HB Opaque, Screw Down Cover
PNR-2603-C 4.72" x 3.15" x 3.35" 4.723.153.354.45" x 2.85" x 3.10" Outdoor (UV Stabilized) UL94-HB UL94-HB Clear, Screw Down Cover
PNR-2603-DG 4.72" x 3.15" x 3.35" 4.723.153.354.45" x 2.85" x 3.10" Indoor (Not UV Stabilized) UL94-HB UL94-HB Opaque, Screw Down Cover
PNR-2604 7.85" x 4.72" x 3.54" 7.854.723.547.57" x 4.42" x 3.25" Outdoor (UV Stabilized) UL94-HB UL94-HB Opaque, Screw Down Cover
PNR-2604-C 7.85" x 4.72" x 3.54" 7.854.723.547.57" x 4.42" x 3.25" Outdoor (UV Stabilized) UL94-HB UL94-HB Clear, Screw Down Cover
PNR-2604-DG 7.85" x 4.72" x 3.54" 7.854.723.547.57" x 4.42" x 3.25" Indoor (Not UV Stabilized) UL94-HB UL94-HB Opaque, Screw Down Cover
PNR-2607 7.87" x 5.91" x 2.17" 7.875.912.177.54" x 5.61" x 1.92" Outdoor (UV Stabilized) UL94-HB UL94-HB Opaque, Screw Down Cover
PNR-2607-C 7.87" x 5.91" x 2.17" 7.875.912.177.54" x 5.61" x 1.92" Outdoor (UV Stabilized) UL94-HB UL94-HB Clear, Screw Down Cover
PNR-2607-DG 7.87" x 5.91" x 2.17" 7.875.912.177.54" x 5.61" x 1.92" Indoor (Not UV Stabilized) UL94-HB UL94-HB Opaque, Screw Down Cover
PNR-2608 7.87" x 5.91" x 2.95" 7.875.912.957.60" x 5.63" x 2.72" Outdoor (UV Stabilized) UL94-HB UL94-HB Opaque, Screw Down Cover
PNR-2608-C 7.87" x 5.91" x 2.95" 7.875.912.957.60" x 5.63" x 2.72" Outdoor (UV Stabilized) UL94-HB UL94-HB Clear, Screw Down Cover
PNR-2608-DG 7.87" x 5.91" x 2.95" 7.875.912.957.60" x 5.63" x 2.72" Indoor (Not UV Stabilized) UL94-HB UL94-HB Opaque, Screw Down Cover
PNR-2605 9.45" x 4.72" x 2.36" 9.454.722.369.19" x 4.47" x 2.07" Outdoor (UV Stabilized) UL94-HB UL94-HB Opaque, Screw Down Cover
PNR-2605-C 9.45" x 4.72" x 2.36" 9.454.722.369.19" x 4.47" x 2.07" Outdoor (UV Stabilized) UL94-HB UL94-HB Clear, Screw Down Cover
PNR-2605-DG 9.45" x 4.72" x 2.36" 9.454.722.369.19" x 4.47" x 2.07" Indoor (Not UV Stabilized) UL94-HB UL94-HB Opaque, Screw Down Cover
PNR-2606 9.45" x 4.72" x 3.94" 9.454.723.949.21" x 4.49" x 3.63" Outdoor (UV Stabilized) UL94-HB UL94-HB Opaque, Screw Down Cover
PNR-2606-C 9.45" x 4.72" x 3.94" 9.454.723.949.21" x 4.49" x 3.63" Outdoor (UV Stabilized) UL94-HB UL94-HB Clear, Screw Down Cover
PNR-2606-DG 9.45" x 4.72" x 3.94" 9.454.723.949.21" x 4.49" x 3.63" Indoor (Not UV Stabilized) UL94-HB UL94-HB Opaque, Screw Down Cover
