PNR-2606-DG

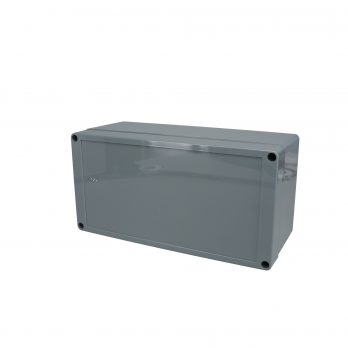

NEMA Box with Recessed Cover Dark Gray PNR-2606-DG

Product Details

Model # PNR-2606-DG PNR Series NEMA Box with Recessed Cover
  • Designed to IP65 of IEC 529 and NEMA 1, 2, 4, 4x, 12, and 13 specifications
  • UL508-4x listed
  • Wall mounting holes and cover attaching screws are outside the sealing area thus preventing ingress of moisture and dust.

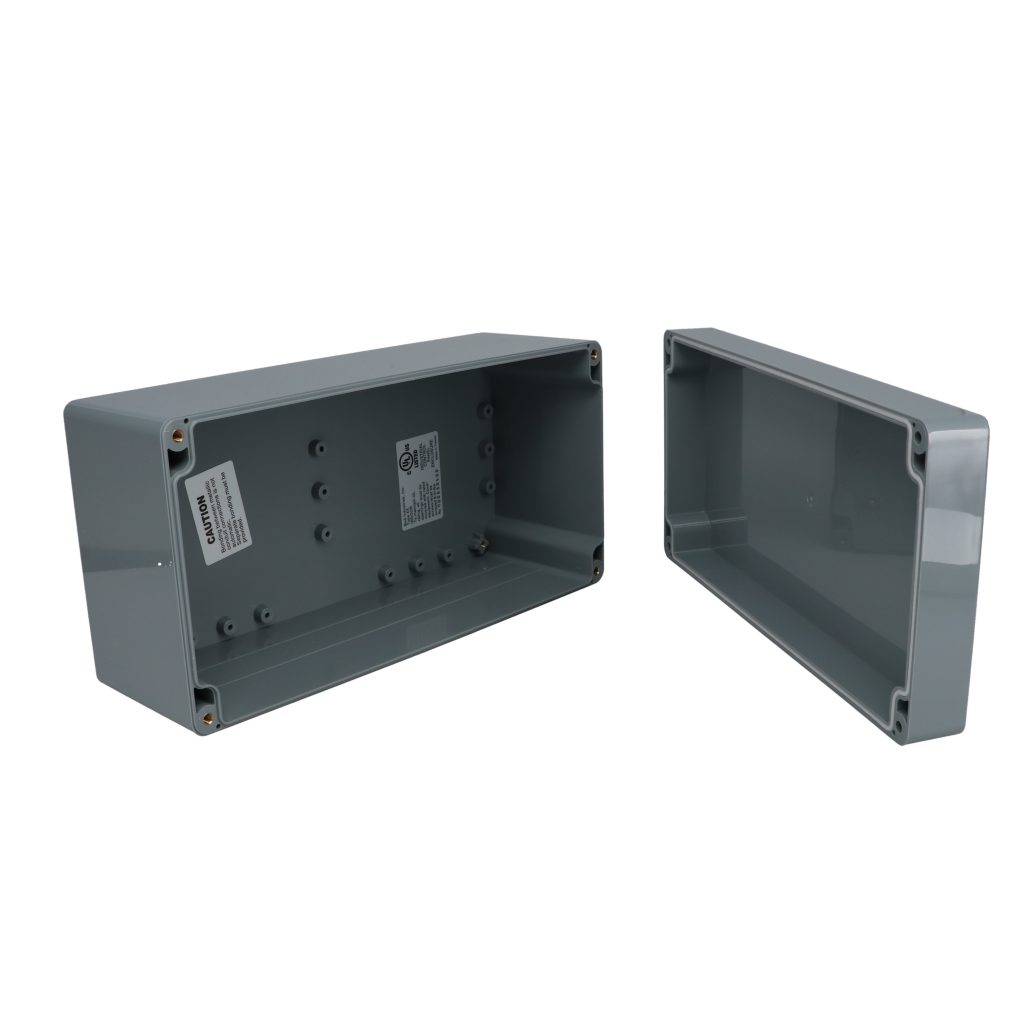

  • Most models have internal guide slots for mounting PCB assemblies vertically.
  • Internal bosses allow mounting of PCBs horizontally or for connection of terminals etc, into threaded brass inserts.
  • Cover screws are M-4 stainless steel, non-magnetic and fasten into threaded brass inserts.
See Other Models Search by Size See Accessories Check Stock / Pricing
External Size L x W x D: 9.45" x 4.72" x 3.94"
Internal Size L x W x D: 9.21" x 4.49" x 3.63"
Weight: 1.20625 lbs
Color: Dark Gray
RoHS Certified: Always Compliant
Indoor / Outdoor: Indoor (Not UV Stabilized)
Flammability Rating: UL94-HB
Door Flammability Rating: UL94-HB
Type of Plastic: ABS
Door Type of Plastic: ABS
UL Rating: UL508
Service Temperature Min: -40°C
Service Temperature Max: 80°C
NEMA Rating: NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13
IP Rating: 65
Mounting Style: Mounting Holes
Cover Style: Opaque, Screw Down Cover
hb2605.pdf hb2605.dxf

Drawing
