PC-11640

Plasticase H Plastic Case PC-11640
  • Plasticase Style H

Product Details

Model # PC-11640 Plasticase Style H Plastic Cases
  • This contemporary styled enclosure features a unique interlocking design that allows it to be stacked several high without slipping
  • Removable front and rear panels accommodate easy modification
  • Internal bosses allow for PCB mounting
  • Enclosure is made out of ABS plastic
  • Black finish
  • UL94V-0 flammability rating
Compare Sizes and Models Check Stock / Pricing
External Size H x W x D: 9.18" x 5.25" x 1.68"
Internal Size H x W x D: 8.92" x 5.07" x 1.20"
Weight: 0.54 lbs
Color: Black
RoHS Certified: Always Compliant
Type of Plastic: ABS
Flammability Rating: UL94-V0
Bosses: Yes
hb11640.pdf hb11640.dxf

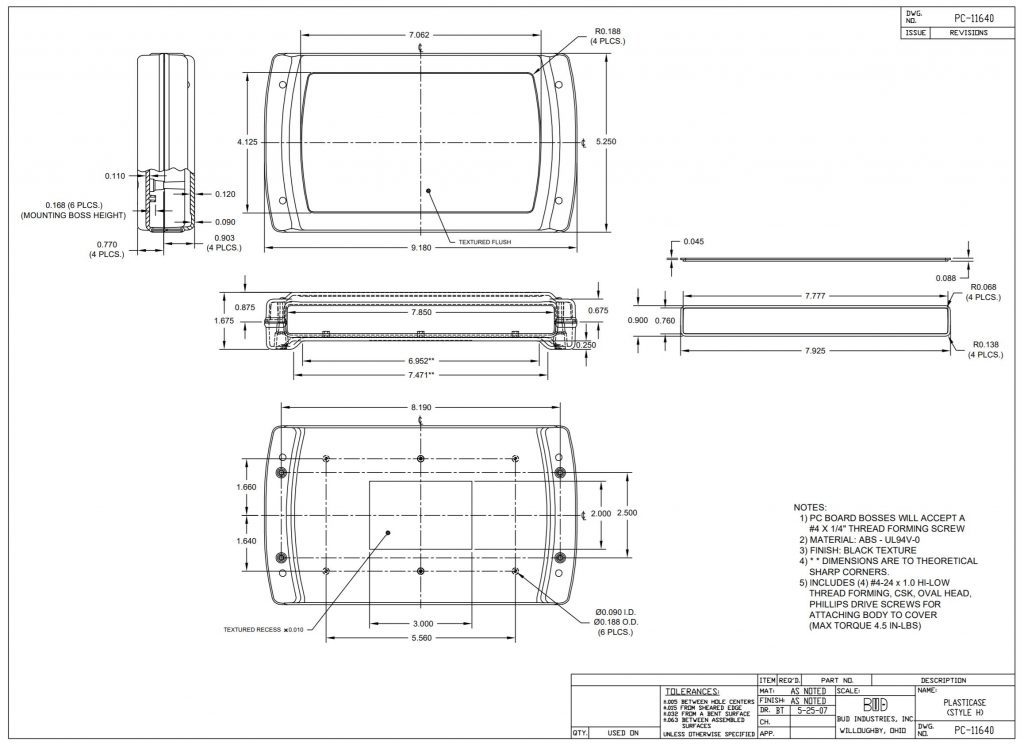

Drawing

OTHER MODELS IN THIS SERIES

Model # External Dimensions Internal Dimensions
PC-11640 9.18" x 5.25" x 1.68" 9.185.251.68 8.92" x 5.07" x 1.20"
PC-11645 9.18" x 5.25" x 2.36" 9.185.252.36 8.97" x 5.08" x 1.88"
