NBD-10472

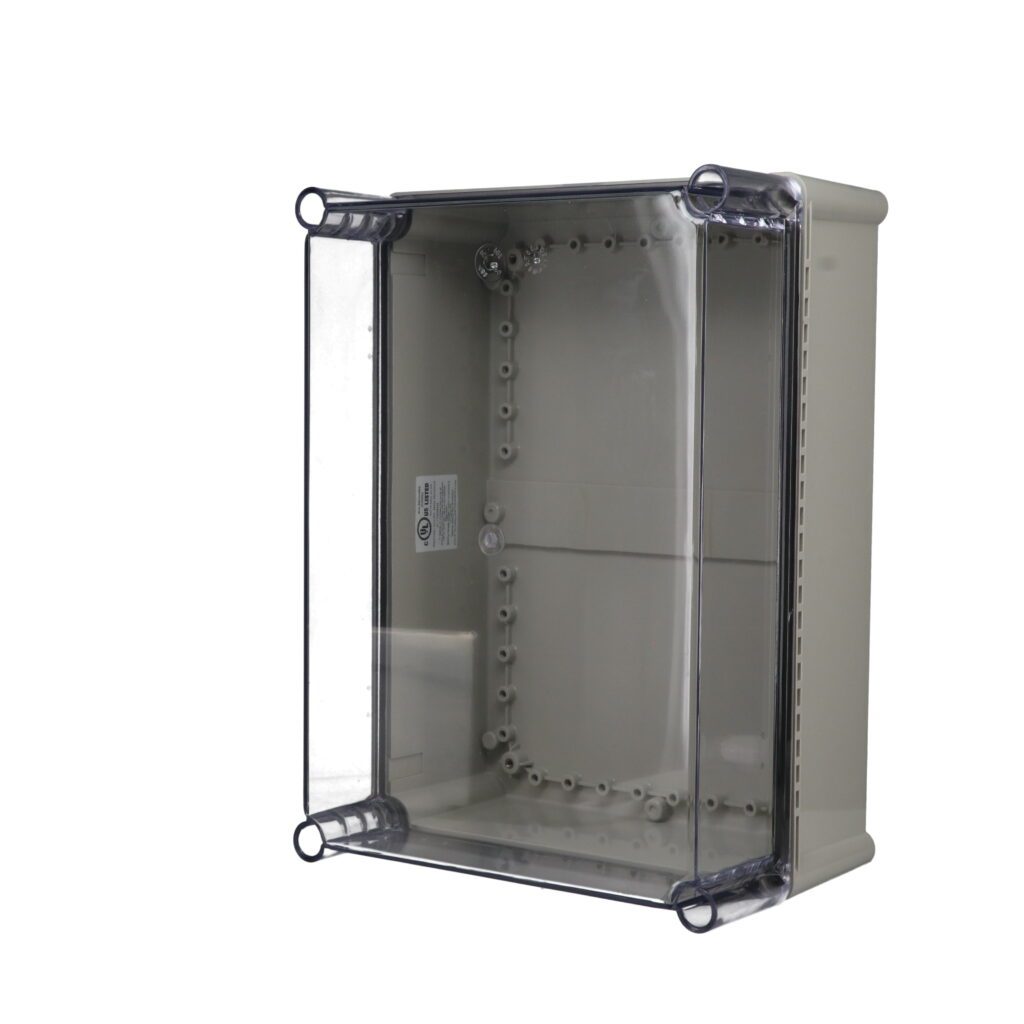

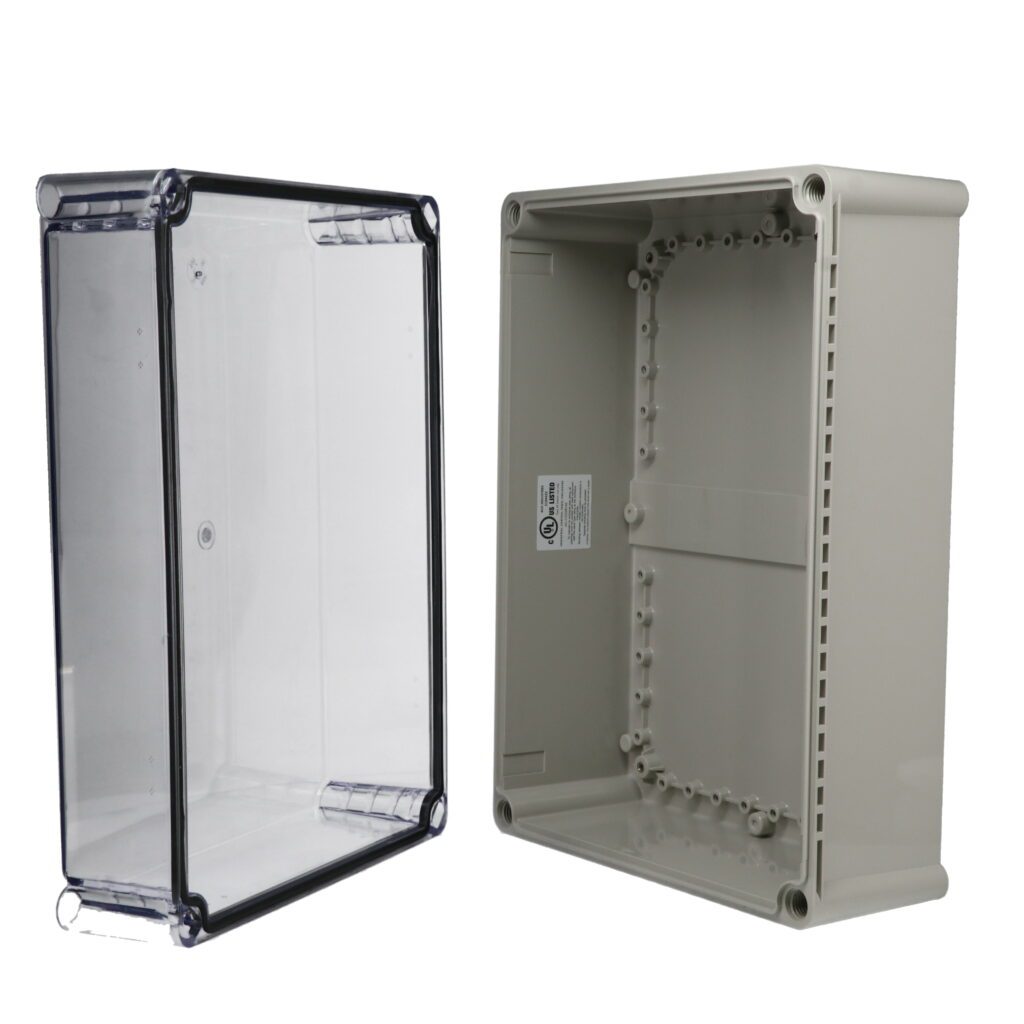

NEMA Enclosure with Screw-Down Cover NBD-10472
5 Day Modifications
  • NBD Series NEMA Enclosure with Screw-Down Cover

Product Details

Model # NBD-10472 NBD Series Plastic NEMA Enclosure
  • Designed to IP66 of IEC 529 and NEMA 1, 4 and 4x specifications.
  • UL Listed to UL508-4x requirements
  • ABS/PC blended plastic enclosures are molded out of light gray material with a clear cover and UL94-5VA flammability rating.  Suggested service temperature range -40C to +70C.
  • Clear doors  are molded out of polycarbonate material with UL94-V0 flammability rating
 Compare Sizes and ModelsSee Accessories Request ModificationsCheck Stock / Pricing
External Size L x W x D: 14.96" x 11.02" x 7.01"
Internal Size L x W x D: 14.13" x 10.20" x 6.77"
Weight: 4.1 lbs
Color: Light Gray
RoHS Certified: Always Compliant
Indoor / Outdoor: Indoor (Not UV Stabilized)
Flammability Rating: UL94-5VA
Door Flammability Rating: UL94-V0
Type of Plastic: ABS Poly Blend
Door Type of Plastic: Clear Polycarbonate
UL Rating: UL508
Service Temperature Min: -40°C
Service Temperature Max: 70°C
NEMA Rating: NEMA 1, NEMA 2, NEMA 4, NEMA 4X
IP Rating: 66
Cover Style: Clear, Screw Down Cover
hb10452.pdf hb10452-1.dxffile/d/1umOaEmjRN53KiCbRXaVl7jRD8r5FWQ87/view?usp=drivesdk

Drawing

NBD-10472 Dimensions

OTHER MODELS IN THIS SERIES

Model # External Dimensions Internal Dimensions Indoor / Outdoor Cover Style
NBD-10442 11.02" x 7.48" x 5.03" 11.027.485.0310.47" x 6.66" x 4.81" Indoor (Not UV Stabilized) Opaque, Screw Down Cover
NBD-10462 11.02" x 7.48" x 5.03" 11.027.485.0310.47" x 6.66" x 4.81" Indoor (Not UV Stabilized) Clear, Screw Down Cover
NBD-15442 11.02" x 7.48" x 5.03" 11.027.485.0310.47" x 6.66" x 4.81" Outdoor (UV Stabilized) Opaque, Screw Down Cover
NBD-10449 13.42" x 11.05" x 5.11" 13.4211.055.1112.46" x 10.09" x 4.86" Indoor (Not UV Stabilized) Opaque, Screw Down Cover
NBD-10469 13.42" x 11.05" x 5.11" 13.4211.055.1112.46" x 10.09" x 4.86" Indoor (Not UV Stabilized) Clear, Screw Down Cover
NBD-15449 13.42" x 11.05" x 5.11" 13.4211.055.1112.46" x 10.09" x 4.86" Outdoor (UV Stabilized) Opaque, Screw Down Cover
NBD-10452 14.96" x 11.02" x 7.01" 14.9611.027.0114.13" x 10.20" x 6.77" Indoor (Not UV Stabilized) Opaque, Screw Down Cover
NBD-10472 14.96" x 11.02" x 7.01" 14.9611.027.0114.13" x 10.20" x 6.77" Indoor (Not UV Stabilized) Clear, Screw Down Cover
NBD-15452 14.96" x 11.02" x 7.01" 14.9611.027.0114.13" x 10.20" x 6.77" Outdoor (UV Stabilized) Opaque, Screw Down Cover
NBD-10445 15.00" x 7.53" x 7.00" 15.007.537.0014.41" x 6.70" x 6.75" Indoor (Not UV Stabilized) Opaque, Screw Down Cover
NBD-10465 15.00" x 7.53" x 7.00" 15.007.537.0014.41" x 6.70" x 6.75" Indoor (Not UV Stabilized) Clear, Screw Down Cover
NBD-15445 15.00" x 7.53" x 7.00" 15.007.537.0014.41" x 6.70" x 6.75" Outdoor (UV Stabilized) Opaque, Screw Down Cover
NBD-10456 22.08" x 14.97" x 7.04" 22.0814.977.0421.26" x 14.17" x 6.72" Indoor (Not UV Stabilized) Opaque, Screw Down Cover
NBD-10476 22.08" x 14.97" x 7.04" 22.0814.977.0421.26" x 14.17" x 6.72" Indoor (Not UV Stabilized) Clear, Screw Down Cover
NBD-15456 22.08" x 14.97" x 7.04" 22.0814.977.0421.26" x 14.17" x 6.72" Outdoor (UV Stabilized) Opaque, Screw Down Cover
