Fiberglass Box with Knockouts PTK-18426
  • Fiberglass Box with Knockouts PTK-18426 closed
  • Fiberglass Box with Knockouts PTK-18426 open

Product Details

Model # PTK-18426 PTK Series Fiberglass Box
  • Two pre-molded knock outs (21-22 mm) for easy field installation and modification cost savings
  • Body made of gray polycarbonate (PC) plastic 10% glass fiber filled
  • Cover made of clear polycarbonate (PC) plastic
  • Outstanding strength and high impact resistance
  • Nonmetallic cover screws
  • IP-67 TUV rating to keep out dust and water in extreme conditions.
  • UL508 / NEMA type 4X and type 6 listed #E343339
  • RoHs compliant
  • UL industrial controls listed
  • Non-chlorinated & non-brominated flame retardant with UL-94 5VA rating
  • Suitable for outdoor use with respect to exposure to ultraviolet light, water exposure and immersion in accordance with UL 746C
  • -40c to +95c extended exposure condition
  • Good chemical resistance
  • Continuous poured RAKU-PUR® Foam gasket
See Other Models Search by Size Check Stock / Pricing
External Size L x W x D: 9.84" x 3.15" x 2.76"
Internal Size L x W x D: 9.50" x 2.80" x 2.52"
Weight: 2.9656 lbs
Color: Light Gray
RoHS Certified: Always Compliant
Knockouts: Knockouts
Indoor / Outdoor: Outdoor (UV Stabilized)
Flammability Rating: UL94-5VA
Type of Plastic: Polycarbonate
UL Rating: UL508
Service Temperature Min: -40°C
Service Temperature Max: 95°C
Features: 10% Fiberglass Reinforced Plastic
NEMA Rating: NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 6
IP Rating: 67
Features: 10% Fiberglas Reinforced Plastic
Cover Style: Opaque, Screw Down Cover

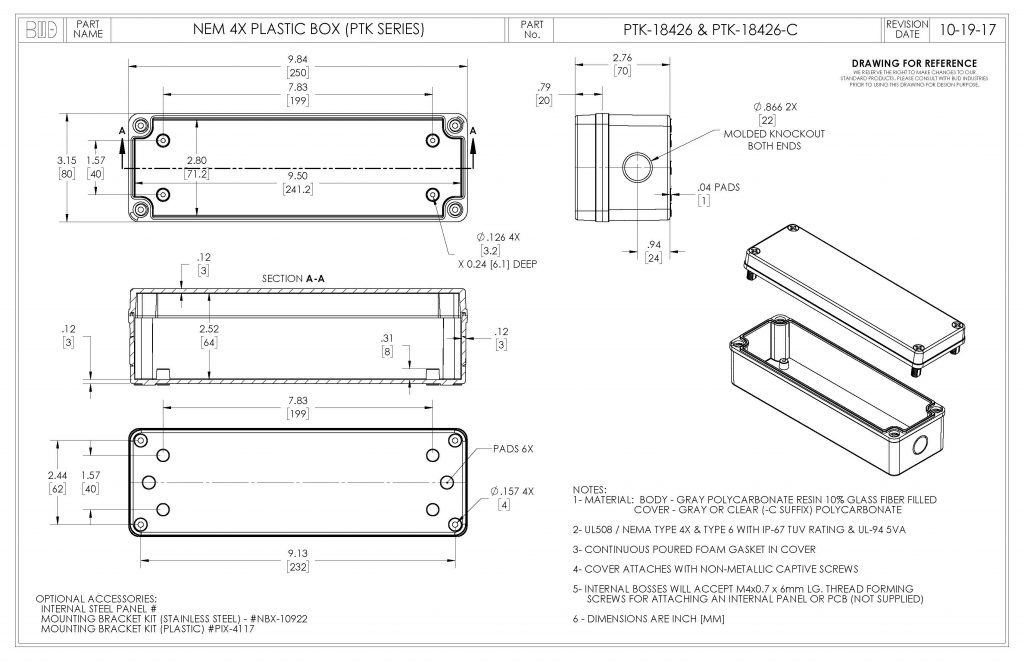

hbptk18426.pdf hbptk18426.dxf
