Fiberglass Box PTS-25312

Product Details

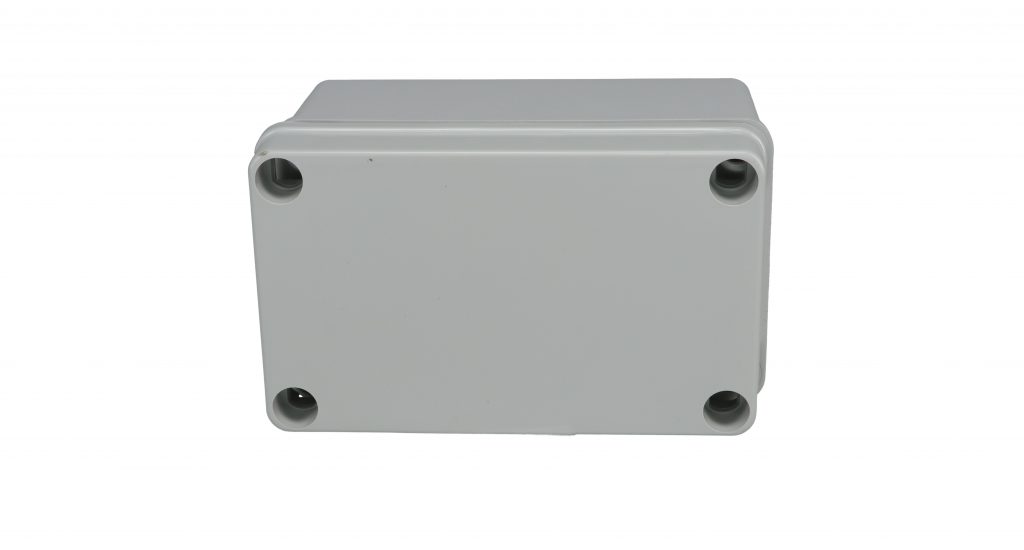

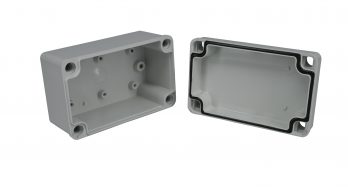

Model # PTS-25312 PTS Series Fiberglass Box
  • Body Made of Gray Polycarbonate (PC) resin 10% glass fiber filled
  • Cover made of Gray Polycarbonate (PC)
  • Outstanding Strength And High impact resistance
  • Non Metallic Cover screws
  • IP-67 TUV rating to keep out dust and water in extreme conditions (NEMA type 4X and 6).
  • UL508 / UL type 4X and 6 listed #E343339.
  • RoHs compliant
  • UL industrial controls listed
  • Non-chlorinated & non-brominated flame retardant With    UL-94 V0 rating.
  • Suitable for outdoor use with respect to exposure to Ultraviolet Light, Water Exposure and Immersion in accordance with UL 746C.
  • -40c to +95c extended exposure condition
  • Good chemical resistance
  • Continuous poured RAKU-PUR® Foam gasket
See Other Models Search by Size See Accessories Check Stock / Pricing
External Size L x W x D: 5.12" x 3.15" x 2.76"
Internal Size L x W x D: 4.73" x 2.76" x 1.97"
Weight: 0.88 lbs
Color: Light Gray
RoHS Certified: Always Compliant
Indoor / Outdoor: Outdoor (UV Stabilized)
Flammability Rating: UL94-V0
Door Flammability Rating: UL94-V0
Type of Plastic: Polycarbonate
Door Type of Plastic: Polycarbonate
UL Rating: UL508
Service Temperature Min: -40°C
Service Temperature Max: 95°C
NEMA Rating: NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 6
IP Rating: 67
Features: 10% Fiberglas Reinforced Plastic
Cover Style: Opaque, Screw Down Cover
Gasket Type: RAKU-PUR® Foam Gasket
hbpts25312.pdf hbpts25312.dxf
