PTS-25304

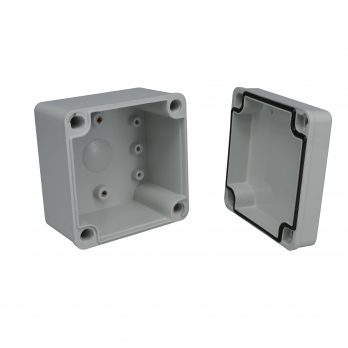

Fiberglass Box PTS-25304

Product Details

Model # PTS-25304 PTS Series Fiberglass Box
  • Body Made of Gray Polycarbonate (PC) resin 10% glass fiber filled
  • Cover made of Gray Polycarbonate (PC)
  • Outstanding Strength And High impact resistance
  • Non Metallic Cover screws
  • IP-67 TUV rating to keep out dust and water in extreme conditions (NEMA type 4X and 6).
  • UL508 / UL type 4X and 6 listed #E343339.
  • RoHs compliant
  • UL industrial controls listed
  • Non-chlorinated & non-brominated flame retardant With    UL-94 V0 rating.
  • Suitable for outdoor use with respect to exposure to Ultraviolet Light, Water Exposure and Immersion in accordance with UL 746C.
  • -40c to +95c extended exposure condition
  • Good chemical resistance
  • Continuous poured RAKU-PUR® Foam gasket
Compare Sizes and Models See Accessories Check Stock / Pricing
External Size L x W x D: 3.94" x 3.94" x 2.95"
Internal Size L x W x D: 2.75" x 2.75" x 2.17"
Weight: 0.88 lbs
Color: Light Gray
RoHS Certified: Always Compliant
Indoor / Outdoor: Outdoor (UV Stabilized)
Flammability Rating: UL94-V0
Door Flammability Rating: UL94-V0
Type of Plastic: Polycarbonate
Door Type of Plastic: Polycarbonate
UL Rating: UL508
Service Temperature Min: -40°C
Service Temperature Max: 95°C
NEMA Rating: NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 6
IP Rating: 67
Features: 10% Fiberglas Reinforced Plastic
Cover Style: Opaque, Screw Down Cover
Gasket Type: RAKU-PUR® Foam Gasket
hbpts25304.pdf hbpts25304.dxf

Drawing

OTHER MODELS IN THIS SERIES

Model # External Dimensions Internal Dimensions Cover Style
PTS-25342 11.02" x 11.02" x 5.07" 10.07" x 10.07" x 3.86" Opaque, Screw Down Cover
PTS-25342-C 11.02" x 11.02" x 5.07" 10.07" x 10.07" x 3.86" Clear, Screw Down Cover
PTS-25349 22.05" x 11.02" x 5.12" 21.09" x 10.07" x 3.86" Opaque, Screw Down Cover
PTS-25349-C 22.05" x 11.02" x 5.12" 21.09" x 10.07" x 3.86" Clear, Screw Down Cover
PTS-25340 11.02" x 7.48" x 5.04" 10.07" x 6.52" x 3.86" Opaque, Screw Down Cover
PTS-25340-C 11.02" x 7.48" x 5.04" 10.07" x 6.52" x 3.86" Clear, Screw Down Cover
PTS-25315 5.91" x 5.91" x 3.94" 4.33" x 4.33" x 3.15" Opaque, Screw Down Cover
PTS-25315-C 5.91" x 5.91" x 3.94" 4.33" x 4.33" x 3.15" Clear, Screw Down Cover
PTS-25328 7.87" x 5.91" x 3.94" 7.45" x 5.48" x 3.15" Opaque, Screw Down Cover
PTS-25328-C 7.87" x 5.91" x 3.94" 7.45" x 5.48" x 3.15" Clear, Screw Down Cover
PTS-25338 9.84" x 5.91" x 3.94" 9.41" x 5.48" x 3.15" Opaque, Screw Down Cover
PTS-25338-C 9.84" x 5.91" x 3.94" 9.41" x 5.48" x 3.15" Clear, Screw Down Cover
PTS-25319 6.69" x 5.51" x 3.74" 6.38" x 5.63" x 2.95" Opaque, Screw Down Cover
PTS-25319-C 6.69" x 5.51" x 3.74" 6.38" x 5.63" x 2.95" Clear, Screw Down Cover
PTS-25310 4.92" x 4.92" x 2.95" 3.54" x 3.53" x 2.17" Opaque, Screw Down Cover
PTS-25310-C 4.92" x 4.92" x 2.95" 3.54" x 3.53" x 2.17" Clear, Screw Down Cover
PTS-25304 3.94" x 3.94" x 2.95" 2.75" x 2.75" x 2.17" Opaque, Screw Down Cover
PTS-25304-C 3.94" x 3.94" x 2.95" 2.75" x 2.75" x 2.17" Clear, Screw Down Cover
PTS-25317 6.38" x 3.23" x 3.35" 6.02" x 2.87" x 2.76" Opaque, Screw Down Cover
PTS-25317-C 6.38" x 3.23" x 3.35" 6.02" x 2.87" x 2.76" Clear, Screw Down Cover
PTS-25302 3.15" x 3.15" x 2.36" 2.44" x 2.44" x 1.77" Opaque, Screw Down Cover
PTS-25302-C 3.15" x 3.15" x 2.36" 2.44" x 2.44" x 1.77" Clear, Screw Down Cover
PTS-25308 4.33" x 3.15" x 2.76" 3.15" x 2.44" x 1.97" Opaque, Screw Down Cover
PTS-25308-C 4.33" x 3.15" x 2.76" 3.15" x 2.44" x 1.97" Clear, Screw Down Cover
PTS-25312 5.12" x 3.15" x 2.76" 4.73" x 2.76" x 1.97" Opaque, Screw Down Cover
PTS-25312-C 5.12" x 3.15" x 2.76" 4.73" x 2.76" x 1.97" Clear, Screw Down Cover
PTS-25323-C 7.09" x 3.15" x 3.35" 6.70" x 2.76" x 1.97" Clear, Screw Down Cover
PTS-25323 7.09" x 3.15" x 3.35" 6.70" x 2.76" x 1.97" Opaque, Screw Down Cover
PTS-25301 2.56" x 1.97" x 2.17" 2.05" x 1.46" x 1.57" Opaque, Screw Down Cover
PTS-25301-C 2.56" x 1.97" x 2.17" 2.05" x 1.46" x 1.57" Clear, Screw Down Cover
