SNB-3739-SS

Stainless Steel Box with Keyed Quarter Turn Latch SNB-3739-SS
  • SNB Stainless Steel Box

Product Details

Model # SNB-3739-SS SNB Series Stainless Steel Box
  • Stainless steel construction
  • Hinged cover clamps to the base with keyed quarter turn latch for a watertight seal
  • External mounting brackets allow box to be mounted on a wall or panel without having to remove the cover and exposing internal components to the environment
  • Bonding studs for grounding are provided on base and door
  • Internal panel and hardware included
  • UL Listed Type 1, 2, 4, 4X and 12.  IP65 and IP66 ratings
  • Easily machined and modified to your particular requirements
  • Finish: Smooth Gray powder coat, Internal Panel – Clear Zinc plate

        New Design feature

  • Continuous gasket
Compare Sizes and Models See Accessories Check Stock / Pricing
External Size L x W x D: 7.87" x 7.87" x 3.98"
Internal Size L x W x D: 6.28" x 6.28" x 3.40"
Weight: 4.6 lbs
Color: Natural
RoHS Certified: Always Compliant
Features: Stainless Steel
NEMA Rating: NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13
IP Rating: 66
Cover Style: Opaque, Hinged Cover
hb3730ss.pdf hb3730ss.dxf

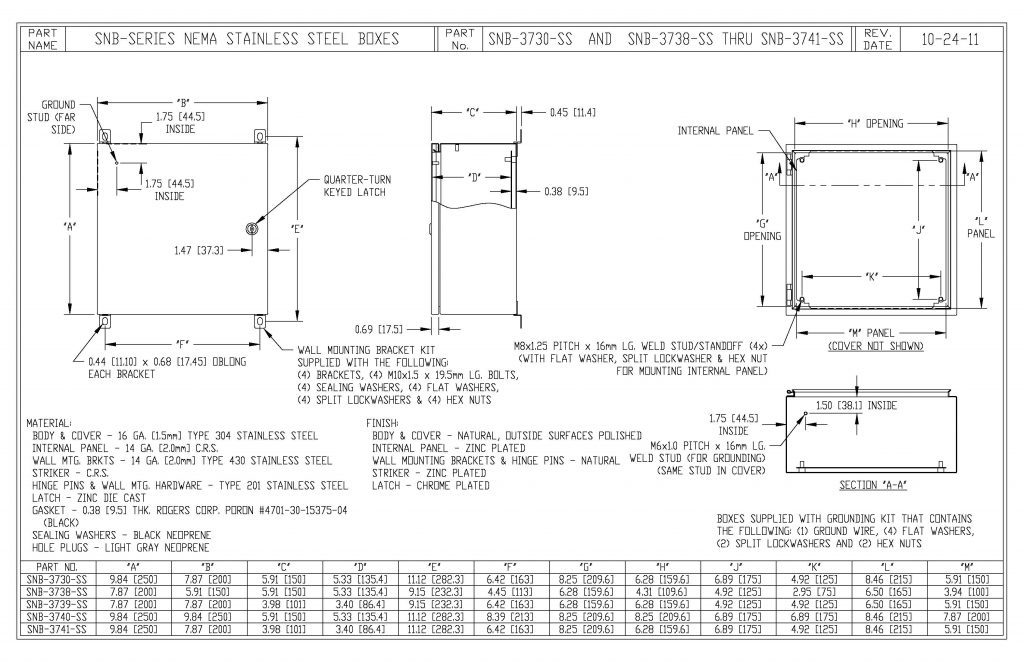

Drawing

OTHER MODELS IN THIS SERIES

Model # External Dimensions Internal Dimensions
SNB-3733-SS 11.81" x 11.81" x 5.91" 11.8111.815.91 10.22" x 10.22" x 5.33"
SNB-3734-SS 11.81" x 11.81" x 7.87" 11.8111.817.87 10.22" x 10.22" x 7.29"
SNB-3731-SS 11.81" x 9.84" x 5.91" 11.819.845.91 10.22" x 8.25" x 5.33"
SNB-3732-SS 11.81" x 9.84" x 7.87" 11.819.847.87 10.22" x 8.25" x 7.29"
SNB-3735-SS 15.75" x 11.81" x 5.91" 15.7511.815.91 14.16" x 10.22" x 5.33"
SNB-3736-SS 15.75" x 11.81" x 7.87" 15.7511.817.87 14.16" x 10.22" x 7.29"
SNB-3743-SS 15.75" x 13.98" x 7.87" 15.7513.987.87 14.16" x 12.38" x 7.29"
SNB-3737-SS 15.75" x 15.75" x 7.87" 15.7515.757.87 14.16" x 14.16" x 7.29"
SNB-3746-SS 20.00" x 16.00" x 8.00" 20.0016.008.00 18.41" x 14.41" x 7.73"
SNB-3749-SS 20.00" x 20.00" x 12.00" 20.0020.0012.00 18.41" x 18.41" x 11.73"
SNB-3751-SS 24.00" x 16.00" x 8.00" 24.0016.008.00 22.41" x 14.41" x 7.73"
SNB-3752-SS 24.00" x 20.00" x 8.00" 24.0020.008.00 22.41" x 18.41" x 7.73"
SNB-3754-SS 24.00" x 24.00" x 10.00" 24.0024.0010.00 22.41" x 22.41" x 9.73"
SNB-3738-SS 7.87" x 5.91" x 5.91" 7.875.915.91 6.28" x 4.31" x 5.33"
SNB-3739-SS 7.87" x 7.87" x 3.98" 7.877.873.98 6.28" x 6.28" x 3.40"
SNB-3741-SS 9.84" x 7.87" x 3.98" 9.847.873.98 8.25" x 6.28" x 3.40"
SNB-3730-SS 9.84" x 7.87" x 5.91" 9.847.875.91 8.25" x 6.28" x 5.33"
SNB-3740-SS 9.84" x 9.84" x 5.91" 9.849.845.91 8.25" x 8.25" x 5.33"
