Stainless Steel Box with Keyed Quarter Turn Latch SNB-3749-SS

Model # SNB-3749-SS SNB Series Stainless Steel Box

Stainless steel construction
Hinged cover clamps to the base with keyed quarter turn latch for a watertight seal
External mounting brackets allow box to be mounted on a wall or panel without having to remove the cover and exposing internal components to the environment
Bonding studs for grounding are provided on base and door
Internal panel and hardware included
UL Listed Type 1, 2, 4, 4X and 12. IP65 and IP66 ratings
Easily machined and modified to your particular requirements
Finish: Natural Stainless steel, Internal Panel – Clear Zinc plate

New Design feature

- Continuous gasket

Check Stock / Pricing Request Modifications Compare Sizes and Models See Accessories

External Size L x W x D: 20.00" x 20.00" x 12.00"

Internal Size L x W x D: 18.41" x 18.41" x 11.73"

Weight: 29.4 lbs

Color: Natural

RoHS Certified: Always Compliant

Features: Stainless Steel

NEMA Rating: NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13

IP Rating: IP66

Cover Style: Opaque, Hinged Cover

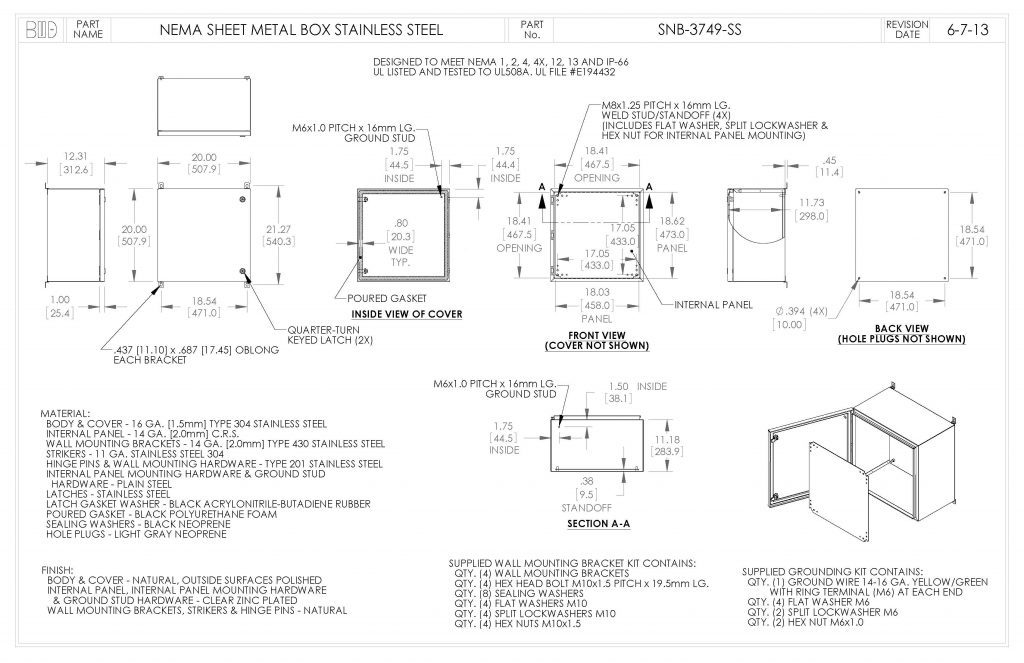

Drawing

SNB-3749-SS Dimensions

OTHER MODELS IN THIS SERIES

Model #	External Dimensions	Internal Dimensions
SNB-3733-SS	11.81" x 11.81" x 5.91" 11.8111.815.91	10.22" x 10.22" x 5.33"
SNB-3734-SS	11.81" x 11.81" x 7.87" 11.8111.817.87	10.22" x 10.22" x 7.29"
SNB-3731-SS	11.81" x 9.84" x 5.91" 11.819.845.91	10.22" x 8.25" x 5.33"
SNB-3732-SS	11.81" x 9.84" x 7.87" 11.819.847.87	10.22" x 8.25" x 7.29"
SNB-3735-SS	15.75" x 11.81" x 5.91" 15.7511.815.91	14.16" x 10.22" x 5.33"
SNB-3736-SS	15.75" x 11.81" x 7.87" 15.7511.817.87	14.16" x 10.22" x 7.29"
SNB-3743-SS	15.75" x 13.98" x 7.87" 15.7513.987.87	14.16" x 12.38" x 7.29"
SNB-3737-SS	15.75" x 15.75" x 7.87" 15.7515.757.87	14.16" x 14.16" x 7.29"
SNB-3746-SS	20.00" x 16.00" x 8.00" 20.0016.008.00	18.41" x 14.41" x 7.73"
SNB-3749-SS	20.00" x 20.00" x 12.00" 20.0020.0012.00	18.41" x 18.41" x 11.73"
SNB-3751-SS	24.00" x 16.00" x 8.00" 24.0016.008.00	22.41" x 14.41" x 7.73"
SNB-3752-SS	24.00" x 20.00" x 8.00" 24.0020.008.00	22.41" x 18.41" x 7.73"
SNB-3754-SS	24.00" x 24.00" x 10.00" 24.0024.0010.00	22.41" x 22.41" x 9.73"
SNB-3738-SS	7.87" x 5.91" x 5.91" 7.875.915.91	6.28" x 4.31" x 5.33"
SNB-3739-SS	7.87" x 7.87" x 3.98" 7.877.873.98	6.28" x 6.28" x 3.40"
SNB-3741-SS	9.84" x 7.87" x 3.98" 9.847.873.98	8.25" x 6.28" x 3.40"
SNB-3730-SS	9.84" x 7.87" x 5.91" 9.847.875.91	8.25" x 6.28" x 5.33"
SNB-3740-SS	9.84" x 9.84" x 5.91" 9.849.845.91	8.25" x 8.25" x 5.33"
