BSR-44-BT

BSR-44-BT BudStackRack
3 Videos

Product Details

Model # BSR-44-BT BSR Series BudStackRack
  • Ships flat in a single carton (18 lb. shipping weight with dimension 28” x 22” x 2”)
  • Ships unassembled with all necessary components and hardware
  • Quick and easy assembly with a #3 Philips screw driver in under 15 minutes
  • 16-gauge galvanized steel with black textured powder-coat finish
  • Can be used either horizontally 10U (17.5-inch panel space with 24.5-inch depth) or vertically 12 U (21-inch panel space with 21-inch depth)
  • Depending on how the rack is positioned, the dimensions (W x H x D) are either 19.0 x 42.0 x 24.5 inches or 19.0 x 49.0 x 21.0 inches
  • EIA-spaced mounting holes incorporated into the front, back, top and bottom for flexible component mounting

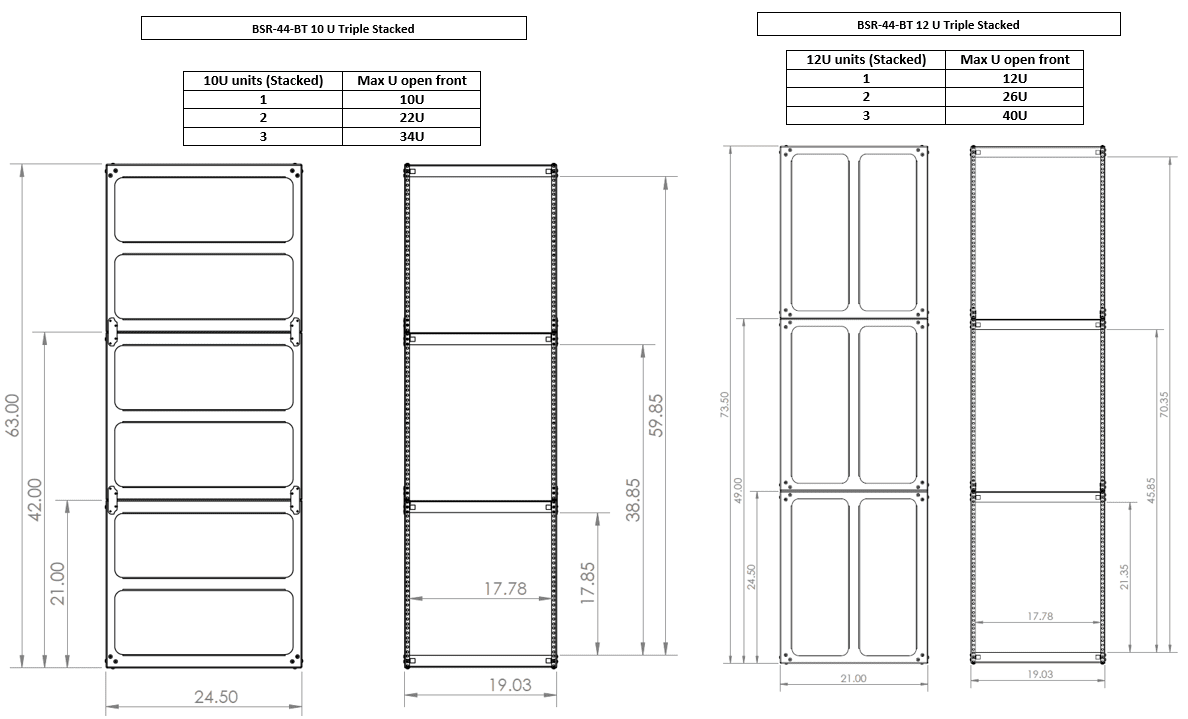

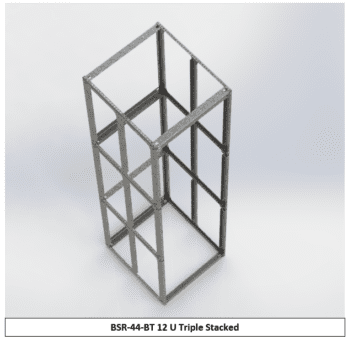

  • Multiple units can be stacked together easily and attached vertically to create an uninterrupted panel space
  • When racks are stacked, the user can gain 1 to 2 additional U mounting holes in the front where cross beams are omitted
  • The rack can be daisy-chained horizontally to create an add-a-rack situation for cross rack wiring
  • Open design allows for maximum air flow
  • Additional adjustable component mounting brackets are included for equipment support
  • 300 lb. maximum weight limit for fully supported (4 points) 19-inch EIA rail-mounted equipment (75-inch max. height)
  • Included Accessory brackets provide additional support for all accessories
  • BSR-44-BT product video
  • Short video on installing the clip nuts
  • BSR-44-BT-BudStackRack-assembly-instructions
  • Instruction Video
  • BSR-44-BT-stacking-instructions
  • Stacking Video



 Compare Sizes and ModelsSee Accessories Request ModificationsCheck Stock / Pricing
External Size H x W x D: 21.00" x 19.00" x 24.50"
Internal Size H x W x D: 17.50" x 17.85" x 23.00"
Weight: 12 lbs
Color: Black Powder Coat
EIA Width: 19 Inches
Panel Space Width: 19
Panel Space Height: 21
Clear Inside Width: 18
Clear Inside Depth: 23.5
Number of U: 10
Assembly: Knockdown
Ships Knockdown: Yes
BSR-44-BT.pdf BSR-44-BT.dxffile/d/1SRVPfN-XaaUsb_jDR89kcRpZs8m7MJNM/view?usp=sharing

Drawing

BSR-44-BT Dimensions

OTHER MODELS IN THIS SERIES

Model # External Dimensions Internal Dimensions
BSR-44-BT 21.00" x 19.00" x 24.50" 21.0019.0024.50 17.50" x 17.85" x 23.00"
