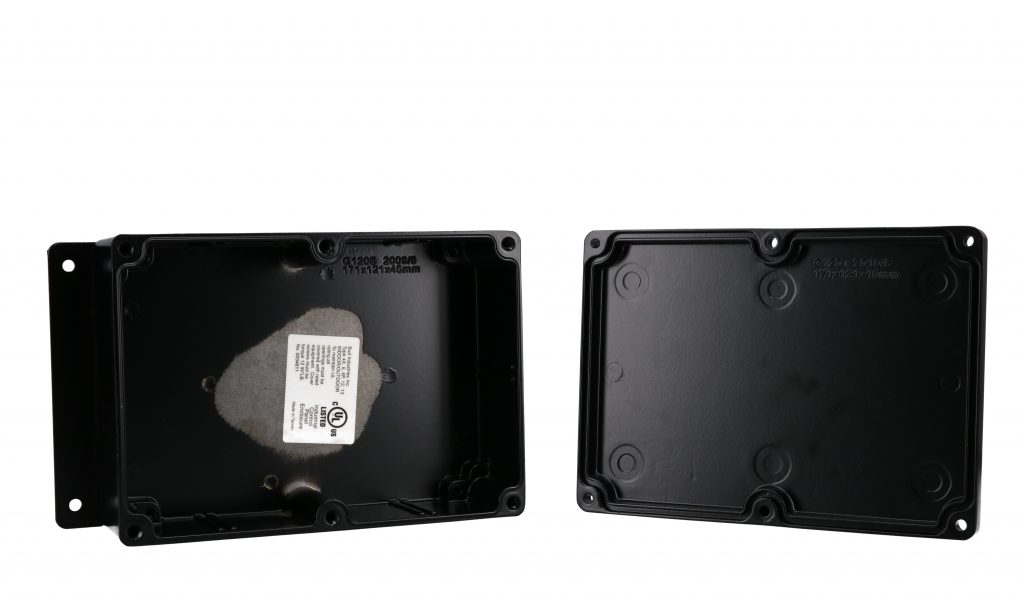

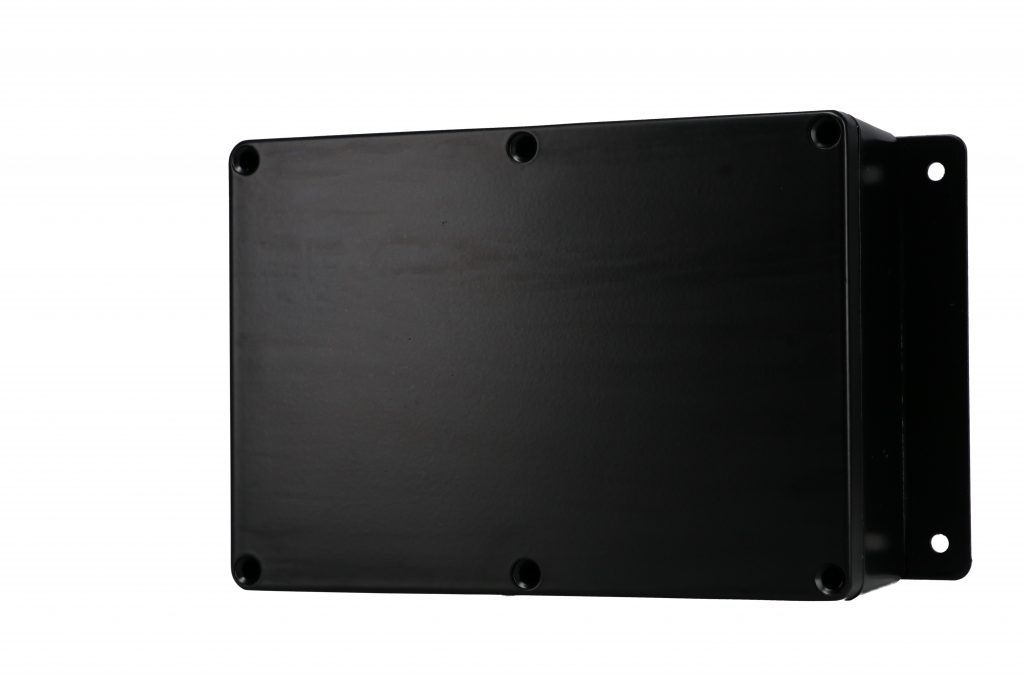

Aluminum Enclosure with Mounting Flanges Black AN-2806-AB

- Direct replacement to AN-28xx series
- 0.09″ welded mounting flanges allow the box to be mounted on a wall or panel without having to remove the cover and exposing internal components to the environment
- Pre molded continuous silicon gasket with outstanding performance
- Rugged #ADC-12 alloy die cast aluminum box
- Available NEMA 6P (recommended powder coated Black for extra corrosion protection)
- IP 67 tested by TUV
- Test results exceeded the requirements in respect to IEC60529 IP68 conditions (UL Type 6P tested under 6’ of water for 24 hours)
- Type 4X,6,6P,12,13 as listed under UL file #E194432
- Cover attaches with stainless screws torqued at 12 in-lb.
- Easily machined and modified to your particular requirements
- Offers EMC protection

Model # | External Dimensions | Internal Dimensions | Mounting Style |
---|---|---|---|

AN-2823-A | 10.24" x 6.30" x 3.56" | 9.84" x 5.93" x 3.39" | Welded Mounting Flanges |

AN-2823-AB | 10.24" x 6.30" x 3.56" | 9.84" x 5.93" x 3.39" | Welded Mounting Flanges |

AN-2810-A | 6.25" x 6.25" x 3.99" | 5.88" x 5.88" x 3.82" | Welded Mounting Flanges |

AN-2810-AB | 6.25" x 6.25" x 3.99" | 5.88" x 5.88" x 3.82" | Welded Mounting Flanges |

AN-2807-A | 8.75" x 5.75" x 2.17" | 8.27" x 5.29" x 1.95" | Welded Mounting Flanges |

AN-2807-AB | 8.75" x 5.75" x 2.17" | 8.27" x 5.29" x 1.95" | Welded Mounting Flanges |

AN-2808-A | 8.75" x 5.75" x 3.25" | 8.27" x 5.29" x 3.02" | Welded Mounting Flanges |

AN-2808-AB | 8.75" x 5.75" x 3.25" | 8.27" x 5.29" x 3.02" | Welded Mounting Flanges |

AN-2857-A | 8.75" x 5.75" x 2.17" | 8.27" x 5.29" x 1.95" | Molded Mounting Flanges |

AN-2857-AB | 8.75" x 5.75" x 2.17" | 8.27" x 5.29" x 1.95" | Molded Mounting Flanges |

AN-2858-A | 8.75" x 5.75" x 3.25" | 8.27" x 5.29" x 3.02" | Molded Mounting Flanges |

AN-2858-AB | 8.75" x 5.75" x 3.25" | 8.27" x 5.29" x 3.02" | Molded Mounting Flanges |

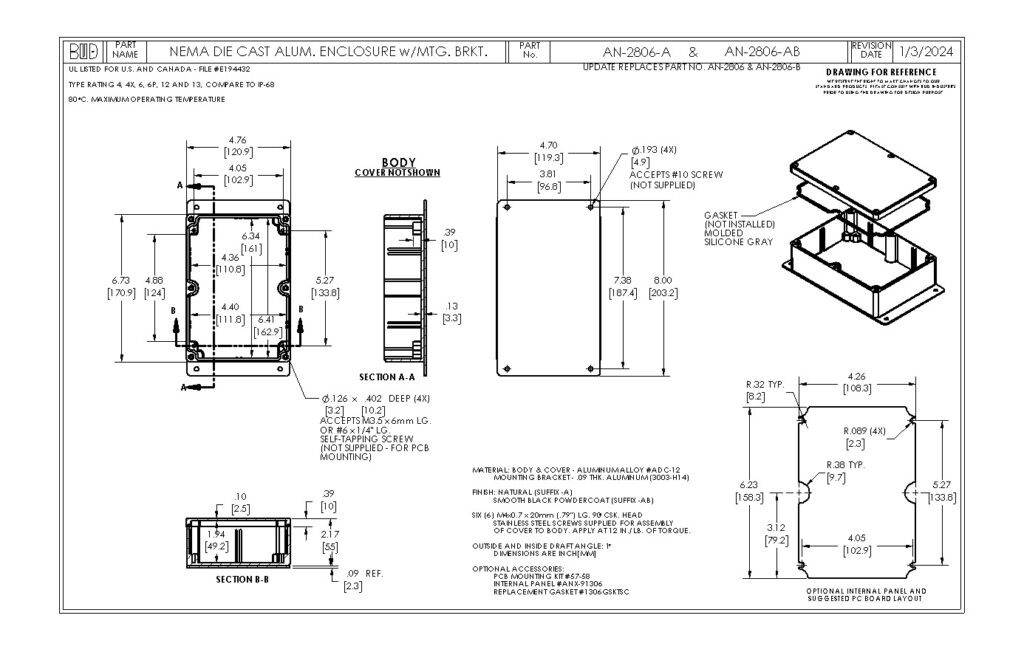

AN-2806-A | 6.73" x 4.76" x 2.17" | 6.27" x 4.30" x 1.94" | Welded Mounting Flanges |

AN-2806-AB | 6.73" x 4.76" x 2.17" | 6.27" x 4.30" x 1.94" | Welded Mounting Flanges |

AN-2856-A | 6.73" x 4.76" x 2.17" | 6.27" x 4.30" x 1.94" | Molded Mounting Flanges |

AN-2856-AB | 6.73" x 4.76" x 2.17" | 6.27" x 4.30" x 1.94" | Molded Mounting Flanges |

AN-2809-A | 4.75" x 4.75" x 3.99" | 4.38" x 4.38" x 3.82" | Welded Mounting Flanges |

AN-2809-AB | 4.75" x 4.75" x 3.99" | 4.38" x 4.38" x 3.82" | Welded Mounting Flanges |

AN-2822-A | 7.87" x 4.72" x 2.95" | 7.56" x 4.43" x 2.81" | Welded Mounting Flanges |

AN-2822-AB | 7.87" x 4.72" x 2.95" | 7.56" x 4.43" x 2.81" | Welded Mounting Flanges |

AN-2872-A | 7.87" x 4.72" x 2.95" | 7.64" x 4.49" x 2.72" | Molded Mounting Flanges |

AN-2872-AB | 7.87" x 4.72" x 2.95" | 7.64" x 4.49" x 2.72" | Molded Mounting Flanges |

AN-2805-A | 5.83" x 4.25" x 2.95" | 5.34" x 3.76" x 2.71" | Welded Mounting Flanges |

AN-2805-AB | 5.83" x 4.25" x 2.95" | 5.34" x 3.76" x 2.71" | Welded Mounting Flanges |

AN-2855-A | 5.83" x 4.25" x 2.95" | 5.34" x 3.76" x 2.71" | Molded Mounting Flanges |

AN-2855-AB | 5.83" x 4.25" x 2.95" | 5.34" x 3.76" x 2.71" | Molded Mounting Flanges |

AN-2866-A | 6.30" x 3.94" x 2.36" | 6.06" x 3.70" x 2.13" | Molded Mounting Flanges |

AN-2866-AB | 6.30" x 3.94" x 2.36" | 6.06" x 3.70" x 2.13" | Molded Mounting Flanges |

AN-2867-A | 6.30" x 3.94" x 3.19" | 6.06" x 3.70" x 2.95" | Molded Mounting Flanges |

AN-2867-AB | 6.30" x 3.94" x 3.19" | 6.06" x 3.70" x 2.95" | Molded Mounting Flanges |

AN-2816-A | 6.29" x 3.93" x 2.37" | 5.98" x 3.62" x 2.13" | Welded Mounting Flanges |

AN-2816-AB | 6.29" x 3.93" x 2.37" | 5.98" x 3.62" x 2.13" | Welded Mounting Flanges |

AN-2817-A | 6.29" x 3.93" x 3.19" | 5.98" x 3.62" x 2.95" | Welded Mounting Flanges |

AN-2817-AB | 6.29" x 3.93" x 3.19" | 5.98" x 3.62" x 2.95" | Welded Mounting Flanges |

AN-2854-A | 4.60" x 3.61" x 2.17" | 4.01" x 3.03" x 1.96" | Molded Mounting Flanges |

AN-2854-AB | 4.60" x 3.61" x 2.17" | 4.01" x 3.03" x 1.96" | Molded Mounting Flanges |

AN-2804-A | 4.53" x 3.54" x 2.17" | 4.01" x 3.03" x 1.96" | Welded Mounting Flanges |

AN-2804-AB | 4.53" x 3.54" x 2.17" | 4.01" x 3.03" x 1.96" | Welded Mounting Flanges |

AN-2821-A | 6.89" x 3.15" x 2.36" | 6.61" x 2.86" x 2.22" | Welded Mounting Flanges |

AN-2821-AB | 6.89" x 3.15" x 2.36" | 6.61" x 2.86" x 2.22" | Welded Mounting Flanges |

AN-2863-A | 4.92" x 3.15" x 1.57" | 4.69" x 2.91" x 1.34" | Molded Mounting Flanges |

AN-2863-AB | 4.92" x 3.15" x 1.57" | 4.69" x 2.91" x 1.34" | Molded Mounting Flanges |

AN-2864-A | 4.92" x 3.15" x 2.24" | 4.69" x 2.91" x 2.01" | Molded Mounting Flanges |

AN-2864-AB | 4.92" x 3.15" x 2.24" | 4.69" x 2.91" x 2.01" | Molded Mounting Flanges |

AN-2813-A | 4.90" x 3.14" x 1.59" | 4.60" x 2.83" x 1.36" | Welded Mounting Flanges |

AN-2813-AB | 4.90" x 3.14" x 1.59" | 4.60" x 2.83" x 1.36" | Welded Mounting Flanges |

AN-2814-A | 4.90" x 3.14" x 2.26" | 4.60" x 2.83" x 2.03" | Welded Mounting Flanges |

AN-2814-AB | 4.90" x 3.14" x 2.26" | 4.60" x 2.83" x 2.03" | Welded Mounting Flanges |

AN-2819-A | 3.13" x 2.93" x 2.05" | 2.85" x 2.65" x 1.91" | Welded Mounting Flanges |

AN-2819-AB | 3.13" x 2.93" x 2.05" | 2.85" x 2.65" x 1.91" | Welded Mounting Flanges |

AN-2802-A | 4.55" x 2.58" x 1.18" | 4.18" x 2.15" x 0.98" | Welded Mounting Flanges |

AN-2802-AB | 4.55" x 2.58" x 1.18" | 4.18" x 2.15" x 0.98" | Welded Mounting Flanges |

AN-2803-A | 4.55" x 2.58" x 2.17" | 4.03" x 2.07" x 1.95" | Welded Mounting Flanges |

AN-2803-AB | 4.55" x 2.58" x 2.17" | 4.03" x 2.07" x 1.95" | Welded Mounting Flanges |

AN-2852-A | 4.55" x 2.58" x 1.18" | 4.18" x 2.15" x 0.98" | Molded Mounting Flanges |

AN-2852-AB | 4.55" x 2.58" x 1.18" | 4.18" x 2.15" x 0.98" | Molded Mounting Flanges |

AN-2853-A | 4.55" x 2.58" x 2.17" | 4.03" x 2.07" x 1.96" | Molded Mounting Flanges |

AN-2853-AB | 4.55" x 2.58" x 2.17" | 4.03" x 2.07" x 1.96" | Molded Mounting Flanges |

AN-2812-A | 3.85" x 2.52" x 1.35" | 3.61" x 2.28" x 1.12" | Welded Mounting Flanges |

AN-2812-AB | 3.85" x 2.52" x 1.35" | 3.61" x 2.28" x 1.12" | Welded Mounting Flanges |

AN-2815-A | 5.91" x 2.52" x 1.45" | 5.63" x 2.24" x 1.13" | Welded Mounting Flanges |

AN-2815-AB | 5.91" x 2.52" x 1.45" | 5.63" x 2.24" x 1.13" | Welded Mounting Flanges |

AN-2801-A | 2.52" x 2.28" x 1.38" | 2.19" x 1.95" x 1.18" | Welded Mounting Flanges |

AN-2801-AB | 2.52" x 2.28" x 1.38" | 2.19" x 1.95" x 1.18" | Welded Mounting Flanges |

AN-2851-A | 2.52" x 2.28" x 1.38" | 2.19" x 1.95" x 1.18" | Molded Mounting Flanges |

AN-2851-AB | 2.52" x 2.28" x 1.38" | 2.19" x 1.95" x 1.18" | Molded Mounting Flanges |

AN-2820-A | 4.04" x 2.07" x 1.00" | 3.79" x 1.80" x 0.87" | Welded Mounting Flanges |

AN-2820-AB | 4.04" x 2.07" x 1.00" | 3.79" x 1.80" x 0.87" | Welded Mounting Flanges |

AN-2811-A | 1.97" x 1.77" x 1.18" | 1.78" x 1.58" x 0.98" | Welded Mounting Flanges |

AN-2811-AB | 1.97" x 1.77" x 1.18" | 1.78" x 1.58" x 0.98" | Welded Mounting Flanges |

AN-2818-A | 2.19" x 1.61" x 1.22" | 1.91" x 1.34" x 1.10" | Welded Mounting Flanges |

AN-2818-AB | 2.19" x 1.61" x 1.22" | 1.91" x 1.34" x 1.10" | Welded Mounting Flanges |

AN-2800-A | 3.54" x 1.42" x 1.18" | 3.17" x 1.04" x 0.97" | Welded Mounting Flanges |

AN-2800-AB | 3.54" x 1.42" x 1.18" | 3.17" x 1.04" x 0.97" | Welded Mounting Flanges |

AN-2850-A | 3.54" x 1.42" x 1.18" | 3.17" x 1.04" x 0.97" | Molded Mounting Flanges |

AN-2850-AB | 3.54" x 1.42" x 1.18" | 3.17" x 1.04" x 0.97" | Molded Mounting Flanges |
