AN-2851-A

Aluminum Enclosure with Mounting Flanges AN-2851-A

Product Details

Model # AN-2851-A AN-A Series Enclosure + Mounting Flanges
  • Direct replacement to AN-28xx series
  • Molded external mounting brackets allow the box to be mounted on a wall or panel without having to remove the cover and exposing internal components to the environment
  • Pre molded continuous silicon gasket with outstanding performance
  • Rugged #ADC-12 alloy die cast aluminum box
  • Available NEMA 6 (natural finish)
  • IP 67 tested by TUV
  • Test results exceeded the requirements in respect to IEC60529 IP68 conditions
  • Type 4X,6,12,13 as listed under UL file #E194432
  • Cover attaches with stainless screws, 3M (torque at 12 in-lb.)
  • Easily machined and modified to your particular requirements
  • Offers EMC protection
See Other Models Search by Size Check Stock / Pricing
External Size L x W x D: 2.52" x 2.28" x 1.38"
Internal Size L x W x D: 2.19" x 1.95" x 1.18"
Weight: 0.325 lbs
Color: Natural
RoHS Certified: Always Compliant
NEMA Rating: NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 6, NEMA 12, NEMA 13
IP Rating: 68
Mounting Style: Molded Mounting Flanges
Cover Style: Opaque, Screw Down Cover
Gasket Type: Silicone
hban2851a.pdf hban2851a.dxf

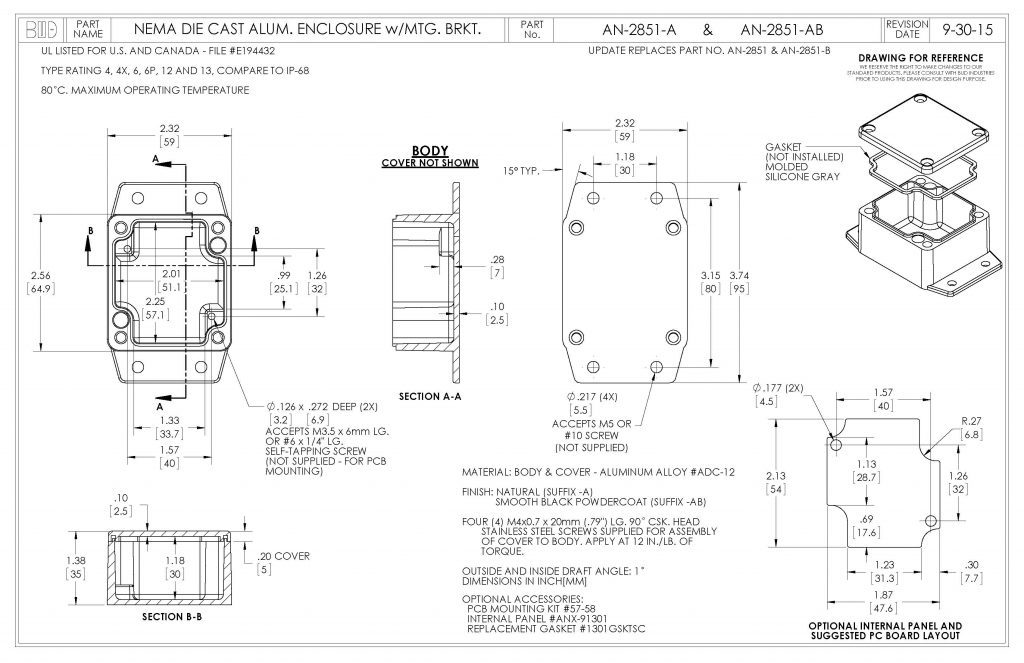

Drawing
