AN-2817-AB

Aluminum Enclosure with Mounting Flanges Black AN-2817-AB

Product Details

Model # AN-2817-AB AN-A Series Enclosure + Mounting Flanges
  • Direct replacement to AN-28xx series
  • 0.09″ welded mounting flanges allow the box to be mounted on a wall or panel without having to remove the cover and exposing internal components to the environment
  • Pre molded continuous silicon gasket with outstanding performance
  • Rugged #ADC-12 alloy die cast aluminum box
  • Available NEMA 6P (recommended powder coated black for extra corrosion protection)
  • IP 67 tested by TUV
  • Test results exceeded the requirements in respect to IEC60529 IP68 conditions (UL Type 6P tested under 6’ of water for 24 hours)
  • Type 4X,6,6P,12,13 as listed under UL file #E194432
  • Cover attaches with stainless screws torqued at 12 in-lb.
  • Easily machined and modified to your particular requirements
  • Offers EMC protection
See Other Models Search by Size Check Stock / Pricing
External Size L x W x D: 6.29" x 3.93" x 3.19"
Internal Size L x W x D: 5.98" x 3.62" x 2.95"
Weight: 2.09 lbs
Color: Black Powder Coat
RoHS Certified: Always Compliant
Gasket Type: Silicone
NEMA Rating: NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13
IP Rating: 68
Mounting Style: Welded Mounting Flanges
Cover Style: Opaque, Screw Down Cover
hban2817a.pdf hban2817a.dxf

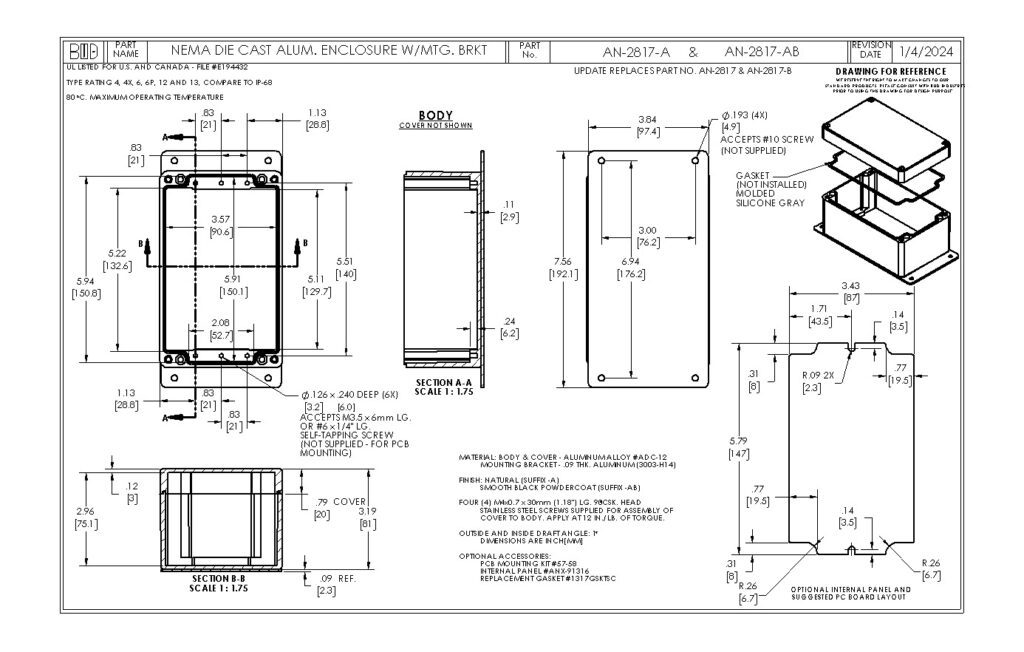

Drawing
