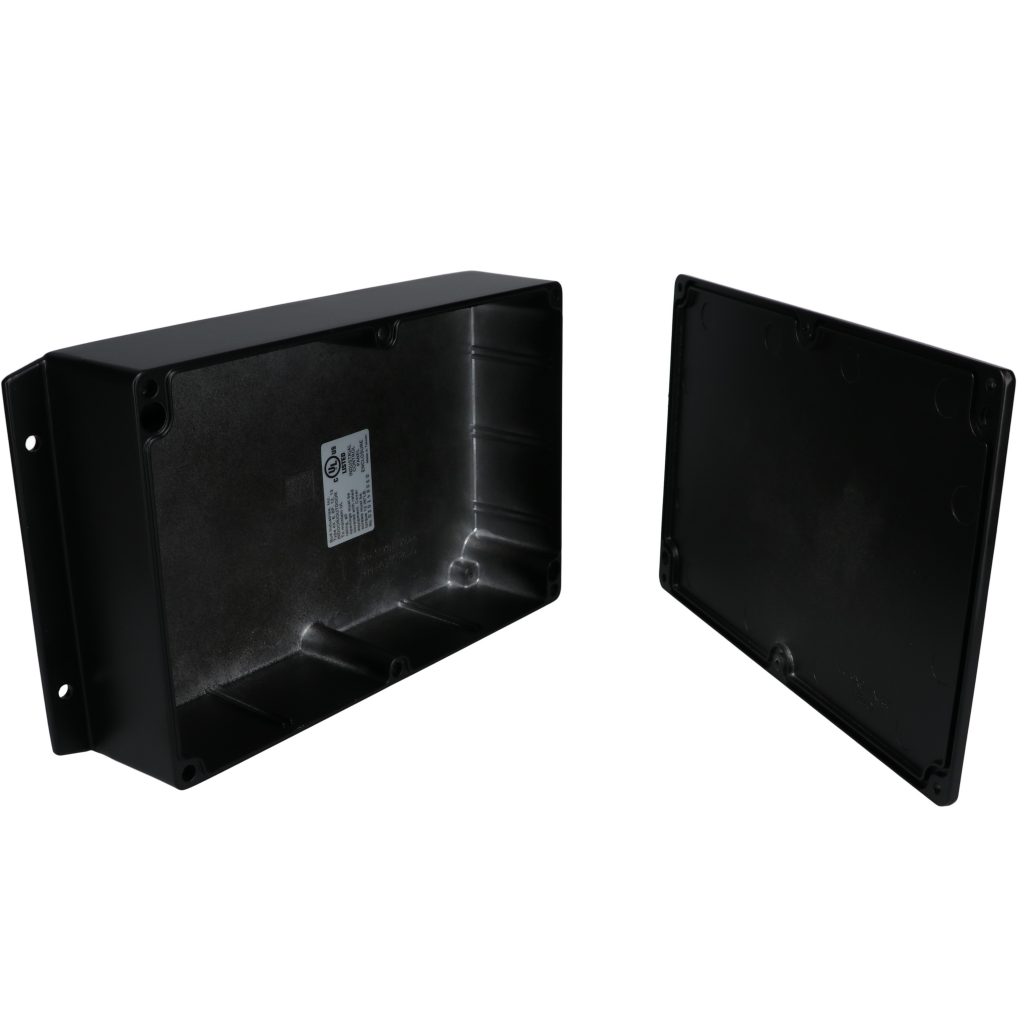

Aluminum Enclosure with Mounting Flanges Black AN-2857-AB

Product Details

Model # AN-2857-AB AN-A Series Enclosure + Mounting Flanges
  • Direct replacement to AN-28xx series
  • Molded external mounting brackets allow the box to be mounted on a wall or panel without having to remove the cover and exposing internal components to the environment
  • Pre molded continuous silicon gasket with outstanding performance.
  • Rugged #ADC-12 alloy die cast aluminum box
  • Available NEMA 6 (natural finish) & 6P (recommended powder coated black for extra corrosion protection)
  • IP 67 tested by TUV
  • Test results exceeded the requirements in respect to IEC60529 IP68 conditions (UL Type 6P tested under 6’ of water for 24 hours)
  • Type 4X,6,6P,12,13 as listed under UL file #E194432
  • Cover attaches with stainless screws (torque at 12 in-lb)
  • Easily machined and modified to your particular requirements
  • Offers EMC protection
See Other Models Search by Size Check Stock / Pricing
External Size L x W x D: 8.75" x 5.75" x 2.17"
Internal Size L x W x D: 8.27" x 5.29" x 1.95"
Weight: 2.07 lbs
Color: Black Powder Coat
RoHS Certified: Always Compliant
NEMA Rating: NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13
IP Rating: 68
Mounting Style: Molded Mounting Flanges
Cover Style: Opaque, Screw Down Cover
Gasket Type: Silicone
hban2857a.pdf hban2857a.dxf
