ANS-3817

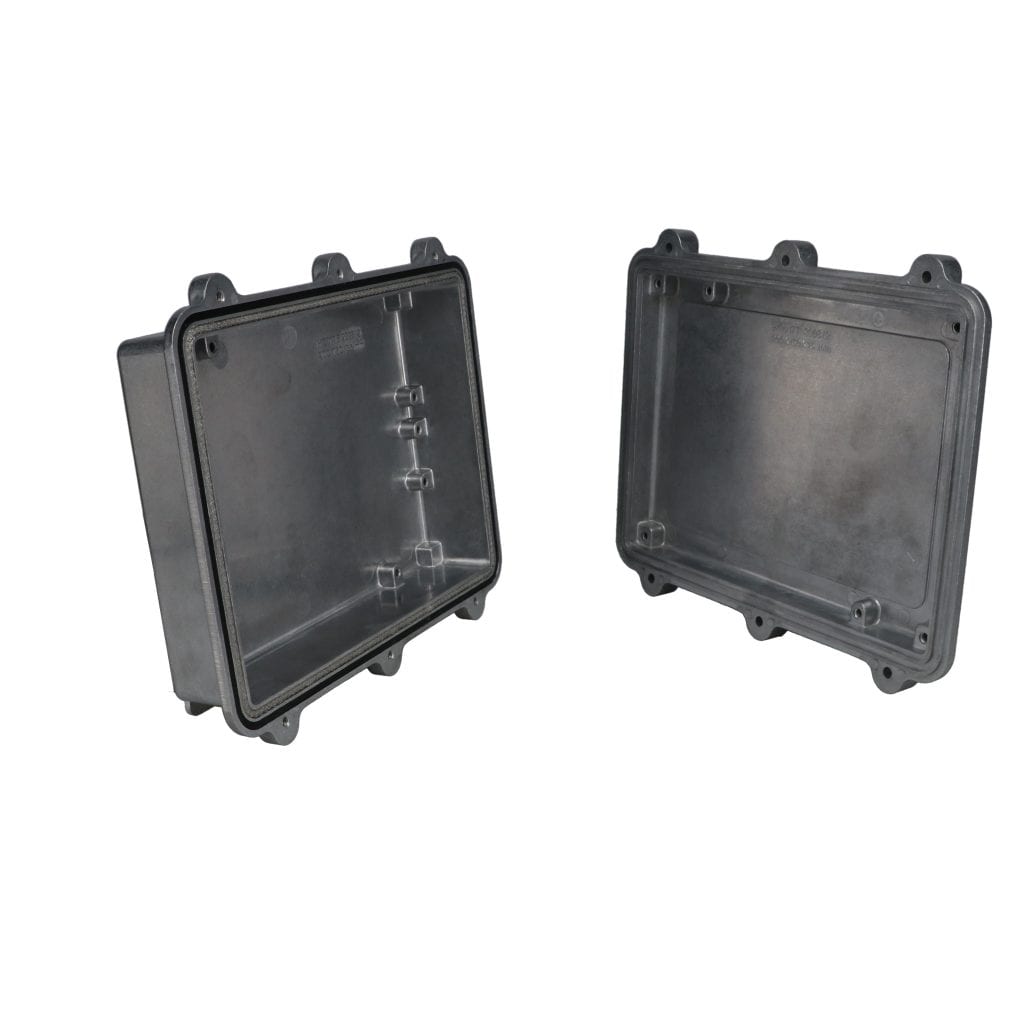

Aluminum Enclosure with EMI/RFI Shielding Gasket ANS-3817
  • Aluminum Enclosure with EMI/RFI Shielding Gasket

Product Details

Model # ANS-3817 ANS Series EMI Enclosure with Shielded Gasket
  • Rugged #ADC-12 die cast aluminum alloy.
  • Thick wall (0.098 inch, 2.5 mm) construction provides strength and rigidity for heavy duty applications.
  • One-piece molded outer Silicone gasket provides reliable and long lasting sealing to meet NEMA 4X and IP67 requirements.
  • Second wire-mesh with sponge rubber gasket provides excellent EMI/RFI protection.
  • Captive cover assembly screws (M4) are located outside the sealing area.
  • Recessed area on cover surface for decals.
  • Easily machined and modified to your particular requirements.
  • Finish: Natural
  • Optional die cast external mounting brackets available – ANX-1390 (Natural), ANX-1390-B (Black)
See Other Models Search by Size Check Stock / Pricing
External Size L x W x D: 7.87" x 5.91" x 1.97"
Internal Size L x W x D: 7" x 5.03" x 1.77"
Weight: 1.90 lbs
Color: Natural
RoHS Certified: Always Compliant
Gasket Type: Silicon + Wire-Mesh Sponge Rubber
Shielded Gasket: Yes
Features: Shielded Gasket
NEMA Rating: NEMA 4X
IP Rating: 67
Features: Shielded Gasket
Cover Style: Opaque, Screw Down Cover
hbans3817.pdf hbans3817.dxf

Drawing
