ANS-3819-B

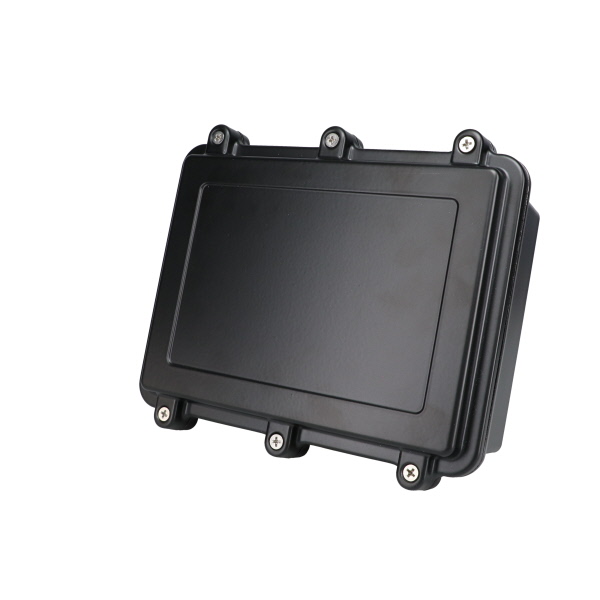

Aluminum Enclosure with EMI/RFI Shielding Gasket Black ANS-3819-B
5 Day Modifications
  • Aluminum Enclosure with EMI/RFI Shielding Gasket
2 Videos

Product Details

Model # ANS-3819-B ANS Series EMI Enclosure with Shielded Gasket
  • IP65|IP66
  • Rugged #ADC-12 die cast aluminum alloy.
  • Thick wall (0.098 inch, 2.5 mm) construction provides strength and rigidity for heavy duty applications.
  • One-piece molded outer Silicone gasket provides reliable and long lasting sealing to meet NEMA 4X and IP67 requirements.
  • Second wire-mesh with sponge rubber gasket provides excellent EMI/RFI protection.
  • Captive cover assembly screws (M4) are located outside the sealing area.
  • Recessed area on cover surface for decals.
  • Easily machined and modified to your particular requirements.
  • Finish: Smooth black powder-coat
  • Optional die cast external mounting brackets available – ANX-1390 (Natural), ANX-1390-B (Black)
 Check Stock / Pricing Request ModificationsCompare Sizes and ModelsSee Accessories
External Size L x W x D: 7.87" x 5.91" x 2.95"
Internal Size L x W x D: 7.00" x 5.03" x 2.76"
Weight: 2.23 lbs
Color: Black Powder Coat
RoHS Certified: Always Compliant
Gasket Type: Silicon + Wire-Mesh Sponge Rubber
Shielded Gasket: Yes
Features: Shielded Gasket
NEMA Rating: NEMA 4X
IP Rating: IP65, IP66
Features: Shielded Gasket
Cover Style: Opaque, Screw Down Cover

Drawing

ANS-3819-B Dimensions

OTHER MODELS IN THIS SERIES

Model # External Dimensions Internal Dimensions
ANS-3833-B 10.31" x 7.17" x 2.17" 10.317.172.17 9.45" x 6.30" x 1.97"
ANS-3833 10.31" x 7.17" x 2.17" 10.317.172.17 9.45" x 6.30" x 1.97"
ANS-3835-B 10.31" x 7.17" x 3.54" 10.317.173.54 9.45" x 6.30" x 3.35"
ANS-3835 10.31" x 7.17" x 3.54" 10.317.173.54 9.45" x 6.30" x 3.35"
ANS-3809-B 10.79" x 6.81" x 2.60" 10.796.812.60 9.92" x 5.94" x 2.40"
ANS-3809 10.79" x 6.81" x 2.60" 10.796.812.60 9.92" x 5.94" x 2.40"
ANS-3811-B 10.79" x 6.81" x 3.94" 10.796.813.94 9.92" x 5.94" x 3.70"
ANS-3811 10.79" x 6.81" x 3.94" 10.796.813.94 9.92" x 5.94" x 3.70"
ANS-3801-B 3.79" x 3.79" x 1.77" 3.793.791.77 2.83" x 2.64" x 1.58"
ANS-3801 3.79" x 3.79" x 1.77" 3.793.791.77 2.83" x 2.64" x 1.58"
ANS-3803 3.79" x 3.79" x 2.64" 3.793.792.64 2.83" x 2.64" x 2.40"
ANS-3803-B 3.79" x 3.79" x 2.64" 3.793.792.64 2.83" x 2.64" x 2.40"
ANS-3813 5.91" x 3.94" x 1.97" 5.913.941.97 5.03" x 3.06" x 1.77"
ANS-3813-B 5.91" x 3.94" x 1.97" 5.913.941.97 5.03" x 3.06" x 1.77"
ANS-3815 5.91" x 3.94" x 2.95" 5.913.942.95 5.03" x 3.06" x 2.76"
ANS-3815-B 5.91" x 3.94" x 2.95" 5.913.942.95 5.03" x 3.06" x 2.76"
ANS-3821-B 5.98" x 4.41" x 1.18" 5.984.411.18 5.12" x 3.54" x 0.98"
ANS-3821 5.98" x 4.41" x 1.18" 5.984.411.18 5.12" x 3.54" x 0.98"
ANS-3823 5.98" x 4.41" x 2.17" 5.984.412.17 5.12" x 3.54" x 1.97"
ANS-3823-B 5.98" x 4.41" x 2.17" 5.984.412.17 5.12" x 3.54" x 1.97"
ANS-3825-B 6.38" x 6.38" x 2.17" 6.386.382.17 5.51" x 5.51" x 1.97"
ANS-3825 6.38" x 6.38" x 2.17" 6.386.382.17 5.51" x 5.51" x 1.97"
ANS-3827-B 6.38" x 6.38" x 3.15" 6.386.383.15 5.51" x 5.51" x 2.95"
ANS-3827 6.38" x 6.38" x 3.15" 6.386.383.15 5.51" x 5.51" x 2.95"
ANS-3805-B 7.56" x 3.78" x 1.77" 7.563.781.77 6.69" x 2.91" x 1.58"
ANS-3805 7.56" x 3.78" x 1.77" 7.563.781.77 6.69" x 2.91" x 1.58"
ANS-3807 7.56" x 3.78" x 2.64" 7.563.782.64 6.69" x 2.91" x 2.44"
ANS-3807-B 7.56" x 3.78" x 2.64" 7.563.782.64 6.69" x 2.91" x 2.44"
ANS-3816-B 7.87" x 5.91" x 1.10" 7.875.911.10 7.06" x 5.09" x 0.94"
ANS-3816 7.87" x 5.91" x 1.10" 7.875.911.10 7.06" x 5.09" x 0.94"
ANS-3817-B 7.87" x 5.91" x 1.97" 7.875.911.97 7.00" x 5.03" x 1.77"
ANS-3817 7.87" x 5.91" x 1.97" 7.875.911.97 7.00" x 5.03" x 1.77"
ANS-3819-B 7.87" x 5.91" x 2.95" 7.875.912.95 7.00" x 5.03" x 2.76"
ANS-3819 7.87" x 5.91" x 2.95" 7.875.912.95 7.00" x 5.03" x 2.76"
ANS-3829 7.95" x 5.59" x 2.17" 7.955.592.17 7.09" x 4.72" x 1.97"
ANS-3829-B 7.95" x 5.59" x 2.17" 7.955.592.17 7.09" x 4.72" x 1.97"
ANS-3831 7.95" x 5.59" x 3.15" 7.955.593.15 7.09" x 4.72" x 2.95"
ANS-3831-B 7.95" x 5.59" x 3.15" 7.955.593.15 7.09" x 4.72" x 2.95"
