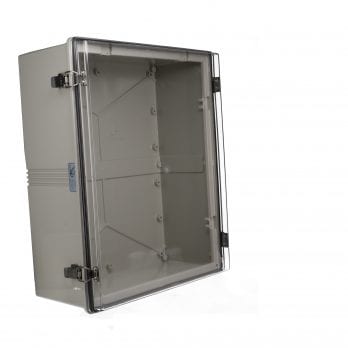

NEMA Enclosure with Stainless Steel Hinges and Latches NBA-10172
  • NBA Series NEMA Enclosure with Stainless Steel Hinges and Latches

Product Details

Model # NBA-10172 NBA Series Plastic NEMA Enclosure

Gasketed plastic enclosures are useful in wet-washdown, dirty, and corrosive and environments.

See Other Models Search by Size See Accessories Check Stock / Pricing
External Size L x W x D: 19.68" x 15.75" x 7.87"
Internal Size L x W x D: 18.85" x 14.9" x 7.6"
Weight: 7.4 lbs
Color: Light Gray
RoHS Certified: Always Compliant
Indoor / Outdoor: Indoor (Not UV Stabilized)
Flammability Rating: UL94-5VA
Door Type of Plastic: Clear Polycarbonate
Service Temperature Min: -40°C
UL Rating: UL508
Gasket Type: Polyurethane
Type of Plastic: ABS Poly Blend
Door Flammability Rating: UL94-V0
Cover Style: Clear, Hinged Cover
Service Temperature Max: 70°C
Latch Style: Stainless Steel
Mounting Style: Mounting Brackets
NEMA Rating: NEMA 1, NEMA 4, NEMA 4X
IP Rating: 66
hb10152.pdf hb10152.dxf

Drawing
