NBA-10152

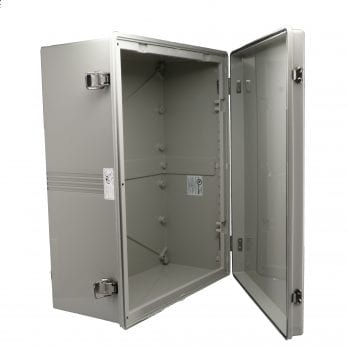

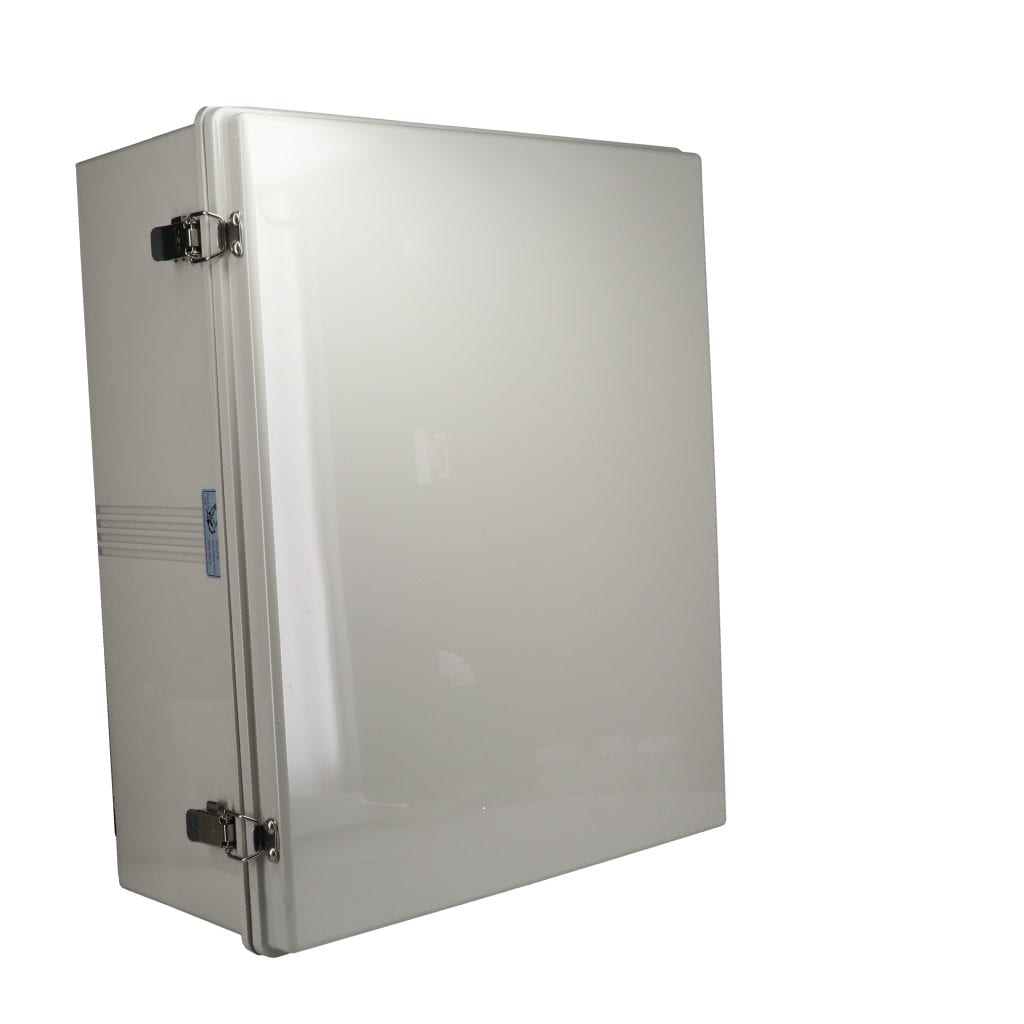

NEMA Enclosure with Stainless Steel Hinges and Latches NBA-10152
  • NBA Series NEMA Enclosure with Stainless Steel Hinges and Latches

Product Details

Model # NBA-10152 NBA Series Plastic NEMA Enclosure

Gasketed plastic enclosures are useful in wet-washdown, dirty, and corrosive and environments.

Compare Sizes and Models See Accessories Check Stock / Pricing
External Size L x W x D: 19.68" x 15.74" x 7.87"
Internal Size L x W x D: 18.85" x 14.91" x 7.60"
Weight: 7.4 lbs
Color: Light Gray
RoHS Certified: Always Compliant
Type of Plastic: ABS Poly Blend
Cover Style: Opaque, Hinged Cover
Door Flammability Rating: UL94-5VA
Service Temperature Max: 70°C
Indoor / Outdoor: Indoor (Not UV Stabilized)
UL Rating: UL508
Gasket Type: Polyurethane
Flammability Rating: UL94-5VA
Door Type of Plastic: ABS Poly Blend
Service Temperature Min: -40°C
Latch Style: Stainless Steel
Mounting Style: Mounting Brackets
NEMA Rating: NEMA 1, NEMA 4, NEMA 4X
IP Rating: 66
hb10152.pdf hb10152.dxf

Drawing

OTHER MODELS IN THIS SERIES

Model # Internal Dimensions External Dimensions Cover Style
NBA-10156 23.61" x 15.75" x 9.06" 22.78" x 14.90" x 8.80" Opaque, Hinged Cover
NBA-10152 19.68" x 15.74" x 7.87" 18.85" x 14.91" x 7.60" Opaque, Hinged Cover
NBA-10172 19.68" x 15.74" x 7.87" 18.85" x 14.91" x 7.60" Clear, Hinged Cover
NBA-10176 23.61" x 15.30" x 9.06" 22.79" x 14.90" x 8.80" Clear, Hinged Cover
NBA-10148 15.74" x 11.79" x 7.08" 14.93" x 10.94" x 6.80" Opaque, Hinged Cover
NBA-10168 15.74" x 11.79" x 7.08" 14.93" x 10.94" x 6.80" Clear, Hinged Cover
NBA-10142 11.81" x 7.85" x 5.97" 11.01" x 7.02" x 5.59" Opaque, Hinged Cover
NBA-10162 11.81" x 7.85" x 5.97" 10.99" x 7.02" x 5.69" Clear, Hinged Cover
NBA-10144 11.83" x 7.85" x 7.09" 10.99" x 7.02" x 6.80" Opaque, Hinged Cover
NBA-10164 11.83" x 7.85" x 7.09" 10.99" x 7.02" x 6.80" Clear, Hinged Cover
