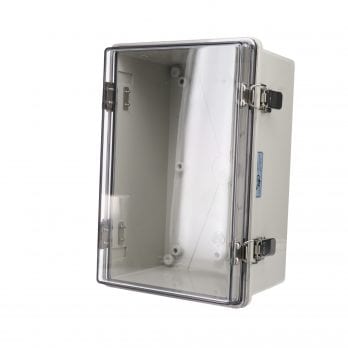

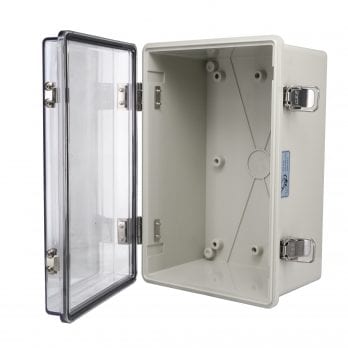

NEMA Enclosure with Stainless Steel Hinges and Latches NBA-10162

360° View

Model # NBA-10162 NBA Series Plastic NEMA Enclosure

Gasketed plastic enclosures are useful in wet-washdown, dirty, and corrosive and environments.

Compare Sizes and Models See Accessories Check Stock / Pricing

External Size L x W x D: 11.81" x 7.85" x 5.97"

Internal Size L x W x D: 10.99" x 7.02" x 5.69"

Weight: 2.2 lbs

Color: Light Gray

RoHS Certified: Always Compliant

Cover Style: Clear, Hinged Cover

Indoor / Outdoor: Indoor (Not UV Stabilized)

Flammability Rating: UL94-5VA

Door Flammability Rating: UL94-V0

Type of Plastic: ABS Poly Blend

Door Type of Plastic: Clear Polycarbonate

UL Rating: UL508

Gasket Type: Polyurethane

Service Temperature Min: -40°C

Service Temperature Max: 70°C

Latch Style: Stainless Steel

Mounting Style: Mounting Brackets

NEMA Rating: NEMA 1, NEMA 4, NEMA 4X

IP Rating: 66

Drawing

Model #	Internal Dimensions	External Dimensions	Cover Style
NBA-10156	23.61" x 15.75" x 9.06"	22.78" x 14.90" x 8.80"	Opaque, Hinged Cover
NBA-10176	23.61" x 15.30" x 9.06"	22.79" x 14.90" x 8.80"	Clear, Hinged Cover
NBA-10152	19.68" x 15.74" x 7.87"	18.85" x 14.91" x 7.60"	Opaque, Hinged Cover
NBA-10172	19.68" x 15.74" x 7.87"	18.85" x 14.91" x 7.60"	Clear, Hinged Cover
NBA-10148	15.74" x 11.79" x 7.08"	14.93" x 10.94" x 6.80"	Opaque, Hinged Cover
NBA-10168	15.74" x 11.79" x 7.08"	14.93" x 10.94" x 6.80"	Clear, Hinged Cover
NBA-10144	11.83" x 7.85" x 7.09"	10.99" x 7.02" x 6.80"	Opaque, Hinged Cover
NBA-10164	11.83" x 7.85" x 7.09"	10.99" x 7.02" x 6.80"	Clear, Hinged Cover
NBA-10142	11.81" x 7.85" x 5.97"	11.01" x 7.02" x 5.59"	Opaque, Hinged Cover
NBA-10162	11.81" x 7.85" x 5.97"	10.99" x 7.02" x 5.69"	Clear, Hinged Cover
