PTH-22780-L

Fiberglass Box with Self-Locking Latch PTH-22780-L
  • Fiberglass Box with Self-Locking Latch PTH-22780-L open

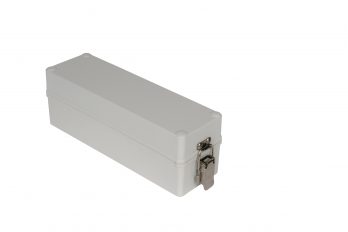

  • Fiberglass Box with Self-Locking Latch PTH-22780-L closed

Product Details

Model # PTH-22780-L PTH Series Fiberglass Box
  • Body made of gray polycarbonate plastic 10% glass fiber filled
  • Hinged cover made of gray polycarbonate plastic
  • High impact resistance
  • Stainless steel latch
  • IP-67 TUV rating to keep out dust and water in extreme conditions (meets NEMA Type 6)
  • UL508 / UL tested for type 4X, listed #E343339
  • RoHs compliant
  • Non-chlorinated & non-brominated flame retardant With UL-94 V0 rating
  • Suitable for outdoor use with respect to exposure to ultraviolet light, water exposure and immersion in accordance with UL 746C
  • -40c to +95c extended exposure condition
  • Good chemical resistance
  • Continuous gasket
See Other Models Search by Size See Accessories Check Stock / Pricing
External Size L x W x D: 9.84" x 3.15" x 3.35"
Internal Size L x W x D: 9.6" x 2.91" x 2.84"
Weight: 1.0186 lbs
Color: Light Gray
RoHS Certified: Always Compliant
Features: 10% Fiberglass Reinforced Plastic
Indoor / Outdoor: Outdoor (UV Stabilized)
Flammability Rating: UL94-V0
Door Flammability Rating: UL94-V0
Type of Plastic: Polycarbonate
Door Type of Plastic: Polycarbonate
UL Rating: UL508
Service Temperature Min: -40°C
Service Temperature Max: 95°C
NEMA Rating: NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 6
IP Rating: 67
Features: 10% Fiberglas Reinforced Plastic
Cover Style: Opaque, Hinged Cover
Hinge Location: Short Side
hbpth22706l.pdf hbpth22706l.dxf

Drawing
