PN-1321-CMB

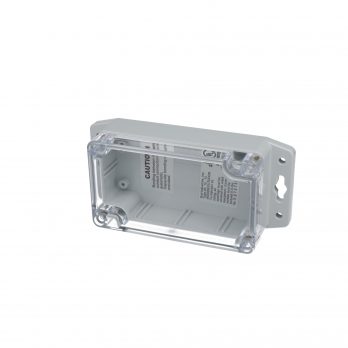

IP65 NEMA 4X Box with Clear Cover and Mounting Brackets PN-1321-CMB

Product Details

Model # PN-1321-CMB PN Series IP65 Plastic NEMA 4X Box
  • Designed to IP65, IP66 of IEC 529 and NEMA 1, 2, 4, 4x, 12, and 13 specifications
  • UL Listed
  • Molded external mounting brackets eliminate the need for assembly of separate brackets
  • Cover attaching screws are outside the sealing area thus preventing ingress of moisture and dust in the NEMA box.
  • Most models have internal guide slots for mounting PCB assemblies vertically.
  • Cover screws are M-4 stainless steel, non-magnetic and fasten into threaded brass inserts.
  • Gasket Material: Silicon Sponge
Check Stock / Pricing Request ModificationsCompare Sizes and ModelsSee Accessories
External Size L x W x D: 4.53" x 2.56" x 1.58"
Internal Size L x W x D: 4.16" x 2.32" x 1.36"
Weight: 0.28 lbs
Color: Light Gray
RoHS Certified: Always Compliant
Indoor / Outdoor: Outdoor (UV Stabilized)
Flammability Rating: UL94-HB
Door Flammability Rating: UL94-HB
Type of Plastic: Gray Polycarbonate
Door Type of Plastic: Gray Polycarbonate
UL Rating: UL508
Service Temperature Min: -40°C
Service Temperature Max: 120°C
NEMA Rating: NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13
IP Rating: IP65, IP66
Mounting Style: Mounting Flanges
Cover Style: Clear, Screw Down Cover

Drawing

OTHER MODELS IN THIS SERIES

Model # External Dimensions Internal Dimensions Indoor / Outdoor Flammability Rating NEMA Rating IP Rating
PN-1335 10.43" x 7.28" x 3.74" 10.437.283.74 10.17" x 7.02" x 3.50" Outdoor (UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1335-C 10.43" x 7.28" x 3.74" 10.437.283.74 10.17" x 7.02" x 3.50" Outdoor (UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1335-DG 10.43" x 7.28" x 3.74" 10.437.283.74 10.17" x 7.02" x 3.50" Indoor (Not UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1342 11.81" x 9.06" x 3.41" 11.819.063.41 11.52" x 8.76" x 3.13" Outdoor (UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1342-C 11.81" x 9.06" x 3.41" 11.819.063.41 11.52" x 8.76" x 3.13" Outdoor (UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1342-DG 11.81" x 9.06" x 3.41" 11.819.063.41 11.52" x 8.76" x 3.13" Indoor (Not UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1343 11.81" x 9.06" x 4.39" 11.819.064.39 11.52" x 8.76" x 4.11" Outdoor (UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1343-C 11.81" x 9.06" x 4.39" 11.819.064.39 11.52" x 8.76" x 4.11" Outdoor (UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1343-DG 11.81" x 9.06" x 4.39" 11.819.064.39 11.52" x 8.76" x 4.11" Indoor (Not UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1344-DG 14.17" x 7.87" x 5.91" 14.177.875.91 13.75" x 7.45" x 5.62" Indoor (Not UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1344 14.17" x 7.87" x 5.91" 14.177.875.91 13.75" x 7.45" x 5.62" Outdoor (UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1344-C 14.17" x 7.87" x 5.91" 14.177.875.91 13.75" x 7.45" x 5.62" Outdoor (UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1330-DG 2.05" x 1.97" x 1.38" 2.051.971.38 1.81" x 1.73" x 1.17" Indoor (Not UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1330-CMB 2.05" x 1.97" x 1.38" 2.051.971.38 1.81" x 1.73" x 1.17" Outdoor (UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1330-C 2.05" x 1.97" x 1.38" 2.051.971.38 1.81" x 1.73" x 1.17" Outdoor (UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1330 2.05" x 1.97" x 1.38" 2.051.971.38 1.81" x 1.73" x 1.17" Outdoor (UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1330-DGMB 2.05" x 1.97" x 1.38" 2.051.971.38 1.81" x 1.73" x 1.17" Indoor (Not UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1330-MB 2.05" x 1.97" x 1.38" 2.051.971.38 1.81" x 1.73" x 1.17" Outdoor (UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1320-C 2.52" x 2.28" x 1.38" 2.522.281.38 2.28" x 2.05" x 1.18" Outdoor (UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1320 2.52" x 2.28" x 1.38" 2.522.281.38 2.28" x 2.05" x 1.18" Outdoor (UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1320-MB 2.52" x 2.28" x 1.38" 2.522.281.38 2.28" x 2.05" x 1.18" Outdoor (UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1320-DGMB 2.52" x 2.28" x 1.38" 2.522.281.38 2.28" x 2.05" x 1.18" Indoor (Not UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1320-DG 2.52" x 2.28" x 1.38" 2.522.281.38 2.28" x 2.05" x 1.18" Indoor (Not UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1320-CMB 2.52" x 2.28" x 1.38" 2.522.281.38 2.28" x 2.05" x 1.18" Outdoor (UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1331-DGMB 3.23" x 3.15" x 2.17" 3.233.152.17 2.97" x 2.89" x 1.93" Indoor (Not UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1331-MB 3.23" x 3.15" x 2.17" 3.233.152.17 2.97" x 2.89" x 1.93" Outdoor (UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1331-DG 3.23" x 3.15" x 2.17" 3.233.152.17 2.97" x 2.89" x 1.93" Indoor (Not UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1331-CMB 3.23" x 3.15" x 2.17" 3.233.152.17 2.97" x 2.89" x 1.93" Outdoor (UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1331-C 3.23" x 3.15" x 2.17" 3.233.152.17 2.97" x 2.89" x 1.93" Outdoor (UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1331 3.23" x 3.15" x 2.17" 3.233.152.17 2.97" x 2.89" x 1.93" Outdoor (UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1321-DG 4.53" x 2.56" x 1.58" 4.532.561.58 4.16" x 2.32" x 1.36" Indoor (Not UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1321-C 4.53" x 2.56" x 1.58" 4.532.561.58 4.16" x 2.32" x 1.36" Outdoor (UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1321-CMB 4.53" x 2.56" x 1.58" 4.532.561.58 4.16" x 2.32" x 1.36" Outdoor (UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1321 4.53" x 2.56" x 1.58" 4.532.561.58 4.16" x 2.32" x 1.36" Outdoor (UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1321-MB 4.53" x 2.56" x 1.58" 4.532.561.58 4.16" x 2.32" x 1.36" Outdoor (UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1321-DGMB 4.53" x 2.56" x 1.58" 4.532.561.58 4.16" x 2.32" x 1.36" Indoor (Not UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1322-CMB 4.53" x 2.56" x 2.17" 4.532.562.17 4.16" x 2.32" x 1.95" Outdoor (UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1322 4.53" x 2.56" x 2.17" 4.532.562.17 4.16" x 2.32" x 1.95" Outdoor (UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1322-C 4.53" x 2.56" x 2.17" 4.532.562.17 4.16" x 2.32" x 1.95" Outdoor (UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1322-DG 4.53" x 2.56" x 2.17" 4.532.562.17 4.16" x 2.32" x 1.95" Indoor (Not UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1322-DGMB 4.53" x 2.56" x 2.17" 4.532.562.17 4.16" x 2.32" x 1.95" Indoor (Not UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1322-MB 4.53" x 2.56" x 2.17" 4.532.562.17 4.16" x 2.32" x 1.95" Outdoor (UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1323 4.53" x 3.54" x 2.17" 4.533.542.17 4.16" x 3.31" x 1.95" Outdoor (UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1323-C 4.53" x 3.54" x 2.17" 4.533.542.17 4.16" x 3.31" x 1.95" Outdoor (UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1323-DGMB 4.53" x 3.54" x 2.17" 4.533.542.17 4.16" x 3.31" x 1.95" Indoor (Not UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1323-CMB 4.53" x 3.54" x 2.17" 4.533.542.17 4.16" x 3.31" x 1.95" Outdoor (UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1323-DG 4.53" x 3.54" x 2.17" 4.533.542.17 4.16" x 3.31" x 1.95" Indoor (Not UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1323-MB 4.53" x 3.54" x 2.17" 4.533.542.17 4.16" x 3.31" x 1.95" Outdoor (UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1328-DG 4.53" x 3.54" x 3.15" 4.533.543.15 4.29" x 3.31" x 2.95" Indoor (Not UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1328-CMB 4.53" x 3.54" x 3.15" 4.533.543.15 4.29" x 3.31" x 2.95" Outdoor (UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1328-C 4.53" x 3.54" x 3.15" 4.533.543.15 4.29" x 3.31" x 2.95" Outdoor (UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1328 4.53" x 3.54" x 3.15" 4.533.543.15 4.29" x 3.31" x 2.95" Outdoor (UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1328-DGMB 4.53" x 3.54" x 3.15" 4.533.543.15 4.29" x 3.31" x 2.95" Indoor (Not UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1328-MB 4.53" x 3.54" x 3.15" 4.533.543.15 4.29" x 3.31" x 2.95" Outdoor (UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1336-MB 4.72" x 4.72" x 2.36" 4.724.722.36 4.49" x 4.49" x 2.13" Outdoor (UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1336-DGMB 4.72" x 4.72" x 2.36" 4.724.722.36 4.49" x 4.49" x 2.13" Indoor (Not UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1336-DG 4.72" x 4.72" x 2.36" 4.724.722.36 4.49" x 4.49" x 2.13" Indoor (Not UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1336-CMB 4.72" x 4.72" x 2.36" 4.724.722.36 4.49" x 4.49" x 2.13" Outdoor (UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1336-C 4.72" x 4.72" x 2.36" 4.724.722.36 4.49" x 4.49" x 2.13" Outdoor (UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1336 4.72" x 4.72" x 2.36" 4.724.722.36 4.49" x 4.49" x 2.13" Outdoor (UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1337-C 4.72" x 4.72" x 3.54" 4.724.723.54 4.49" x 4.49" x 3.31" Outdoor (UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1337-CMB 4.72" x 4.72" x 3.54" 4.724.723.54 4.49" x 4.49" x 3.31" Outdoor (UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1337-DG 4.72" x 4.72" x 3.54" 4.724.723.54 4.49" x 4.49" x 3.31" Indoor (Not UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1337-DGMB 4.72" x 4.72" x 3.54" 4.724.723.54 4.49" x 4.49" x 3.31" Indoor (Not UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1337-MB 4.72" x 4.72" x 3.54" 4.724.723.54 4.49" x 4.49" x 3.31" Outdoor (UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1337 4.72" x 4.72" x 3.54" 4.724.723.54 4.49" x 4.49" x 3.31" Outdoor (UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1339 6.26" x 6.26" x 3.54" 6.266.263.54 6.02" x 6.02" x 3.31" Outdoor (UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1339-C 6.26" x 6.26" x 3.54" 6.266.263.54 6.02" x 6.02" x 3.31" Outdoor (UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1339-DG 6.26" x 6.26" x 3.54" 6.266.263.54 6.02" x 6.02" x 3.31" Indoor (Not UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1332-C 6.30" x 3.15" x 2.17" 6.33.152.17 6.02" x 2.87" x 1.94" Outdoor (UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1332-CMB 6.30" x 3.15" x 2.17" 6.33.152.17 6.02" x 2.87" x 1.94" Outdoor (UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1332 6.30" x 3.15" x 2.17" 6.33.152.17 6.02" x 2.87" x 1.94" Outdoor (UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1332-DG 6.30" x 3.15" x 2.17" 6.33.152.17 6.02" x 2.87" x 1.94" Indoor (Not UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1332-DGMB 6.30" x 3.15" x 2.17" 6.33.152.17 6.02" x 2.87" x 1.94" Indoor (Not UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1332-MB 6.30" x 3.15" x 2.17" 6.33.152.17 6.02" x 2.87" x 1.94" Outdoor (UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1333-C 6.30" x 3.15" x 3.35" 6.33.153.35 6.05" x 2.90" x 3.09" Outdoor (UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1333 6.30" x 3.15" x 3.35" 6.33.153.35 6.05" x 2.90" x 3.09" Outdoor (UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1333-CMB 6.30" x 3.15" x 3.35" 6.33.153.35 6.05" x 2.90" x 3.09" Outdoor (UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1333-DG 6.30" x 3.15" x 3.35" 6.33.153.35 6.05" x 2.90" x 3.09" Indoor (Not UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1333-DGMB 6.30" x 3.15" x 3.35" 6.33.153.35 6.05" x 2.90" x 3.09" Indoor (Not UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1333-MB 6.30" x 3.15" x 3.35" 6.33.153.35 6.05" x 2.90" x 3.09" Outdoor (UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1338-DG 6.30" x 6.30" x 2.36" 6.36.32.36 6.06" x 6.06" x 2.13" Indoor (Not UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1338-C 6.30" x 6.30" x 2.36" 6.36.32.36 6.06" x 6.06" x 2.13" Outdoor (UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1338 6.30" x 6.30" x 2.36" 6.36.32.36 6.06" x 6.06" x 2.13" Outdoor (UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1324-MB 6.73" x 4.76" x 2.17" 6.734.762.17 6.35" x 4.38" x 1.93" Outdoor (UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1324-DGMB 6.73" x 4.76" x 2.17" 6.734.762.17 6.35" x 4.38" x 1.93" Indoor (Not UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1324-DG 6.73" x 4.76" x 2.17" 6.734.762.17 6.35" x 4.38" x 1.93" Indoor (Not UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1324-CMB 6.73" x 4.76" x 2.17" 6.734.762.17 6.35" x 4.38" x 1.93" Outdoor (UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1324-C 6.73" x 4.76" x 2.17" 6.734.762.17 6.35" x 4.38" x 1.93" Outdoor (UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1324 6.73" x 4.76" x 2.17" 6.734.762.17 6.35" x 4.38" x 1.93" Outdoor (UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1327-CMB 6.73" x 4.76" x 3.15" 6.734.763.15 6.50" x 4.53" x 2.91" Outdoor (UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1327 6.73" x 4.76" x 3.15" 6.734.763.15 6.50" x 4.53" x 2.91" Outdoor (UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1327-C 6.73" x 4.76" x 3.15" 6.734.763.15 6.50" x 4.53" x 2.91" Outdoor (UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1327-MB 6.73" x 4.76" x 3.15" 6.734.763.15 6.50" x 4.53" x 2.91" Outdoor (UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1327-DGMB 6.73" x 4.76" x 3.15" 6.734.763.15 6.50" x 4.53" x 2.91" Indoor (Not UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1327-DG 6.73" x 4.76" x 3.15" 6.734.763.15 6.50" x 4.53" x 2.91" Indoor (Not UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1326 7.68" x 3.15" x 2.17" 7.683.152.17 7.41" x 2.88" x 1.93" Outdoor (UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1326-C 7.68" x 3.15" x 2.17" 7.683.152.17 7.41" x 2.88" x 1.93" Outdoor (UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1326-DG 7.68" x 3.15" x 2.17" 7.683.152.17 7.41" x 2.88" x 1.93" Indoor (Not UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1334 7.87" x 4.72" x 2.95" 7.874.722.95 7.57" x 4.42" x 2.70" Outdoor (UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65
PN-1334-C 7.87" x 4.72" x 2.95" 7.874.722.95 7.57" x 4.42" x 2.70" Outdoor (UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP66
PN-1334-DG 7.87" x 4.72" x 2.95" 7.874.722.95 7.57" x 4.42" x 2.70" Indoor (Not UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65
PN-1325-MB 8.74" x 5.75" x 2.17" 8.745.752.17 8.50" x 5.51" x 1.99" Outdoor (UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1325-DGMB 8.74" x 5.75" x 2.17" 8.745.752.17 8.50" x 5.51" x 1.99" Indoor (Not UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1325-DG 8.74" x 5.75" x 2.17" 8.745.752.17 8.50" x 5.51" x 1.99" Indoor (Not UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1325-CMB 8.74" x 5.75" x 2.17" 8.745.752.17 8.50" x 5.51" x 1.99" Outdoor (UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1325-C 8.74" x 5.75" x 2.17" 8.745.752.17 8.50" x 5.51" x 1.99" Outdoor (UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1325 8.74" x 5.75" x 2.17" 8.745.752.17 8.50" x 5.51" x 1.99" Outdoor (UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1329 8.74" x 5.75" x 2.95" 8.745.752.95 8.33" x 5.34" x 2.78" Outdoor (UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1329-C 8.74" x 5.75" x 2.95" 8.745.752.95 8.33" x 5.34" x 2.78" Outdoor (UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1329-CMB 8.74" x 5.75" x 2.95" 8.745.752.95 8.33" x 5.34" x 2.78" Outdoor (UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1329-DG 8.74" x 5.75" x 2.95" 8.745.752.95 8.33" x 5.34" x 2.78" Indoor (Not UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1329-DGMB 8.74" x 5.75" x 2.95" 8.745.752.95 8.33" x 5.34" x 2.78" Indoor (Not UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1329-MB 8.74" x 5.75" x 2.95" 8.745.752.95 8.33" x 5.34" x 2.78" Outdoor (UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1341-DG 9.45" x 6.24" x 4.72" 9.456.244.72 9.12" x 5.97" x 4.49" Indoor (Not UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1341-C 9.45" x 6.24" x 4.72" 9.456.244.72 9.12" x 5.97" x 4.49" Outdoor (UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1341 9.45" x 6.24" x 4.72" 9.456.244.72 9.12" x 5.97" x 4.49" Outdoor (UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1340-DG 9.45" x 6.30" x 3.54" 9.456.33.54 9.12" x 5.97" x 3.31" Indoor (Not UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1340-C 9.45" x 6.30" x 3.54" 9.456.33.54 9.12" x 5.97" x 3.31" Outdoor (UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
PN-1340 9.45" x 6.30" x 3.54" 9.456.33.54 9.12" x 5.97" x 3.31" Outdoor (UV Stabilized) UL94-HB NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 IP65, IP66
