NBB-10247

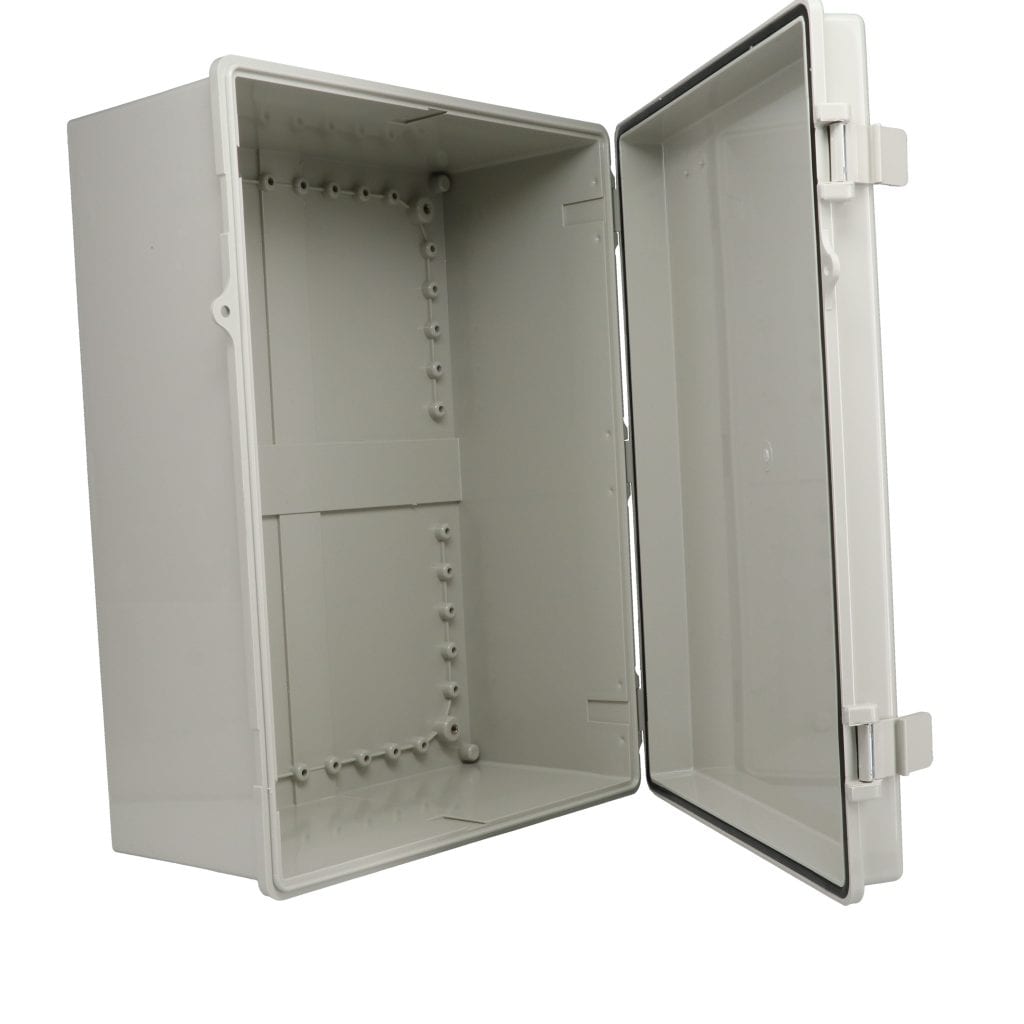

NEMA Box ABS Poly Blend NBB-10247
5 Day Modifications
3 Videos

Product Details

Model # NBB-10247 NBB Series NEMA Box

• Designed to IP66 of IEC 529 and NEMA 1, 2, 3, 3R, 4, 4X, 12, and 13 specifications
• UL Listed to UL508-4X requirements
• Molded out of light gray material with UL94-5VB flammability rating. Suggested service
temperature range -40°C to 70°C
• Non-metallic latches and hinges
• Cover includes gray polyurethane gasket. Opaque door.
• Unit comes with wall mounting brackets and screws

 Compare Sizes and Models See Accessories Request Modifications Check Stock / Pricing
External Size L x W x D: 15.68" x 11.73" x 6.30"
Internal Size L x W x D: 14.88" x 10.89" x 6.03"
Weight: 4.2 lbs
Color: Light Gray
RoHS Certified: Always Compliant
Cover Style: Opaque, Hinged Cover
Indoor / Outdoor: Indoor (Not UV Stabilized)
Flammability Rating: UL94-5VA
Type of Plastic: ABS Poly Blend
UL Rating: UL508
Gasket Type: Polyurethane
Service Temperature Min: -40°C
Service Temperature Max: 70°C
Door Flammability Rating: UL94-5VA
Door Type of Plastic: ABS Poly Blend
Latch Style: 2 Plastic Latches
Mounting Style: Mounting Brackets
NEMA Rating: NEMA 1, NEMA 4, NEMA 4X
IP Rating: 66
hb10247.pdf hb10247.dxf file/d/1st9ZS6x2mDCWlGRioGVacTd5FGU40-bI/view?usp=drivesdk

Drawing

NBB-10247 Dimensions

OTHER MODELS IN THIS SERIES

Model # External Dimensions Internal Dimensions Cover Style Indoor / Outdoor Type of Plastic Door Type of Plastic
NBB-10261 10.73" x 6.79" x 4.33" 10.736.794.33 9.84" x 5.90" x 4.07" Clear, Hinged Cover Indoor (Not UV Stabilized) ABS Poly Blend Clear Polycarbonate
NBB-22241 10.73" x 6.79" x 4.33" 10.736.794.33 9.84" x 5.90" x 4.07" Opaque, Hinged Cover Indoor (Not UV Stabilized) ABS ABS
NBB-10241 10.73" x 6.79" x 4.33" 10.736.794.33 9.84" x 5.90" x 4.07" Opaque, Hinged Cover Indoor (Not UV Stabilized) ABS Poly Blend ABS Poly Blend
NBB-22243 11.28" x 7.48" x 5.51" 11.287.485.51 10.46" x 6.65" x 5.25" Opaque, Hinged Cover Indoor (Not UV Stabilized) ABS ABS
NBB-10243 11.28" x 7.48" x 5.51" 11.287.485.51 10.46" x 6.65" x 5.25" Opaque, Hinged Cover Indoor (Not UV Stabilized) ABS Poly Blend ABS Poly Blend
NBB-10263 11.28" x 7.48" x 5.51" 11.287.485.51 10.46" x 6.65" x 5.25" Clear, Hinged Cover Indoor (Not UV Stabilized) ABS Poly Blend Clear Polycarbonate
NBB-15243 11.28" x 7.48" x 5.51" 11.287.485.51 10.46" x 6.65" x 5.25" Opaque, Hinged Cover Outdoor (UV Stabilized) Poly PBT Blend Poly PBT Blend
NBB-22245 13.01" x 13.01" x 7.04" 13.0113.017.04 12.14" x 12.14" x 6.79" Opaque, Hinged Cover Indoor (Not UV Stabilized) ABS ABS
NBB-10245 13.01" x 13.01" x 7.04" 13.0113.017.04 12.14" x 12.14" x 6.79" Opaque, Hinged Cover Indoor (Not UV Stabilized) ABS Poly Blend ABS Poly Blend
NBB-10265 13.01" x 13.01" x 7.04" 13.0113.017.04 12.14" x 12.14" x 6.79" Clear, Hinged Cover Indoor (Not UV Stabilized) ABS Poly Blend Clear Polycarbonate
NBB-15245 13.01" x 13.01" x 7.04" 13.0113.017.04 12.14" x 12.14" x 6.79" Opaque, Hinged Cover Outdoor (UV Stabilized) Poly PBT Blend Poly PBT Blend
NBB-22251 14.59" x 10.64" x 5.92" 14.5910.645.92 13.76" x 9.82" x 5.64" Opaque, Hinged Cover Indoor (Not UV Stabilized) ABS ABS
NBB-10251 14.59" x 10.64" x 5.92" 14.5910.645.92 13.76" x 9.82" x 5.64" Opaque, Hinged Cover Indoor (Not UV Stabilized) ABS Poly Blend ABS Poly Blend
NBB-10271 14.59" x 10.64" x 5.92" 14.5910.645.92 13.76" x 9.82" x 5.64" Clear, Hinged Cover Indoor (Not UV Stabilized) ABS Poly Blend Clear Polycarbonate
NBB-22247 15.68" x 11.73" x 6.30" 15.6811.736.30 14.88" x 10.89" x 6.03" Opaque, Hinged Cover Indoor (Not UV Stabilized) ABS ABS
NBB-10247 15.68" x 11.73" x 6.30" 15.6811.736.30 14.88" x 10.89" x 6.03" Opaque, Hinged Cover Indoor (Not UV Stabilized) ABS Poly Blend ABS Poly Blend
NBB-10267 15.68" x 11.73" x 6.30" 15.6811.736.30 14.88" x 10.89" x 6.03" Clear, Hinged Cover Indoor (Not UV Stabilized) ABS Poly Blend Clear Polycarbonate
NBB-15247 15.68" x 11.73" x 6.30" 15.6811.736.30 14.88" x 10.89" x 6.03" Opaque, Hinged Cover Outdoor (UV Stabilized) Poly PBT Blend Poly PBT Blend
NBB-15253 19.17" x 14.64" x 7.85" 19.1714.647.85 18.33" x 13.75" x 7.60" Opaque, Hinged Cover Outdoor (UV Stabilized) Poly PBT Blend Poly PBT Blend
NBB-10253 19.17" x 14.64" x 7.85" 19.1714.647.85 18.33" x 13.75" x 7.60" Opaque, Hinged Cover Indoor (Not UV Stabilized) ABS Poly Blend ABS Poly Blend
NBB-10273 19.17" x 14.64" x 7.85" 19.1714.647.85 18.33" x 13.75" x 7.60" Clear, Hinged Cover Indoor (Not UV Stabilized) ABS Poly Blend Clear Polycarbonate
NBB-22253 19.17" x 14.64" x 7.85" 19.1714.647.85 18.33" x 13.75" x 7.60" Opaque, Hinged Cover Indoor (Not UV Stabilized) ABS ABS
NBB-15260 5.91" x 5.91" x 3.57" 5.915.913.57 5.04" x 5.04" x 3.27" Opaque, Hinged Cover Outdoor (UV Stabilized) Poly PBT Blend Clear Polycarbonate
NBB-15240 5.91" x 5.91" x 3.57" 5.915.913.57 5.04" x 5.04" x 3.27" Opaque, Hinged Cover Outdoor (UV Stabilized) Poly PBT Blend Poly PBT Blend
NBB-10260 5.91" x 5.91" x 3.57" 5.915.913.57 5.04" x 5.04" x 3.27" Clear, Hinged Cover Indoor (Not UV Stabilized) ABS Poly Blend Clear Polycarbonate
NBB-10240 5.91" x 5.91" x 3.57" 5.915.913.57 5.04" x 5.04" x 3.27" Opaque, Hinged Cover Indoor (Not UV Stabilized) ABS Poly Blend ABS Poly Blend
NBB-22240 5.91" x 5.91" x 3.57" 5.915.913.57 5.04" x 5.04" x 3.27" Opaque, Hinged Cover Indoor (Not UV Stabilized) ABS ABS
