NBB-15260

NEMA Box Poly PTB Blend NBB-15260
  • NEMA Box NBB Series

Product Details

Model # NBB-15260 NBB Series NEMA Box
  • For outdoor use.
  • Clear door lets users read indicators and inspect for moisture without breaking seal.
  • Designed to IP66 of IEC 529 and NEMA 1, 4 and 4x specifications.
  • UL Listed to UL508-4x requirements.
  • Gasketed plastic enclosure with latching lid is ideal for wet, washdown, dirty and corrosive environments.
  • Opaque door
See Other Models Search by Size See Accessories Check Stock / Pricing
External Size L x W x D: 5.9" x 5.9" x 3.57"
Internal Size L x W x D: 5.04" x 5.04" x 3.27"
Weight: 1.2 lbs
Color: Light Gray
RoHS Certified: Always Compliant
Cover Style: Opaque, Hinged Cover
Indoor / Outdoor: Outdoor (UV Stabilized)
Flammability Rating: UL94-5VA
Door Flammability Rating: UL94-5A
Type of Plastic: Poly PTB Blend
Door Type of Plastic: Clear Polycarbonate
UL Rating: UL508
Gasket Type: Polyurethane
Service Temperature Min: -40°C
Service Temperature Max: 70°C
Latch Style: 2 Plastic Latches
NEMA Rating: NEMA 1, NEMA 4, NEMA 4X
IP Rating: 66
Nbb-10260.pdf nbb-10260.dxf

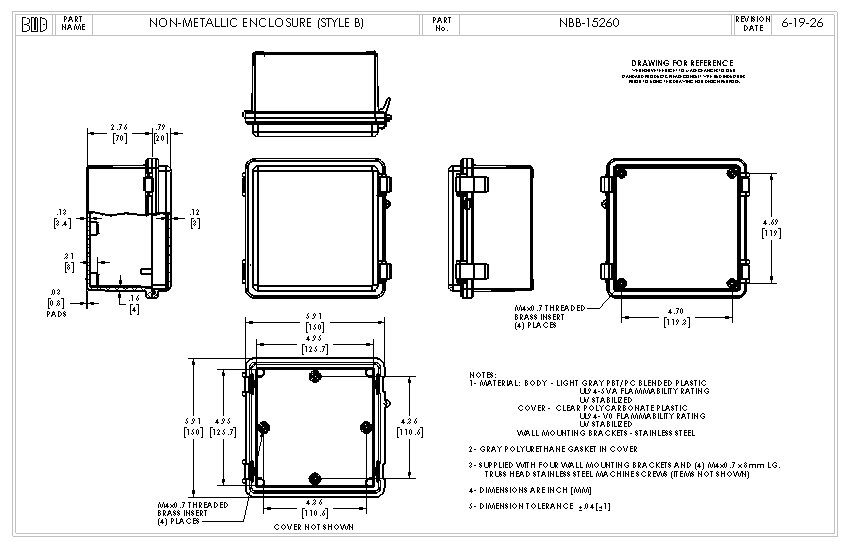

Drawing
