NBB-15240

NEMA Box Poly PTB Blend NBB-15240

Product Details

Model # NBB-15240 NBB Series NEMA Box
  • For outdoor use.
  • Designed to IP66 of IEC 529 and NEMA 1, 4 and 4x specifications.
  • UL Listed to UL508-4x requirements
Compare Sizes and Models See Accessories Check Stock / Pricing
External Size L x W x D: 5.91" x 5.91" x 3.57"
Internal Size L x W x D: 5.04" x 5.04" x 3.27"
Weight: 1.2 lbs
Color: Light Gray
RoHS Certified: Always Compliant
Cover Style: Opaque, Hinged Cover
Indoor / Outdoor: Outdoor (UV Stabilized)
Flammability Rating: UL94-5VA
Door Flammability Rating: UL94-5VA
Type of Plastic: Poly PBT Blend
Door Type of Plastic: Poly PBT Blend
UL Rating: UL508
Gasket Type: Polyurethane
Service Temperature Min: -40°C
Service Temperature Max: 70°C
Latch Style: 2 Plastic Latches
NEMA Rating: NEMA 1, NEMA 4, NEMA 4X
IP Rating: 66
hbnbb10240.pdf hbnbb10240.dxf

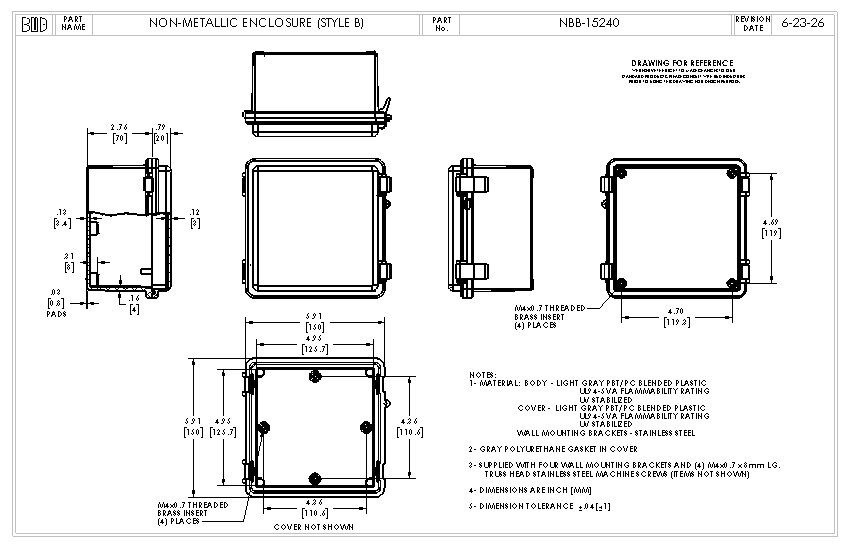

Drawing

OTHER MODELS IN THIS SERIES

Model # External Dimensions Internal Dimensions Cover Style Indoor / Outdoor Flammability Rating Door Flammability Rating Type of Plastic Door Type of Plastic Latch Style
NBB-15253 19.17" x 14.64" x 7.85" 18.33" x 13.75" x 7.60" Opaque, Hinged Cover Outdoor (UV Stabilized) UL94-5VA UL94-5VA Poly PBT Blend Poly PBT Blend 2 Plastic Latches
NBB-10253 19.17" x 14.64" x 7.85" 18.33" x 13.75" x 7.60" Opaque, Hinged Cover Indoor (Not UV Stabilized) UL94-5VA UL94-5VA ABS Poly Blend ABS Poly Blend 2 Plastic Latches
NBB-10273 19.17" x 14.64" x 7.85" 18.33" x 13.75" x 7.60" Clear, Hinged Cover Indoor (Not UV Stabilized) UL94-5VA UL94-V0 ABS Poly Blend Clear Polycarbonate 2 Plastic Latches
NBB-22253 19.17" x 14.64" x 7.85" 18.33" x 13.75" x 7.60" Opaque, Hinged Cover Indoor (Not UV Stabilized) UL94-HB UL94-HB ABS ABS 2 Plastic Latches
NBB-22245 13.01" x 13.01" x 7.04" 12.14" x 12.14" x 6.79" Opaque, Hinged Cover Indoor (Not UV Stabilized) UL94-HB UL94-HB ABS ABS 2 Plastic Latches
NBB-10245 13.01" x 13.01" x 7.04" 12.14" x 12.14" x 6.79" Opaque, Hinged Cover Indoor (Not UV Stabilized) UL94-5VA UL94-5VA ABS Poly Blend ABS Poly Blend 2 Plastic Latches
NBB-10265 13.01" x 13.01" x 7.04" 12.14" x 12.14" x 6.79" Clear, Hinged Cover Indoor (Not UV Stabilized) UL94-5VA UL94-V0 ABS Poly Blend Clear Polycarbonate 2 Plastic Latches
NBB-15245 13.01" x 13.01" x 7.04" 12.14" x 12.14" x 6.79" Opaque, Hinged Cover Outdoor (UV Stabilized) UL94-5VA UL94-5VA Poly PBT Blend Poly PBT Blend 2 Plastic Latches
NBB-22247 15.68" x 11.73" x 6.30" 14.88" x 10.89" x 6.03" Opaque, Hinged Cover Indoor (Not UV Stabilized) UL94-HB UL94-HB ABS ABS 2 Plastic Latches
NBB-10247 15.68" x 11.73" x 6.30" 14.88" x 10.89" x 6.03" Opaque, Hinged Cover Indoor (Not UV Stabilized) UL94-5VA UL94-5VA ABS Poly Blend ABS Poly Blend 2 Plastic Latches
NBB-10267 15.68" x 11.73" x 6.30" 14.88" x 10.89" x 6.03" Clear, Hinged Cover Indoor (Not UV Stabilized) UL94-5VA UL94-V0 ABS Poly Blend Clear Polycarbonate 2 Plastic Latches
NBB-15247 15.68" x 11.73" x 6.30" 14.88" x 10.89" x 6.03" Opaque, Hinged Cover Outdoor (UV Stabilized) UL94-5VA UL94-5VA Poly PBT Blend Poly PBT Blend 2 Plastic Latches
NBB-22251 14.59" x 10.64" x 5.92" 13.76" x 9.82" x 5.64" Opaque, Hinged Cover Indoor (Not UV Stabilized) UL94-HB UL94-HB ABS ABS 2 Plastic Latches
NBB-10251 14.59" x 10.64" x 5.92" 13.76" x 9.82" x 5.64" Opaque, Hinged Cover Indoor (Not UV Stabilized) UL94-5VA UL94-5VA ABS Poly Blend ABS Poly Blend 2 Plastic Latches
NBB-10271 14.59" x 10.64" x 5.92" 13.76" x 9.82" x 5.64" Clear, Hinged Cover Indoor (Not UV Stabilized) UL94-5VA UL94-V0 ABS Poly Blend Clear Polycarbonate 2 Plastic Latches
NBB-22243 11.28" x 7.48" x 5.51" 10.46" x 6.65" x 5.25" Opaque, Hinged Cover Indoor (Not UV Stabilized) UL94-HB UL94-HB ABS ABS 2 Plastic Latches
NBB-10243 11.28" x 7.48" x 5.51" 10.46" x 6.65" x 5.25" Opaque, Hinged Cover Indoor (Not UV Stabilized) UL94-5VA UL94-5VA ABS Poly Blend ABS Poly Blend 2 Plastic Latches
NBB-10263 11.28" x 7.48" x 5.51" 10.46" x 6.65" x 5.25" Clear, Hinged Cover Indoor (Not UV Stabilized) UL94-5VA UL94-V0 ABS Poly Blend Clear Polycarbonate 2 Plastic Latches
NBB-15243 11.28" x 7.48" x 5.51" 10.46" x 6.65" x 5.25" Opaque, Hinged Cover Outdoor (UV Stabilized) UL94-5VA UL94-5VA Poly PBT Blend Poly PBT Blend 2 Plastic Latches
NBB-10261 10.73" x 6.79" x 4.33" 9.84" x 5.90" x 4.07" Clear, Hinged Cover Indoor (Not UV Stabilized) UL94-5VA UL94-V0 ABS Poly Blend Clear Polycarbonate 2 Plastic Latches
NBB-22241 10.73" x 6.79" x 4.33" 9.84" x 5.90" x 4.07" Opaque, Hinged Cover Indoor (Not UV Stabilized) UL94-HB UL94-HB ABS ABS 2 Plastic Latches
NBB-10241 10.73" x 6.79" x 4.33" 9.84" x 5.90" x 4.07" Opaque, Hinged Cover Indoor (Not UV Stabilized) UL94-5VA UL94-5VA ABS Poly Blend ABS Poly Blend 2 Plastic Latches
NBB-15260 5.91" x 5.91" x 3.57" 5.04" x 5.04" x 3.27" Opaque, Hinged Cover Outdoor (UV Stabilized) UL94-5VA UL94-5A Poly PBT Blend Clear Polycarbonate 2 Plastic Latches
NBB-15240 5.91" x 5.91" x 3.57" 5.04" x 5.04" x 3.27" Opaque, Hinged Cover Outdoor (UV Stabilized) UL94-5VA UL94-5VA Poly PBT Blend Poly PBT Blend 2 Plastic Latches
NBB-10260 5.91" x 5.91" x 3.57" 5.04" x 5.04" x 3.27" Clear, Hinged Cover Indoor (Not UV Stabilized) UL94-5VA UL94-V0 ABS Poly Blend Clear Polycarbonate 2 Plastic Latches
NBB-10240 5.91" x 5.91" x 3.57" 5.04" x 5.04" x 3.27" Opaque, Hinged Cover Indoor (Not UV Stabilized) UL94-5VA UL94-5VA ABS Poly Blend ABS Poly Blend 2 Plastic Latches
NBB-22240 5.91" x 5.91" x 3.57" 5.04" x 5.04" x 3.27" Opaque, Hinged Cover Indoor (Not UV Stabilized) UL94-HB UL94-HB ABS ABS 2 Plastic Latches
