NEMA Box ABS Poly Blend NBB-10267
  • NBB Series NEMA Box

Product Details

Model # NBB-10267 NBB Series NEMA Box

• Designed to IP66 of IEC 529 and NEMA 1, 2, 3, 3R, 4, 4X, 12, and 13 specifications
• UL Listed to UL508-4X requirements
• Molded out of light gray material with UL94-5VB flammability rating. Suggested service
temperature range -40°C to 70°C
• Non-metallic latches and hinges
• Cover includes gray polyurethane gasket
• Unit comes with wall mounting brackets and screws. Clear doors, for all models, are molded out of polycarbonate material with UL94-V0 flammability rating

See Other Models Search by Size See Accessories Check Stock / Pricing
External Size L x W x D: 15.68" x 11.73" x 6.30"
Internal Size L x W x D: 14.88" x 10.89" x 6.03"
Weight: 4.2 lbs
Color: Light Gray
RoHS Certified: Always Compliant
Cover Style: Clear, Hinged Cover
Indoor / Outdoor: Indoor (Not UV Stabilized)
Flammability Rating: UL94-5VA
Door Flammability Rating: UL94-V0
Type of Plastic: ABS Poly Blend
Door Type of Plastic: Clear Polycarbonate
UL Rating: UL508
Gasket Type: Polyurethane
Service Temperature Min: -40°C
Service Temperature Max: 70°C
Latch Style: 2 Plastic Latches
Mounting Style: Mounting Brackets
NEMA Rating: NEMA 1, NEMA 4, NEMA 4X
IP Rating: 66

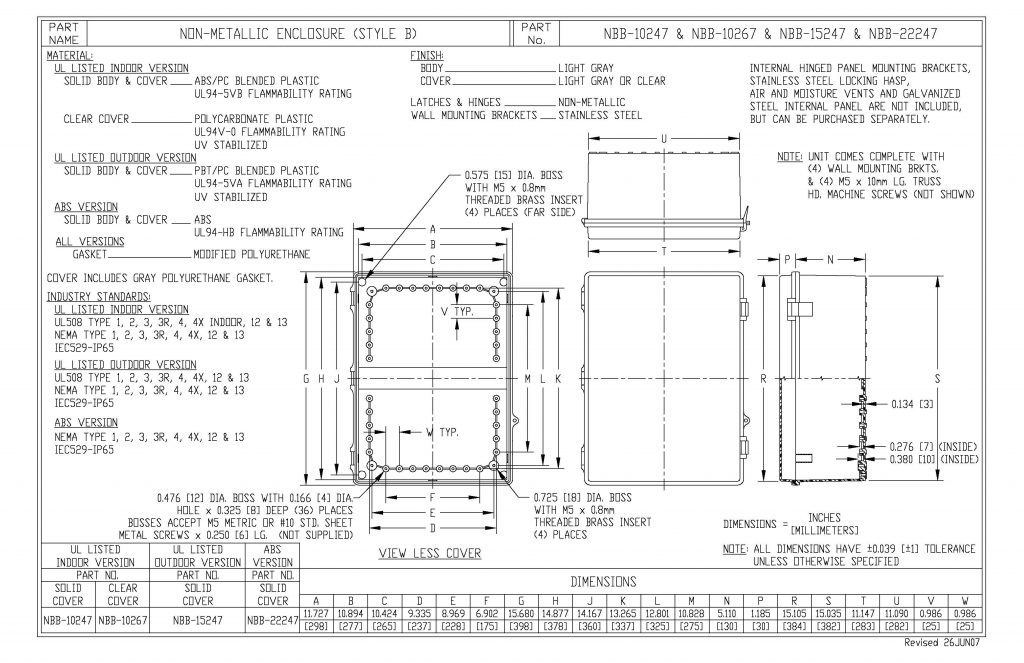

hb10247.pdf hb10247.dxf
