Specifying a NEMA 2 enclosure is a bit like wearing a cap for a stroll through a greenhouse: you are not bracing for a thunderstorm, but you do expect the occasional drip from above. NEMA 2 is the indoor rating that sits one rung up from NEMA 1, adding protection against falling water to a basic level of protection.
NEMA 2 is a protection rating defined by the National Electrical Manufacturers Association for indoor electrical enclosures. It carries forward everything NEMA 1 provides, namely a guard against accidental contact with energized parts and against the ingress of solid objects like fingers, tools, and falling dirt. On top of that baseline, NEMA 2 adds protection against the ingress of dripping and light splashing of non-corrosive liquids.
In practical terms, that water protection is why NEMA 2 enclosures are called “drip-tight” enclosures. They defend against condensation rolling off cold pipes, leaks from a room one floor up, and the occasional splash from a passing mop bucket.
Our guide explains what the NEMA 2 rating actually covers, where it fits in the broader NEMA hierarchy, and how to know when something heavier is the smarter call. For full definitions of every NEMA rating, the NEMA Rating Guide for Electronic Enclosures is the companion reference.
NEMA 2 is roughly equivalent to an IP11 rating in the European IP system, though the test methods are not identical. NEMA and IP ratings are similar but not strictly interchangeable. If global compliance matters for a design, both ratings should be specified directly rather than translated.

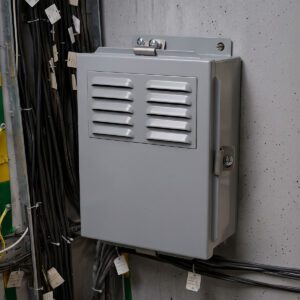

NEMA 2 enclosures are commonly specified for large electrical equipment, such as motor control centers, dry transformers, VFD, motor starters, etc. What do these types of equipment have in common? They generate significant heat that would otherwise be trapped inside a sealed enclosure. In fact, most NEMA 2 enclosures are ventilated to allow heat to escape. The vents are louvered pointing downward so falling water does not enter. Often, NEMA 2 enclosures include drip caps around the roof of the enclosure.
Condensation from a dripping pipe or equipment is not uncommon. We see these enclosures in mechanical rooms for pools, HVAC equipment, commercial laundries, car washes, etc. However, the most common locations are clean rooms where condensation is not a normal condition but should be guarded against.
No. NEMA 2 is an indoor-only rating and offers no protection against rain, sleet, snow, windblown dust, or ice formation.
NEMA 2 protects against water, so it may sound weatherproof. But the water it stops is the kind that drips straight down at low velocity. In contrast, outdoor weather drives water sideways, freezes and expands inside seams, and blows dust into openings. Those are entirely different conditions.
For outdoor enclosures, the appropriate ratings begin at NEMA 3 and go up from there. For demanding outdoor or factory washdown environments, most people select NEMA 4 and NEMA 4X enclosures.
NEMA 2 makes sense when an enclosure lives indoors, in a clean space where condensation, dripping, or light splashing is a possibility but washdowns and corrosive chemicals are not.
As previously mentioned, NEMA 2 is commonly specified for large equipment (transformers, MCCs, switchgear) where waste heat must be vented and the enclosure must be fabricated in a specific form factor.
For small enclosures used as control panels, engineers select an off-the-shelf NEMA 4 or NEMA 12 enclosure. The cost is less than the price of a custom enclosure, and a wide selection is readily available. One popular option is our NEMA 4 SNC steel enclosure, which satisfies the NEMA 2 requirements but adds far more protection at little or no premium.
Where NEMA 2 fits is easier to see in context. The rating neighbors on either side cover related but distinct conditions.
NEMA 1 is the bare-bones indoor rating. It blocks fingers and falling dirt, full stop. It uses no gasket and offers no water protection. A NEMA 1 enclosure belongs in a clean, dry space. Bud’s JBH Series Hinged Cover Steel Junction Boxes are typical NEMA 1 enclosures.
NEMA 3R is the outdoor counterpart, designed for sheltered outdoor locations like the side of a building or under an overhang. It protects against rain, sleet, snow, and ice formation, and it includes a drainage hole to shed water that does get in. Bud’s 3R Series steel enclosures are a popular fit for outdoor electrical panels and junction boxes.
NEMA 12 is the indoor rating that most engineers reach for when NEMA 2 is not quite enough. It’s the workhorse rating for factory floors and automated production cells, especially those near machining centers. The SN Series Steel Electronics Enclosures cover this territory at Bud.
While nearly all our rated products meet NEMA 2 requirements, we describe them by their highest ratings. We have thousands of enclosures to pick from, most of them shipping from stock next day.
Many of these enclosures are part of Bud’s 5-Day Modifications Program, which puts custom cutouts for cables, switches, displays, and connectors on a one-week clock instead of the usual two-to-three-week industry turnaround. For projects where time-to-market matters, that schedule can be the deciding factor.
