PN-1320-ACMB

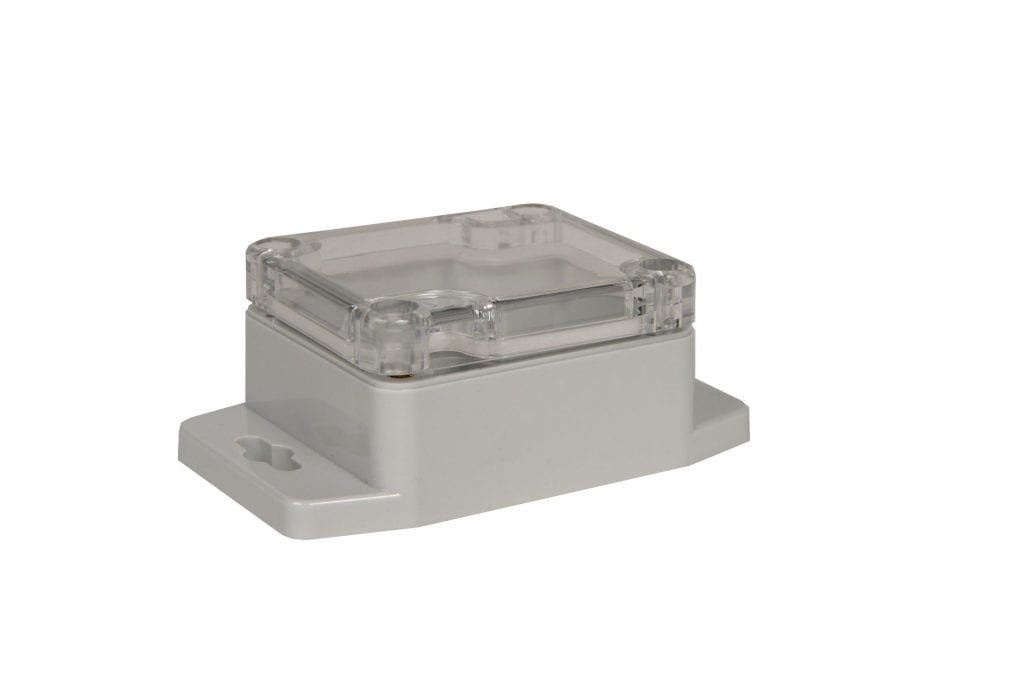

IP68 NEMA 6P Box with Clear Cover and Mounting Brackets PN-1320-ACMB

Product Details

Model # PN-1320-ACMB IP68 NEMA 6P PN-A Series Box
  • UL508A & NEMA 1, 2, 3, 4, 4x, 6, 6P 12, and 13 enclosure specifications
  • Designed to IP68 (IEC 529)
  • UL Listed (E194432 Vol 1)
  • Wall mounting holes and cover attaching screws are outside the sealing area thus preventing ingress of moisture and dust.
  • Most models have internal guide slots for mounting PCB assemblies vertically.
  • Internal bosses allow mounting of PCBs horizontally or for connection of terminals etc.
  • Threaded brass inserts.
  • Cover screws stainless steel, non-magnetic and fasten into threaded brass inserts.
  • Gasket Material: Molded Silicon (uninstalled)
See Other Models Search by Size See Accessories Check Stock / Pricing
External Size L x W x D: 2.52" x 2.28" x 1.38"
Internal Size L x W x D: 2.28" x 2.05" x 1.18"
Weight: 0.2 lbs
Color: Light Gray
RoHS Certified: Always Compliant
NEMA Rating: NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13
IP Rating: 68
Features: Molded Silicon Gasket
Mounting Style: Mounting Flanges
Cover Style: Clear, Screw Down Cover
Gasket Type: Continuous Molded Silicone
Indoor / Outdoor: Outdoor (UV Stabilized)
Flammability Rating: UL94-HB
Door Flammability Rating: UL94-HB
Type of Plastic: Gray Polycarbonate
Door Type of Plastic: Gray Polycarbonate
UL Rating: UL508
Service Temperature Min: -40°C
Service Temperature Max: 120°C
hbpn1320amb-3-4-1-1-1.pdf hbpn1320amb-3-4-1-1-1.dxf

Drawing
