PTQ-11035-C

Fiberglass Box with Stainless Steel Latch PTQ-11035-C
2 Videos

Product Details

Model # PTQ-11035-C PTQ Series Fiberglass Box
  • Body Made of Gray Polycarbonate (PC) resin 10% glass fiber filled
  • Hinged Cover made of Clear Polycarbonate (PC)
  • High impact resistance IK08
  • Stainless steel latch
  • IP67 TUV rating to keep out dust and water in extreme conditions (meets NEMA Type 6).
  • UL508 / UL tested for type 4X, listed #E194432.
  • RoHs compliant
  • Non-chlorinated & non-brominated flame retardant With clear cover UL-94 V0 and body UL-94 V0 and UL-94 5VA rating.
  • Suitable for outdoor use with respect to exposure to Ultraviolet Light, Water Exposure and Immersion in accordance with UL 746C.
  • -40c to +95c extended exposure condition
  • Good chemical resistance
  • Continuous gasket
  • View Nema/IP Accessories
 Compare Sizes and Models See Accessories Request Modifications Check Stock / Pricing
External Size L x W x D: 3.54" x 4.72" x 2.76"
Internal Size L x W x D: 3.42" x 4.60" x 2.64"
Weight: 0.3 lbs
Color: Light Gray
RoHS Certified: Always Compliant
NEMA Rating: NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 6
IP Rating: 67
Features: 10% Fiberglas Reinforced Plastic
Mounting Style: Mounting Brackets
Cover Style: Clear, Hinged Cover
Latch Style: Stainless Steel
Gasket Type: RAKU-PUR® Foam Gasket
Indoor / Outdoor: Outdoor (UV Stabilized)
Flammability Rating: UL94-5VA
Door Flammability Rating: UL94-V0
Type of Plastic: Gray Polycarbonate
Door Type of Plastic: Polycarbonate
UL Rating: UL508
Service Temperature Min: -40°C
Service Temperature Max: 95°C
Hinge Location: Long Side
hbptq11035.pdf hbptq11035-2-3-1-1.dxf file/d/12ZTDRDA1p-9J3yPvKST97IKbM5V69BXp/view?usp=drivesdk

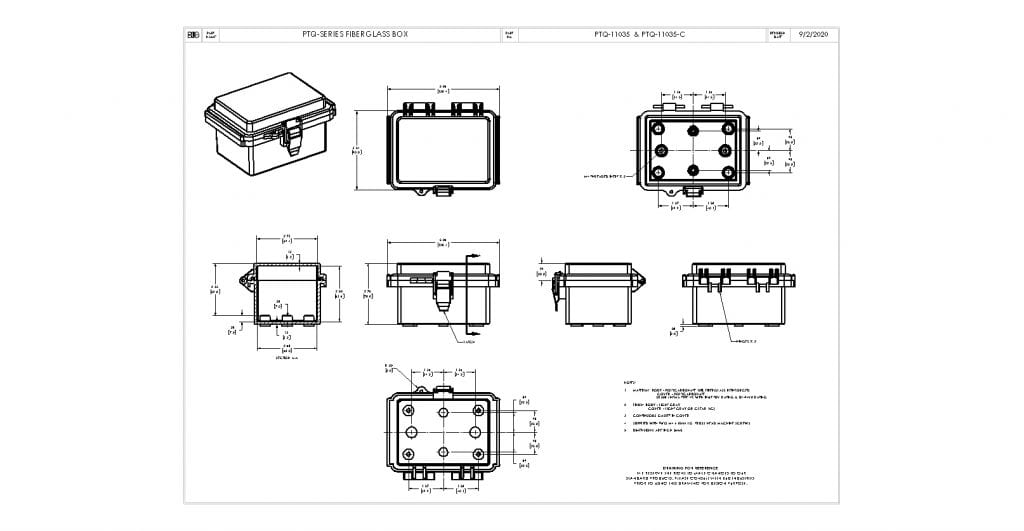

Drawing

PTQ-11035-C Dimensions

OTHER MODELS IN THIS SERIES

Model # External Dimensions Internal Dimensions NEMA Rating IP Rating Latch Style Gasket Type
PTQ-11051-C 10.21" x 6.28" x 5.10" 10.216.285.1 9.90" x 5.96" x 4.78" NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 6 67 Stainless Steel RAKU-PUR® Foam Gasket
PTQ-11051 10.21" x 6.28" x 5.10" 10.216.285.1 9.90" x 5.96" x 4.78" NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 6 67 Stainless Steel RAKU-PUR® Foam Gasket
PTQ-11050 10.24" x 6.30" x 3.94" 10.246.33.94 9.15" x 5.28" x 3.41" NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 6 67 Stainless Steel RAKU-PUR® Foam Gasket
PTQ-11050-C 10.24" x 6.30" x 3.94" 10.246.33.94 9.15" x 5.28" x 3.41" NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 6 67 Stainless Steel RAKU-PUR® Foam Gasket
PTQ-11057 11.02" x 7.48" x 5.51" 11.027.485.51 9.87" x 6.34" x 4.82" NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 6 67 Stainless Steel RAKU-PUR® Foam Gasket
PTQ-11057-C 11.02" x 7.48" x 5.51" 11.027.485.51 9.87" x 6.34" x 4.82" NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 6 67 Stainless Steel RAKU-PUR® Foam Gasket
PTQ-11066 11.81" x 11.81" x 7.09" 11.8111.817.09 11.69" x 11.69" x 6.97" NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 6 67 Stainless Steel RAKU-PUR® Foam Gasket
PTQ-11066-C 11.81" x 11.81" x 7.09" 11.8111.817.09 11.69" x 11.69" x 6.97" NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 6 67 Stainless Steel RAKU-PUR® Foam Gasket
PTQ-11059 11.81" x 7.87" x 5.91" 11.817.875.91 10.51" x 6.70" x 5.21" NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 6 67 Stainless Steel RAKU-PUR® Foam Gasket
PTQ-11059-C 11.81" x 7.87" x 5.91" 11.817.875.91 10.51" x 6.70" x 5.21" NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 6 67 Stainless Steel RAKU-PUR® Foam Gasket
PTQ-11070 13.78" x 13.78" x 5.91" 13.7813.785.91 13.66" x 13.66" x 5.79" NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 6 67 Stainless Steel RAKU-PUR® Foam Gasket
PTQ-11070-C 13.78" x 13.78" x 5.91" 13.7813.785.91 13.66" x 13.66" x 5.79" NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 6 67 Stainless Steel RAKU-PUR® Foam Gasket
PTQ-11072 13.78" x 17.72" x 4.72" 13.7817.724.72 13.66" x 17.60" x 4.60" NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 6 67 Stainless Steel RAKU-PUR® Foam Gasket
PTQ-11072-C 13.78" x 17.72" x 4.72" 13.7817.724.72 13.66" x 17.60" x 4.60" NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 6 67 Stainless Steel RAKU-PUR® Foam Gasket
PTQ-11064 14.96" x 11.02" x 5.12" 14.9611.025.12 13.84" x 9.89" x 4.42" NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 6 67 Stainless Steel RAKU-PUR® Foam Gasket
PTQ-11064-C 14.96" x 11.02" x 5.12" 14.9611.025.12 13.84" x 9.89" x 4.42" NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 6 67 Stainless Steel RAKU-PUR® Foam Gasket
PTQ-11068 15.75" x 11.81" x 5.91" 15.7511.815.91 15.51" x 11.57" x 5.21" NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 6 67 Stainless Steel RAKU-PUR® Foam Gasket
PTQ-11068-C 15.75" x 11.81" x 5.91" 15.7511.815.91 15.51" x 11.57" x 5.21" NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 6 67 Stainless Steel RAKU-PUR® Foam Gasket
PTQ-11077 15.75" x 23.62" x 7.09" 15.7523.627.09 15.63" x 23.50" x 6.97" NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 6 67 Stainless Steel RAKU-PUR® Foam Gasket
PTQ-11077-C 15.75" x 23.62" x 7.09" 15.7523.627.09 15.63" x 23.50" x 6.97" NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 6 67 Stainless Steel RAKU-PUR® Foam Gasket
PTQ-11073 17.72" x 13.78" x 6.30" 17.7213.786.3 17.87" x 13.54" x 5.60" NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 6 67 Stainless Steel RAKU-PUR® Foam Gasket
PTQ-11073-C 17.72" x 13.78" x 6.30" 17.7213.786.3 17.87" x 13.54" x 5.60" NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 6 67 Stainless Steel RAKU-PUR® Foam Gasket
PTQ-11076 19.69" x 15.75" x 7.87" 19.6915.757.87 19.45" x 15.51" x 7.18" NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 6 67 Stainless Steel RAKU-PUR® Foam Gasket
PTQ-11076-C 19.69" x 15.75" x 7.87" 19.6915.757.87 19.45" x 15.51" x 7.18" NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 6 67 Stainless Steel RAKU-PUR® Foam Gasket
PTQ-11081 20.87" x 28.74" x 7.28" 20.8728.747.28 20.75" x 28.62" x 7.16" NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 6 67 Stainless Steel RAKU-PUR® Foam Gasket
PTQ-11080 24.80" x 20.87" x 10.04" 24.820.8710.04 24.28" x 20.55" x 9.30" NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 6 67 Stainless Steel RAKU-PUR® Foam Gasket
PTQ-11083 24.80" x 32.68" x 7.28" 24.832.687.28 24.68" x 32.56" x 7.16" NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 6 67 Stainless Steel RAKU-PUR® Foam Gasket
PTQ-11035 3.54" x 4.72" x 2.76" 3.544.722.76 3.42" x 4.60" x 2.64" NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 6 67 Stainless Steel RAKU-PUR® Foam Gasket
PTQ-11035-C 3.54" x 4.72" x 2.76" 3.544.722.76 3.42" x 4.60" x 2.64" NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 6 67 Stainless Steel RAKU-PUR® Foam Gasket
PTQ-11038 3.94" x 5.91" x 3.35" 3.945.913.35 3.82" x 5.79" x 3.23" NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 6 67 Stainless Steel RAKU-PUR® Foam Gasket
PTQ-11038-C 3.94" x 5.91" x 3.35" 3.945.913.35 3.82" x 5.79" x 3.23" NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 6 67 Stainless Steel RAKU-PUR® Foam Gasket
PTQ-11042 4.33" x 10.24" x 3.94" 4.3310.243.94 4.21" x 10.12" x 3.82" NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 6 67 Stainless Steel RAKU-PUR® Foam Gasket
PTQ-11042-C 4.33" x 10.24" x 3.94" 4.3310.243.94 4.21" x 10.12" x 3.82" NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 6 67 Stainless Steel RAKU-PUR® Foam Gasket
PTQ-11044 5.31" x 7.28" x 3.35" 5.317.283.35 5.19" x 7.16" x 3.23" NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 6 67 Stainless Steel RAKU-PUR® Foam Gasket
PTQ-11044-C 5.31" x 7.28" x 3.35" 5.317.283.35 5.19" x 7.16" x 3.23" NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 6 67 Stainless Steel RAKU-PUR® Foam Gasket
PTQ-11046 5.91" x 5.91" x 3.54" 5.915.913.54 4.59" x 4.59" x 3.11" NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 6 67 Stainless Steel RAKU-PUR® Foam Gasket
PTQ-11046-C 5.91" x 5.91" x 3.54" 5.915.913.54 4.59" x 4.59" x 3.11" NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 6 67 Stainless Steel RAKU-PUR® Foam Gasket
PTQ-11047 5.91" x 5.91" x 4.72" 5.915.914.72 5.79" x 5.79" x 4.60" NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 6 67 Stainless Steel RAKU-PUR® Foam Gasket
PTQ-11047-C 5.91" x 5.91" x 4.72" 5.915.914.72 5.79" x 5.79" x 4.60" NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 6 67 Stainless Steel RAKU-PUR® Foam Gasket
PTQ-11052 6.69" x 8.66" x 4.33" 6.698.664.33 6.57" x 8.54" x 4.21" NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 6 67 Stainless Steel RAKU-PUR® Foam Gasket
PTQ-11052-C 6.69" x 8.66" x 4.33" 6.698.664.33 6.57" x 8.54" x 4.21" NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 6 67 Stainless Steel RAKU-PUR® Foam Gasket
PTQ-11058 7.87" x 11.81" x 5.12" 7.8711.815.12 7.75" x 11.69" x 5.00" NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 6 67 Stainless Steel RAKU-PUR® Foam Gasket
PTQ-11058-C 7.87" x 11.81" x 5.12" 7.8711.815.12 7.75" x 11.69" x 5.00" NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 6 67 Stainless Steel RAKU-PUR® Foam Gasket
PTQ-11048 8.27" x 6.30" x 3.94" 8.276.33.94 7.27" x 5.40" x 3.36" NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 6 67 Stainless Steel RAKU-PUR® Foam Gasket
PTQ-11048-C 8.27" x 6.30" x 3.94" 8.276.33.94 7.27" x 5.40" x 3.36" NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 6 67 Stainless Steel RAKU-PUR® Foam Gasket
PTQ-11055 8.27" x 8.27" x 5.12" 8.278.275.12 8.15" x 8.15" x 5.00" NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 6 67 Stainless Steel RAKU-PUR® Foam Gasket
PTQ-11055-C 8.27" x 8.27" x 5.12" 8.278.275.12 8.15" x 8.15" x 5.00" NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 6 67 Stainless Steel RAKU-PUR® Foam Gasket
PTQ-11062 9.84" x 13.78" x 7.09" 9.8413.787.09 9.72" x 13.66" x 6.97" NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 6 67 Stainless Steel RAKU-PUR® Foam Gasket
PTQ-11062-C 9.84" x 13.78" x 7.09" 9.8413.787.09 9.72" x 13.66" x 6.97" NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 6 67 Stainless Steel RAKU-PUR® Foam Gasket
