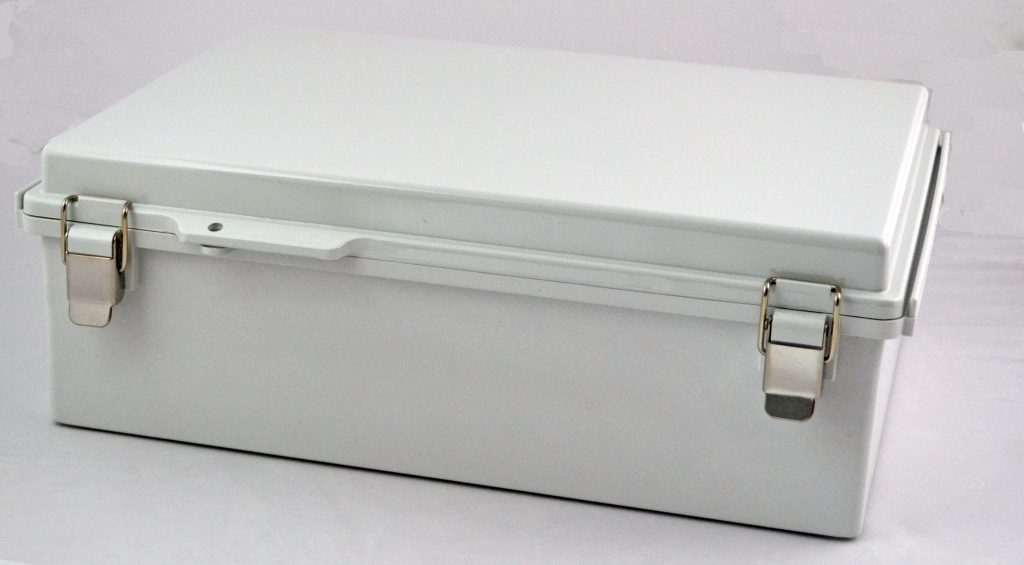

Fiberglass Box with Stainless Steel Latch PTQ-11064
  • Fiberglass Box with Stainless Steel Latch PTQ-11064

Product Details

Model # PTQ-11064 PTQ Series Fiberglass Box
  • Body Made of Gray Polycarbonate (PC) resin 10% glass fiber filled
  • Hinged Cover made of Gray Polycarbonate (PC)
  • High impact resistance
  • stainless steel latch
  • IP-67 TUV rating to keep out dust and water in extreme conditions (meets NEMA Type 6).
  • UL508 / UL tested for type 4X, listed #E343339.
  • RoHs compliant
  • Non-chlorinated & non-brominated flame retardant With UL-94 V0 rating.
  • Suitable for outdoor use with respect to exposure to Ultraviolet Light, Water Exposure and Immersion in accordance with UL 746C.
  • -40c to +95c extended exposure condition
  • Good chemical resistance
  • Continuous gasket
See Other Models Search by Size See Accessories Check Stock / Pricing
External Size L x W x D: 14.96" x 11.02" x 5.12"
Internal Size L x W x D: 13.84" x 9.89" x 4.42"
Weight: 12.32 lbs
Color: Light Gray
RoHS Certified: Always Compliant
Features: 10% Fiberglass Reinforced Plastic
Indoor / Outdoor: Outdoor (UV Stabilized)
Flammability Rating: UL94-V0
Door Flammability Rating: UL94-V0
Type of Plastic: Polycarbonate
Door Type of Plastic: Polycarbonate
UL Rating: UL508
Service Temperature Min: -40°C
Service Temperature Max: 120°C
hbptq11064.pdf hbptq11064.dxf
