PTQ-11066-C

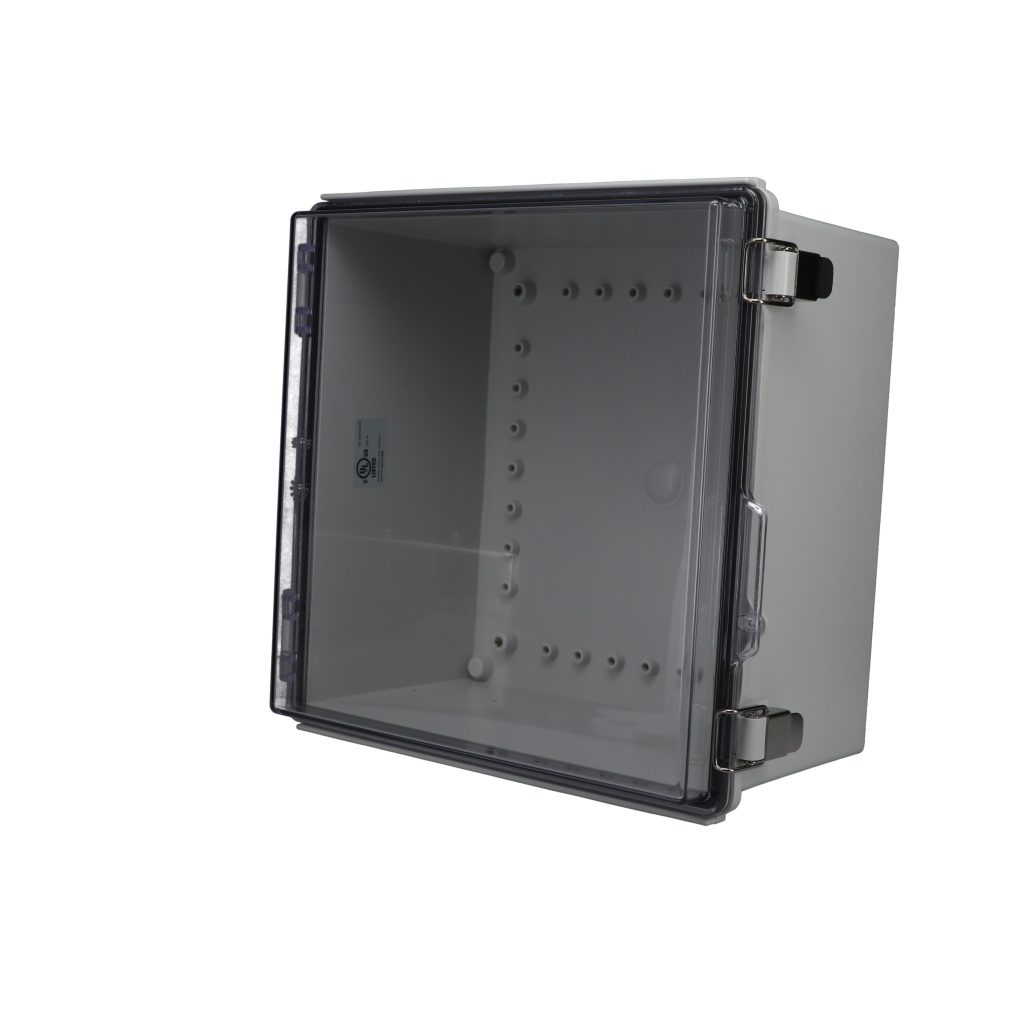

Fiberglass Box with Stainless Steel Latch PTQ-11066-C

Product Details

Model # PTQ-11066-C PTQ Series Fiberglass Box
  • Body Made of Gray Polycarbonate (PC) resin 10% glass fiber filled
  • Hinged Cover made of Clear Polycarbonate (PC)
  • High impact resistance
  • Stainless steel latch
  • IP67 rating to keep out dust and water in extreme conditions (meets NEMA Type 6).
  • UL508 / UL tested for type 4X, listed E194432.
  • RoHs compliant
  • Non-chlorinated & non-brominated flame retardant With UL-94 V0 rating.
  • Suitable for outdoor use with respect to exposure to Ultraviolet Light, Water Exposure and Immersion in accordance with UL 746C.
  • -40c to +95c extended exposure condition
  • Good chemical resistance
  • Continuous gasket
  • View Nema/IP Accessories
See Other Models Search by Size See Accessories Check Stock / Pricing
External Size L x W x D: 11.81" x 11.81" x 7.09"
Internal Size L x W x D: 11.69" x 11.69" x 6.97"
Weight: 1.9 lbs
Color: Light Gray
RoHS Certified: Always Compliant
NEMA Rating: NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 6
IP Rating: 67
Features: 10% Fiberglas Reinforced Plastic
Mounting Style: Mounting Brackets
Cover Style: Clear, Hinged Cover
Latch Style: Stainless Steel
Gasket Type: RAKU-PUR® Foam Gasket
Indoor / Outdoor: Outdoor (UV Stabilized)
Flammability Rating: UL94-V0
Door Flammability Rating: UL94-V0
Type of Plastic: Gray Polycarbonate
Door Type of Plastic: Polycarbonate
UL Rating: UL508
Service Temperature Min: -40°C
Service Temperature Max: 120°C
Hinge Location: Long Side
hbptq11066-2-1-3-1-1.pdf hbptq11066-2-1-3-1-1.dxf

Drawing
