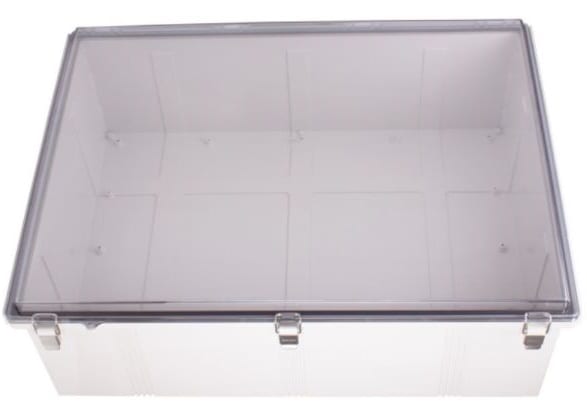

Name: Fiberglass Box with Stainless Steel Latch PTQ-11077-C
Brand: Bud Industries
Availability: InStock

Fiberglass Box with Stainless Steel Latch PTQ-11077-C

Model # PTQ-11077-C PTQ Series Fiberglass Box

Body made of gray polycarbonate (PC) resin 10% glass fiber filled
Hinged cover made of clear polycarbonate (PC)
High impact resistance IK08
Stainless steel latch
IP67 TUV rating to keep out dust and water in extreme conditions (meets NEMA Type 6)
UL508 / UL tested for type 4X, listed #E194432
RoHs compliant
Non-chlorinated & non-brominated flame retardant With clear cover UL-94 V0 and body UL-94 V0 and UL-94 5VA rating
Suitable for outdoor use with respect to exposure to ultraviolet light, water exposure and immersion in accordance with UL 746C
-40C to +95C extended exposure condition
Good chemical resistance
Continuous gasket
View NEMA/IP Accessories

Check Stock / Pricing Request Modifications Compare Sizes and Models See Accessories

External Size L x W x D: 23.62" x 15.75" x 7.09"

Internal Size L x W x D: 23.50" x 15.63" x 6.97"

Weight: 9.5 lbs

Color: Light Gray

RoHS Certified: Always Compliant

NEMA Rating: NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 6

IP Rating: IP67

Features: 10% Fiberglas Reinforced Plastic

Mounting Style: Mounting Brackets

Cover Style: Clear, Hinged Cover

Latch Style: Stainless Steel

Gasket Type: RAKU-PUR® Foam Gasket

Indoor / Outdoor: Outdoor (UV Stabilized)

Flammability Rating: UL94-5VA

Door Flammability Rating: UL94-V0

Type of Plastic: Gray Polycarbonate

Door Type of Plastic: Clear Polycarbonate

UL Rating: UL508

Service Temperature Min: -40°C

Service Temperature Max: 95°C

Hinge Location: Long Side

Drawing

OTHER MODELS IN THIS SERIES

Model #	External Dimensions	Internal Dimensions	Cover Style	Indoor / Outdoor
PTQ-11042-C	10.20" x 4.33" x 3.94" 10.24.333.94	10.10" x 4.21" x 3.82"	Clear, Hinged Cover	Outdoor (UV Stabilized)
PTQ-11042	10.20" x 4.33" x 3.94" 10.24.333.94	10.10" x 4.21" x 3.82"	Opaque, Hinged Cover	Outdoor (UV Stabilized)
PTQ-11051	10.21" x 6.28" x 5.10" 10.216.285.1	9.90" x 5.96" x 4.78"	Opaque, Hinged Cover	Outdoor (UV Stabilized)
PTQ-11051-C	10.21" x 6.28" x 5.10" 10.216.285.1	9.90" x 5.96" x 4.78"	Clear, Hinged Cover	Outdoor (UV Stabilized)
PTQ-11050	10.24" x 6.30" x 3.94" 10.246.33.94	9.15" x 5.28" x 3.41"	Opaque, Hinged Cover	Outdoor (UV Stabilized)
PTQ-11050-C	10.24" x 6.30" x 3.94" 10.246.33.94	9.15" x 5.28" x 3.41"	Clear, Hinged Cover	Outdoor (UV Stabilized)
PTQ-11041	10.57" x 6.30" x 5.12" 10.576.35.12	9.62" x 5.35" x 4.86"	Opaque, Hinged Cover	Outdoor (UV Stabilized)
PTQ-11041-C	10.57" x 6.30" x 5.12" 10.576.35.12	9.62" x 5.35" x 4.86"	Clear, Hinged Cover	Outdoor (UV Stabilized)
PTQ-11045	10.96" x 6.69" x 4.33" 10.966.694.33	10.01" x 5.74" x 4.07"	Opaque, Hinged Cover	Outdoor (UV Stabilized)
PTQ-11045-C	10.96" x 6.69" x 4.33" 10.966.694.33	10.01" x 5.74" x 4.07"	Clear, Hinged Cover	Outdoor (UV Stabilized)
PTQ-11057	11.02" x 7.48" x 5.51" 11.027.485.51	9.87" x 6.34" x 4.82"	Opaque, Hinged Cover	Outdoor (UV Stabilized)
PTQ-11057-C	11.02" x 7.48" x 5.51" 11.027.485.51	9.87" x 6.34" x 4.82"	Clear, Hinged Cover	Outdoor (UV Stabilized)
PTQ-11054-C	11.35" x 11.02" x 5.12" 11.3511.025.12	10.40" x 10.07" x 4.86"	Clear, Hinged Cover	Outdoor (UV Stabilized)
PTQ-11054	11.35" x 11.02" x 5.12" 11.3511.025.12	10.40" x 10.07" x 4.86"	Opaque, Hinged Cover	Outdoor (UV Stabilized)
PTQ-11049	11.35" x 7.48" x 3.95" 11.357.483.95	10.40" x 6.53" x 3.69"	Opaque, Hinged Cover	Outdoor (UV Stabilized)
PTQ-11049-C	11.35" x 7.48" x 3.95" 11.357.483.95	10.40" x 6.53" x 3.69"	Clear, Hinged Cover	Outdoor (UV Stabilized)
PTQ-11058-C	11.80" x 7.87" x 5.12" 11.87.875.12	11.60" x 7.75" x 5.00"	Clear, Hinged Cover	Outdoor (UV Stabilized)
PTQ-11058	11.80" x 7.87" x 5.12" 11.87.875.12	11.60" x 7.75" x 5.00"	Opaque, Hinged Cover	Outdoor (UV Stabilized)
PTQ-11066-C	11.81" x 11.81" x 7.09" 11.8111.817.09	11.69" x 11.60" x 6.97"	Clear, Hinged Cover	Outdoor (UV Stabilized)
PTQ-11066	11.81" x 11.81" x 7.09" 11.8111.817.09	11.69" x 11.60" x 6.97"	Opaque, Hinged Cover	Outdoor (UV Stabilized)
PTQ-11059-C	11.81" x 7.87" x 5.91" 11.817.875.91	10.51" x 6.70" x 5.21"	Clear, Hinged Cover	Outdoor (UV Stabilized)
PTQ-11059	11.81" x 7.87" x 5.91" 11.817.875.91	10.51" x 6.70" x 5.21"	Opaque, Hinged Cover	Outdoor (UV Stabilized)
PTQ-11070-C	13.78" x 13.78" x 5.91" 13.7813.785.91	13.66" x 13.60" x 5.79"	Clear, Hinged Cover	Outdoor (UV Stabilized)
PTQ-11070	13.78" x 13.78" x 5.91" 13.7813.785.91	13.66" x 13.60" x 5.79"	Opaque, Hinged Cover	Outdoor (UV Stabilized)
PTQ-11062	13.78" x 9.84" x 7.09" 13.789.847.09	12.70" x 8.76" x 6.84"	Opaque, Hinged Cover	Outdoor (UV Stabilized)
PTQ-11062-C	13.78" x 9.84" x 7.09" 13.789.847.09	12.70" x 8.76" x 6.84"	Clear, Hinged Cover	Outdoor (UV Stabilized)
PTQ-11053	14.11" x 9.84" x 5.90" 14.119.845.9	13.16" x 8.89" x 5.64"	Opaque, Hinged Cover	Outdoor (UV Stabilized)
PTQ-11053-C	14.11" x 9.84" x 5.90" 14.119.845.9	13.16" x 8.89" x 5.64"	Clear, Hinged Cover	Outdoor (UV Stabilized)
PTQ-11064-C	14.96" x 11.02" x 5.12" 14.9611.025.12	13.84" x 9.89" x 4.42"	Clear, Hinged Cover	Outdoor (UV Stabilized)
PTQ-11064	14.96" x 11.02" x 5.12" 14.9611.025.12	13.84" x 9.89" x 4.42"	Opaque, Hinged Cover	Outdoor (UV Stabilized)
PTQ-11068-C	15.75" x 11.81" x 5.91" 15.7511.815.91	15.51" x 11.50" x 5.21"	Clear, Hinged Cover	Outdoor (UV Stabilized)
PTQ-11068	15.75" x 11.81" x 5.91" 15.7511.815.91	15.51" x 11.50" x 5.21"	Opaque, Hinged Cover	Outdoor (UV Stabilized)
PTQ-11072	17.72" x 13.78" x 4.72" 17.7213.784.72	17.60" x 13.60" x 4.60"	Opaque, Hinged Cover	Outdoor (UV Stabilized)
PTQ-11072-C	17.72" x 13.78" x 4.72" 17.7213.784.72	17.60" x 13.60" x 4.60"	Clear, Hinged Cover	Outdoor (UV Stabilized)
PTQ-11073	17.72" x 13.78" x 6.30" 17.7213.786.3	17.87" x 13.50" x 5.60"	Opaque, Hinged Cover	Outdoor (UV Stabilized)
PTQ-11073-C	17.72" x 13.78" x 6.30" 17.7213.786.3	17.87" x 13.50" x 5.60"	Clear, Hinged Cover	Outdoor (UV Stabilized)
PTQ-11076	19.69" x 15.75" x 7.87" 19.6915.757.87	19.45" x 15.50" x 7.18"	Opaque, Hinged Cover	Outdoor (UV Stabilized)
PTQ-11076-C	19.69" x 15.75" x 7.87" 19.6915.757.87	19.45" x 15.50" x 7.18"	Clear, Hinged Cover	Outdoor (UV Stabilized)
PTQ-11077	23.62" x 15.75" x 7.09" 23.6215.757.09	23.50" x 15.63" x 6.97"	Opaque, Hinged Cover	Outdoor (UV Stabilized)
PTQ-11077-C	23.62" x 15.75" x 7.09" 23.6215.757.09	23.50" x 15.63" x 6.97"	Clear, Hinged Cover	Outdoor (UV Stabilized)
PTQ-11080	24.80" x 20.87" x 10.04" 24.820.8710.04	24.28" x 20.50" x 9.30"	Opaque, Hinged Cover	Outdoor (UV Stabilized)
PTQ-11081	28.74" x 20.87" x 7.28" 28.7420.877.28	28.60" x 20.75" x 7.16"	Opaque, Hinged Cover	Outdoor (UV Stabilized)
PTQ-11083	32.68" x 24.80" x 7.28" 32.6824.87.28	32.50" x 24.68" x 7.16"	Opaque, Hinged Cover	Outdoor (UV Stabilized)
PTQ-11035	4.72" x 3.54" x 2.76" 4.723.542.76	4.60" x 3.42" x 2.64"	Opaque, Hinged Cover	Outdoor (UV Stabilized)
PTQ-11035-C	4.72" x 3.54" x 2.76" 4.723.542.76	4.60" x 3.42" x 2.64"	Clear, Hinged Cover	Outdoor (UV Stabilized)
PTQ-11038-C	5.91" x 3.94" x 3.35" 5.913.943.35	5.79" x 3.82" x 3.23"	Clear, Hinged Cover	Outdoor (UV Stabilized)
PTQ-11038	5.91" x 3.94" x 3.35" 5.913.943.35	5.79" x 3.82" x 3.23"	Opaque, Hinged Cover	Outdoor (UV Stabilized)
PTQ-11046-C	5.91" x 5.91" x 3.55" 5.915.913.55	4.59" x 4.59" x 3.11"	Clear, Hinged Cover	Outdoor (UV Stabilized)
PTQ-11046	5.91" x 5.91" x 3.55" 5.915.913.55	4.59" x 4.59" x 3.11"	Opaque, Hinged Cover	Outdoor (UV Stabilized)
PTQ-11047-C	5.91" x 5.91" x 4.73" 5.915.914.73	5.79" x 5.79" x 4.60"	Clear, Hinged Cover	Outdoor (UV Stabilized)
PTQ-11047	5.91" x 5.91" x 4.73" 5.915.914.73	5.79" x 5.79" x 4.60"	Opaque, Hinged Cover	Outdoor (UV Stabilized)
PTQ-11044-C	7.28" x 5.31" x 3.36" 7.285.313.36	7.16" x 5.19" x 3.23"	Clear, Hinged Cover	Outdoor (UV Stabilized)
PTQ-11044	7.28" x 5.31" x 3.36" 7.285.313.36	7.16" x 5.19" x 3.23"	Opaque, Hinged Cover	Outdoor (UV Stabilized)
PTQ-11036-C	7.61" x 5.31" x 3.94" 7.615.313.94	6.66" x 4.36" x 3.68"	Clear, Hinged Cover	Outdoor (UV Stabilized)
PTQ-11036	7.61" x 5.31" x 3.94" 7.615.313.94	6.66" x 4.36" x 3.68"	Opaque, Hinged Cover	Outdoor (UV Stabilized)
PTQ-11048-C	8.27" x 6.30" x 3.94" 8.276.33.94	7.27" x 5.40" x 3.36"	Clear, Hinged Cover	Outdoor (UV Stabilized)
PTQ-11048	8.27" x 6.30" x 3.94" 8.276.33.94	7.27" x 5.40" x 3.36"	Opaque, Hinged Cover	Outdoor (UV Stabilized)
PTQ-11055-C	8.27" x 8.27" x 5.13" 8.278.275.13	8.15" x 8.15" x 5.00"	Clear, Hinged Cover	Outdoor (UV Stabilized)
PTQ-11055	8.27" x 8.27" x 5.13" 8.278.275.13	8.15" x 8.15" x 5.00"	Opaque, Hinged Cover	Outdoor (UV Stabilized)
PTQ-11040	8.60" x 6.30" x 5.12" 8.66.35.12	7.65" x 5.35" x 4.86"	Opaque, Hinged Cover	Outdoor (UV Stabilized)
PTQ-11040-C	8.60" x 6.30" x 5.12" 8.66.35.12	7.65" x 5.35" x 4.86"	Clear, Hinged Cover	Outdoor (UV Stabilized)
PTQ-11043	8.60" x 8.27" x 3.94" 8.68.273.94	7.65" x 7.32" x 3.68"	Opaque, Hinged Cover	Outdoor (UV Stabilized)
PTQ-11043-C	8.60" x 8.27" x 3.94" 8.68.273.94	7.65" x 7.32" x 3.68"	Clear, Hinged Cover	Outdoor (UV Stabilized)
