Published on: September 4, 2025 by Josiah Haas
When it comes to protecting sensitive electronics in outdoor settings, the box is just as important as the technology it houses. Exposure to rain, snow, dust, temperature fluctuations, and other environmental challenges can quickly compromise poorly protected electrical and electronic systems. Waterproof NEMA enclosures are specifically designed to safeguard equipment in these harsh conditions, ensuring reliable performance and extending product life.
Bud Industries offers a wide selection of enclosures meeting the protection ratings of the North American-based National Electrical Manufacturers Association (NEMA) and the European-based International Electrotechnical Commission (IEC) Ingress Protection (IP). These electrical enclosures are made from materials such as steel, stainless steel, die-cast aluminum, extruded aluminum, polycarbonate and ABS plastic, and fiberglass. These materials, paired with precision manufacturing and sealing, deliver the protection needed for demanding outdoor applications. Key attributes such as weatherproof construction, corrosion resistance, and compliance with protection standards make these enclosures ideal for outdoor use.
NEMA enclosures excel in outdoor applications because they address the unique challenges that outdoor environments present. Unlike indoor applications, where environmental factors are controlled, outdoor installations must contend with rain, snow, wind-driven moisture, temperature extremes, UV radiation, dust, and corrosion.
NEMA developed its rating system specifically to classify an enclosure’s level of protection. For outdoor applications, NEMA 3, 3R, 3X, 3RX, 4, 4X, 6, and 6P ratings provide the necessary protection levels. Perhaps the most popular ratings include NEMA 4 and 4X enclosures, which offer protection against dust and hose-directed water, making them suitable for both factory washdown and outdoor locations (assuming they are UV stable).

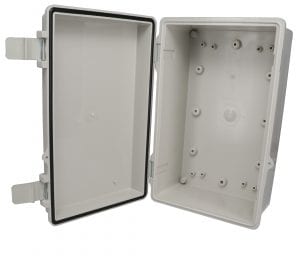

Bud Industries’ NBB Series enclosures are rated NEMA 4X, protecting against dust and hose-directed water while offering inherent corrosion resistance through their polycarbonate construction. The “X” designation in NEMA 4X indicates corrosion resistance, essential for long-term outdoor exposure.
For more demanding applications, NEMA 6 and 6P enclosures protect against temporary or prolonged submersion, making them ideal for flood-prone areas or marine environments. The Bud DPS Series and DPH Series enclosures achieve both IP68 and NEMA 6P ratings, with the DPS featuring screw-down covers for maximum seal integrity and the DPH offering hinged covers for applications requiring frequent field access. These higher ratings ensure that even under extreme conditions, sensitive electronics remain protected and operational.
The precision of NEMA standards eliminates ambiguity. Terms like “waterproof” and “sealed” lack specificity, but NEMA ratings provide clear, test-based standards. Design engineers can confidently specify exactly the level of protection needed, knowing that a NEMA 4X enclosure will withstand hose-directed water at specific pressures and flow rates, and a NEMA 6P enclosure can survive prolonged submersion.
Several key features work together to ensure the durability and reliability of waterproof NEMA enclosures in outdoor applications. Attention to these details will ensure the durability and reliability of an outdoor NEMA enclosure.
Robust Sealing Systems: The foundation of any waterproof enclosure is its sealing system. High-quality gaskets, typically made from polyurethane, neoprene, and special foam materials, create watertight seals between enclosure covers and bodies. Many Bud enclosures ensure secure sealing with poured-in-place, seamless gaskets. The process creates a single piece gasket, eliminating seams or locations with compromised integrity. These gaskets can maintain their flexibility and sealing properties across a wide temperature range while resisting UV degradation and ozone exposure.
Material Selection: Bud Industries manufactures NEMA-rated enclosures from a comprehensive range of materials, each chosen for specific outdoor challenges.
UV Stabilization: Note that while NEMA ratings define levels of protection against rain and wind-driven water, they do not address sunlight on outdoor NEMA enclosures. If the enclosure is made of plastic, it is up to the specifier to check for outdoor compatibility.
Without proper UV protection, plastic materials can become brittle and discolored when exposed to sunlight, potentially compromising the enclosure’s integrity. Plastic enclosures intended for outdoor use must incorporate UV stabilizers in the resin before manufacture.
Specialized Applications: Beyond general-purpose enclosures, Bud offers specialized designs for specific outdoor applications. The PTT Series provides optimal solutions for signal terminations and junction box applications with convenient knockouts for ease of cable gland or other component installation. The FBR Series Fiber Optic Boxes are specifically designed for fiber optic cable connections. These purpose-built enclosures ensure that specialized equipment receives appropriate protection without compromising functionality.
Corrosion Resistance: Plastic, stainless steel, and aluminum provide inherent corrosion resistance. Even plain steel enclosures can be corrosion-resistant when covered with a proper powder-coating finish. The NEMA 4X designation specifically addresses corrosion resistance, ensuring enclosures can withstand salt spray and other corrosive environments.
Secure Fastening Systems: Screw-down covers provide even pressure distribution around gasket seals, creating reliable waterproof barriers. For applications requiring frequent access, hinged covers with secure latching mechanisms maintain protection while enabling field serviceability.
Understanding which NEMA and IP ratings apply to outdoor, waterproof applications helps specifiers make the proper selection. We have provided detailed definitions of the ratings in our NEMA Ratings Guide for Electronic Enclosures. To see how IP ratings compare to NEMA ratings, see NEMA vs. IP Enclosure Protection Ratings.
Enclosures must undergo rigorous testing to achieve NEMA and IP ratings. NEMA 4X testing, for example, involves subjecting enclosures to hose-directed water at 65 gallons per minute from a 10-foot distance. The enclosure must also pass a salt spray test for corrosion resistance. IP66 testing uses powerful water jets at 100 kPa pressure with 100-liters-per-minute flow rate for three minutes.
These standardized tests provide confidence that properly rated enclosures will perform as expected in real-world conditions. However, proper installation remains critical – cable glands must seal cable entries, and all mounting hardware must maintain the enclosure’s integrity.
Waterproof NEMA enclosures provide essential protection for outdoor electronic applications through carefully engineered designs that address specific environmental challenges. By understanding NEMA and IP ratings, selecting appropriate materials, and ensuring proper installation, engineers can deploy reliable outdoor systems that perform throughout their intended service life.
For more information on selecting an outdoor NEMA enclosure, see Tips on Selecting a NEMA 4 Enclosure, The Top 10 Issues in Selecting Enclosures for Harsh Environments, and Avoid Typical Mistakes in Picking an Outdoor Enclosure.
