NBF-32038

NEMA Enclosure ABS Plastic NBF-32038
  • NEMA Plastic Enclosure NBF Series

Product Details

Model # NBF-32038 NBF Series NEMA Box
  • Designed to IP66 of IEC 529 and NEMA 1, 2, 4 and 4x specifications
  • All plastic construction including hinge pins
  • Comes complete with stainless steel wall mounting brackets and hardware
  • Has three plastic latches
  • ABS plastic enclosures are molded out of light gray material with UL94-HB flammability rating. (No UL Label)
See Other Models Search by Size See Accessories Check Stock / Pricing
External Size L x W x D: 20.95" x 17.05" x 7.87"
Internal Size L x W x D: 19.58" x 15.62" x 7.17"
Weight: 11.7 lbs
Color: Light Gray
RoHS Certified: Always Compliant
Indoor / Outdoor: Indoor (Not UV Stabilized)
Flammability Rating: UL94-HB
Door Flammability Rating: UL94-HB
Type of Plastic: ABS
Door Type of Plastic: ABS
Service Temperature Min: -40°C
Service Temperature Max: 60°C
IP Rating: 66
Cover Style: Opaque, Hinged Cover
hb32038.pdf hb32038.dxf

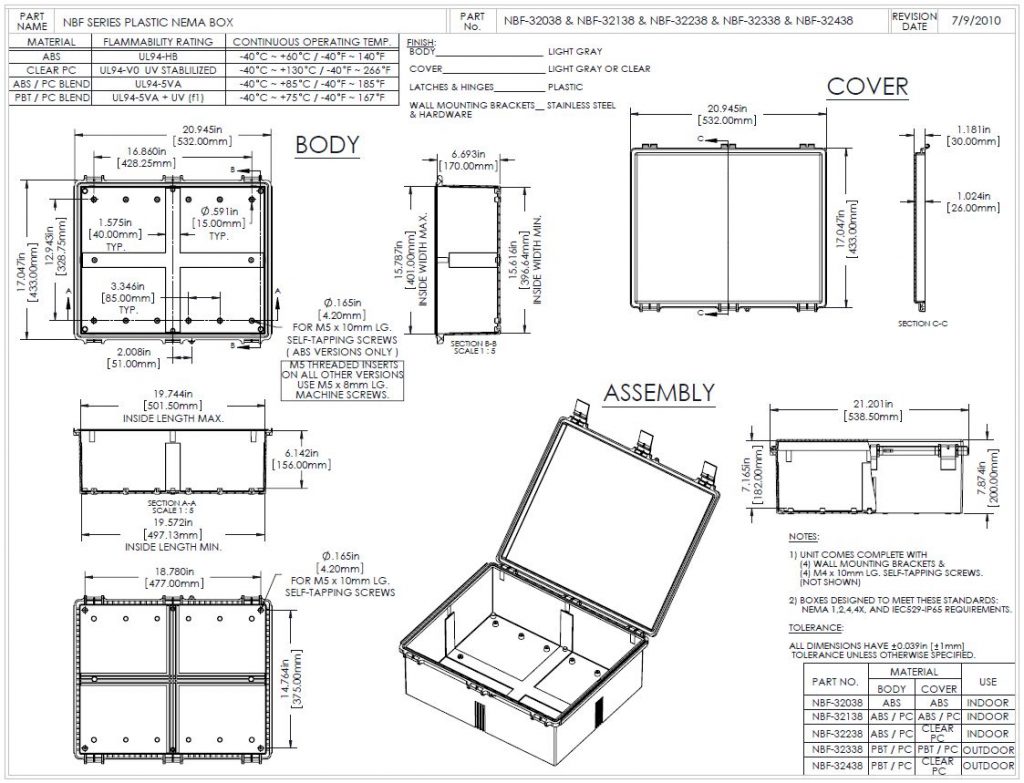

Drawing
