NBF-32316

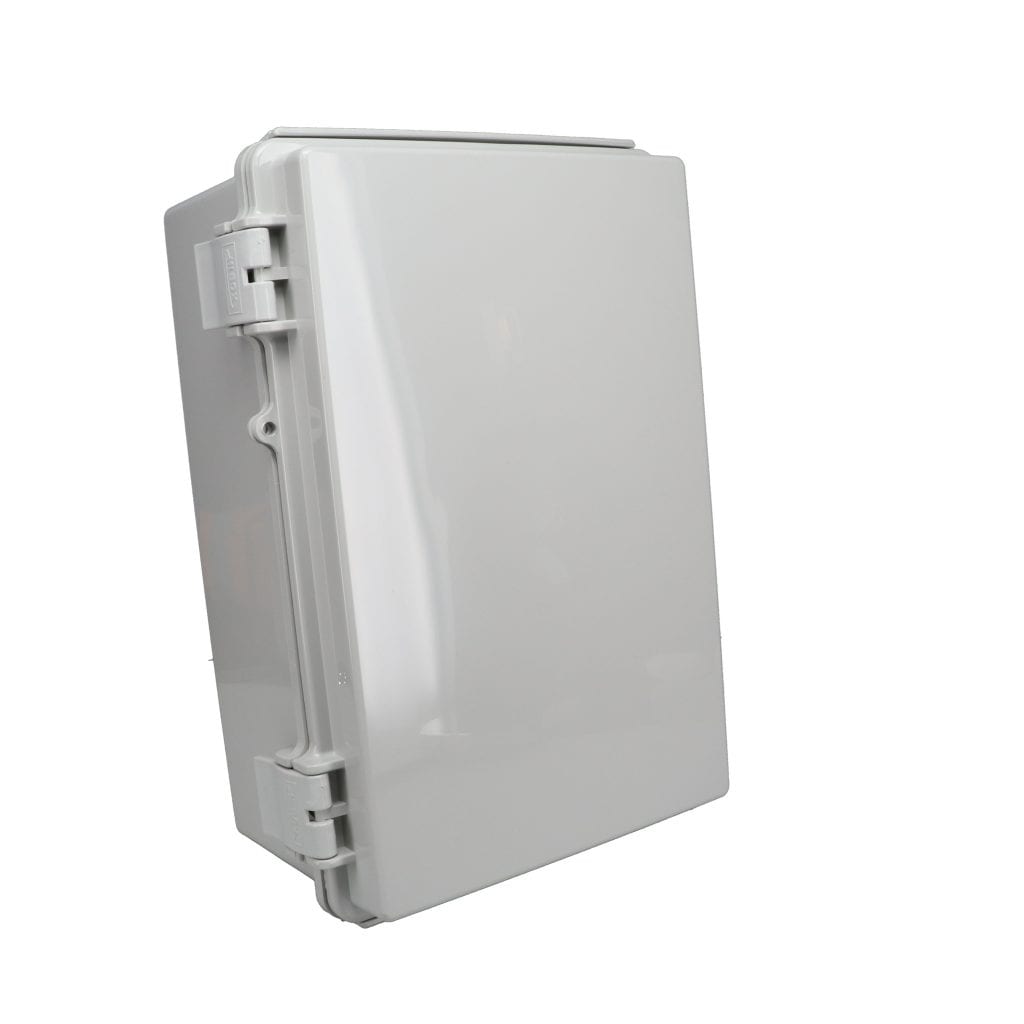

NEMA Enclosure Poly PTB Blend NBF-32316
  • NEMA Plastic Enclosure NBF Series

Product Details

Model # NBF-32316 NBF Series NEMA Box
  • Designed to IP66 of IEC 529 and NEMA 1, 2, 4 and 4x specifications
  • All plastic construction including hinge pins
  • Comes complete with stainless steel wall mounting brackets and hardware
  • Has two plastic latches
  • *PC/PBT blended plastic enclosures are molded out of light gray material with UL94-5VA flammability rating and UV stabilized
See Other Models Search by Size See Accessories Check Stock / Pricing
External Size L x W x D: 11.99" x 7.99" x 5.22"
Internal Size L x W x D: 11.01" x 7.02" x 4.62"
Weight: 2.0 lbs
Color: Light Gray
RoHS Certified: Always Compliant
Indoor / Outdoor: Outdoor (UV Stabilized)
Flammability Rating: UL94-5VA
Door Flammability Rating: UL94-5VA
Type of Plastic: Poly PTB Blend
Door Type of Plastic: Poly PTB Blend
UL Rating: UL508
Service Temperature Min: -40°C
Service Temperature Max: 75°C
NEMA Rating: NEMA 1, NEMA 2, NEMA 4, NEMA 4X
IP Rating: 66
Cover Style: Opaque, Hinged Cover
hbnbf32016.pdf hbnbf32016.dxf

Drawing
