NBF-32238

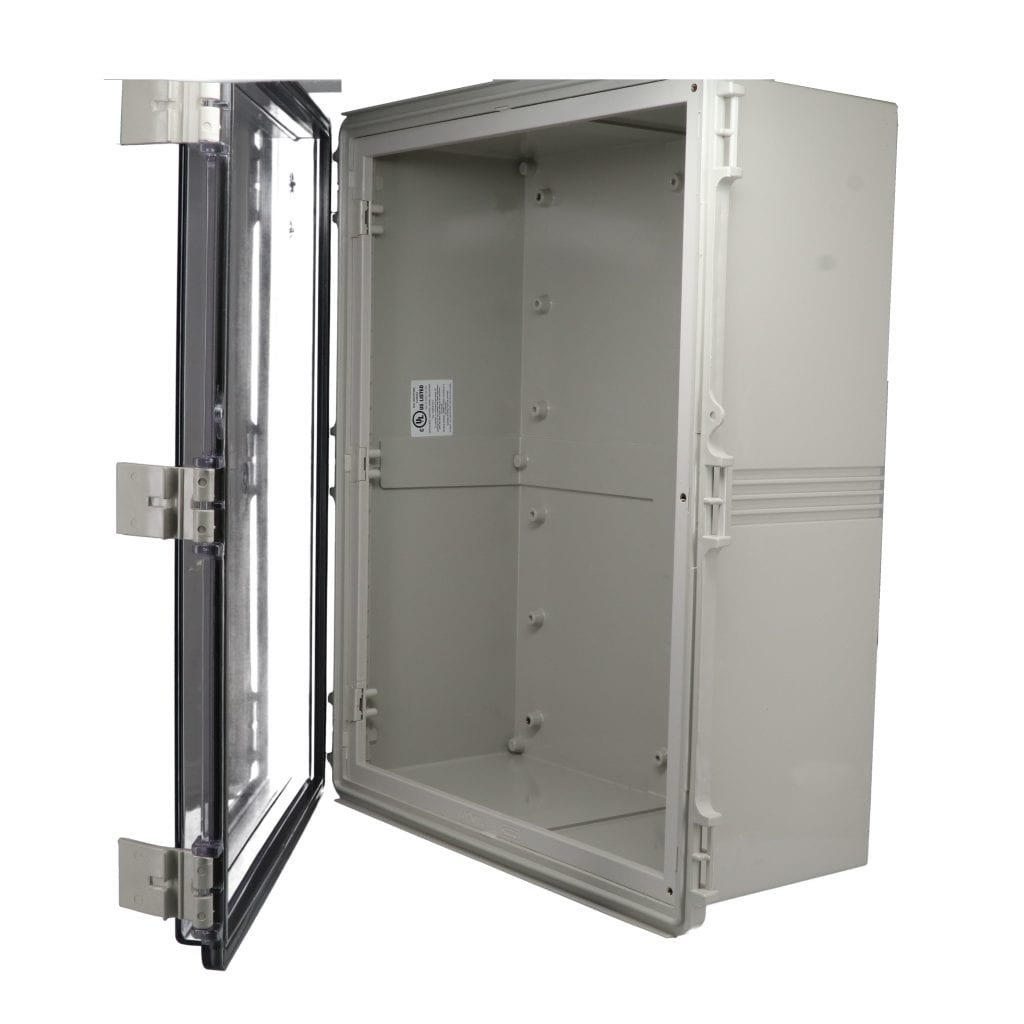

NEMA Enclosure ABS Poly Blend with Clear Polycarbonate Door NBF-32238
  • NEMA Plastic Enclosure NBF Series

Product Details

Model # NBF-32238 NBF Series NEMA Box
  • Designed to IP66 of IEC 529 and NEMA 1, 2, 4 and 4x specifications
  • All plastic construction including hinge pins
  • Comes complete with stainless steel wall mounting brackets and hardware
  • Has three plastic latches
  • ABS/PC blended plastic enclosures are molded out of light gray material with UL94-5VA flammability rating. Suggested service temperature range -40C to +70C.
  • Clear doors are molded out of polycarbonate material with UL94-V0 flammability rating
See Other Models Search by Size See Accessories Check Stock / Pricing
External Size L x W x D: 20.95" x 17.05" x 7.87"
Internal Size L x W x D: 19.58" x 15.62" x 7.17"
Weight: 11.7 lbs
Color: Light Gray
RoHS Certified: Always Compliant
Indoor / Outdoor: Indoor (Not UV Stabilized)
Flammability Rating: UL94-5VA
Door Flammability Rating: UL94-V0
Type of Plastic: ABS Poly Blend
Door Type of Plastic: Clear Polycarbonate
UL Rating: UL508
Service Temperature Min: -40°C
Service Temperature Max: 85°C
NEMA Rating: NEMA 1, NEMA 2, NEMA 4, NEMA 4X
IP Rating: 66
Cover Style: Clear, Hinged Cover
hbnbf32238.pdf hb32038.dxf

Drawing
