NBF-32110

NEMA Enclosure ABS Poly Blend NBF-32110
  • NEMA Plastic Enclosure NBF Series

Product Details

Model # NBF-32110 NBF Series NEMA Box
  • Designed to IP66 of IEC 529 and NEMA 1, 2, 4 and 4x specifications
  • All plastic construction including hinge pins
  • Comes complete with stainless steel wall mounting brackets and hardware
  • Has two plastic latches
  • ABS/PC blended plastic enclosures are molded out of light gray material with UL94-5VA flammability rating. Suggested service temperature range -40C to +70C.
See Other Models Search by Size See Accessories Check Stock / Pricing
External Size L x W x D: 5.91" x 5.91" x 3.54"
Internal Size L x W x D: 5.26" x 5.26" x 3.03"
Weight: 0.8 lbs
Color: Light Gray
RoHS Certified: Always Compliant
Indoor / Outdoor: Indoor (Not UV Stabilized)
Flammability Rating: UL94-5VA
Door Flammability Rating: UL94-5VA
Type of Plastic: ABS Poly Blend
Door Type of Plastic: ABS Poly Blend
UL Rating: UL508
Service Temperature Min: -40°C
Service Temperature Max: 85°C
NEMA Rating: NEMA 1, NEMA 2, NEMA 4, NEMA 4X
IP Rating: 66
Cover Style: Opaque, Hinged Cover
hbnbf32010.pdf hbnbf32010.dxf

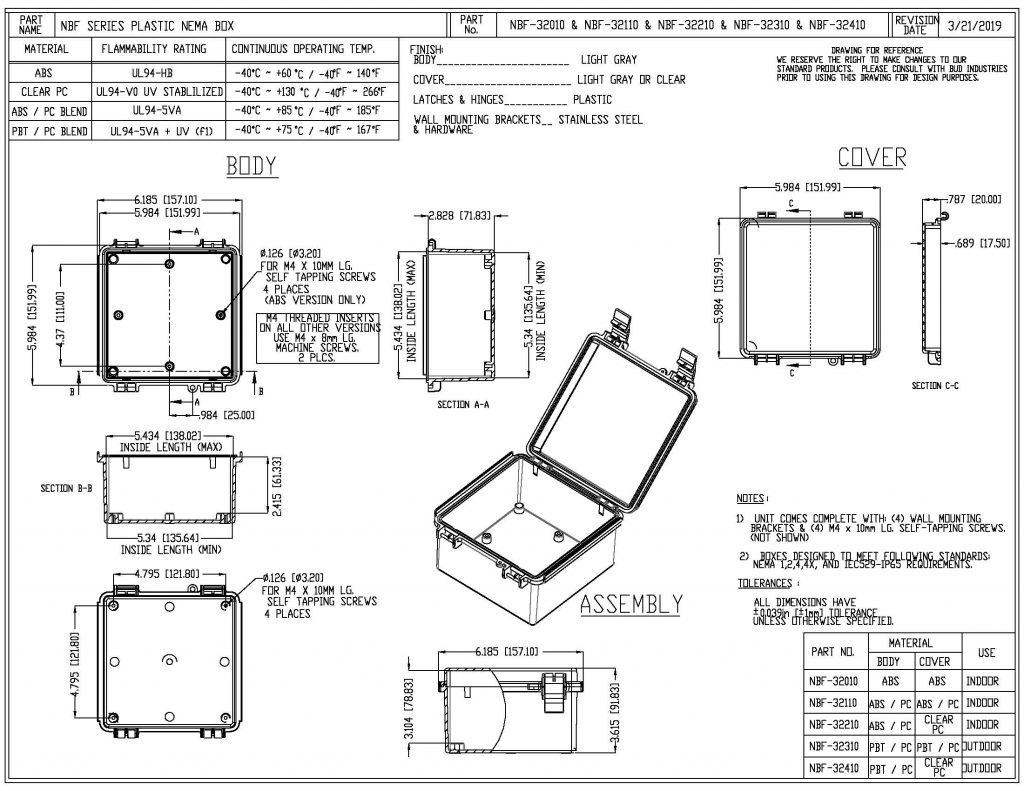

Drawing
