NBF-32424

NEMA Enclosure Poly PTB Blend with Clear Polycabonate Door NBF-32424
  • NEMA Plastic Enclosure NBF Series

Product Details

Model # NBF-32424 NBF Series NEMA Box
  • Designed to IP66 of IEC 529 and NEMA 1, 2, 4 and 4x specifications
  • All plastic construction including hinge pins
  • Comes complete with stainless steel wall mounting brackets and hardware
  • Has two  plastic latches
  • *PC/PBT blended plastic enclosures are molded out of light gray material with UL94-5VA flammability rating and UV stabilized
  • Non-stocking.  Has extended lead time.
See Other Models Search by Size See Accessories Check Stock / Pricing
External Size L x W x D: 13.78" x 9.84" x 7.09"
Internal Size L x W x D: 12.82" x 8.88" x 6.5"
Weight: 3.0 lbs
Color: Light Gray
RoHS Certified: Always Compliant
Indoor / Outdoor: Outdoor (UV Stabilized)
Flammability Rating: UL94-5VA
Door Flammability Rating: UL94-V0
Type of Plastic: Poly PTB Blend
Door Type of Plastic: Clear Polycarbonate
UL Rating: UL508
Service Temperature Min: -40°C
Service Temperature Max: 75°C
NEMA Rating: NEMA 1, NEMA 2, NEMA 4, NEMA 4X
IP Rating: 66
Cover Style: Clear, Hinged Cover
hb32024.pdf hb32024.dxf

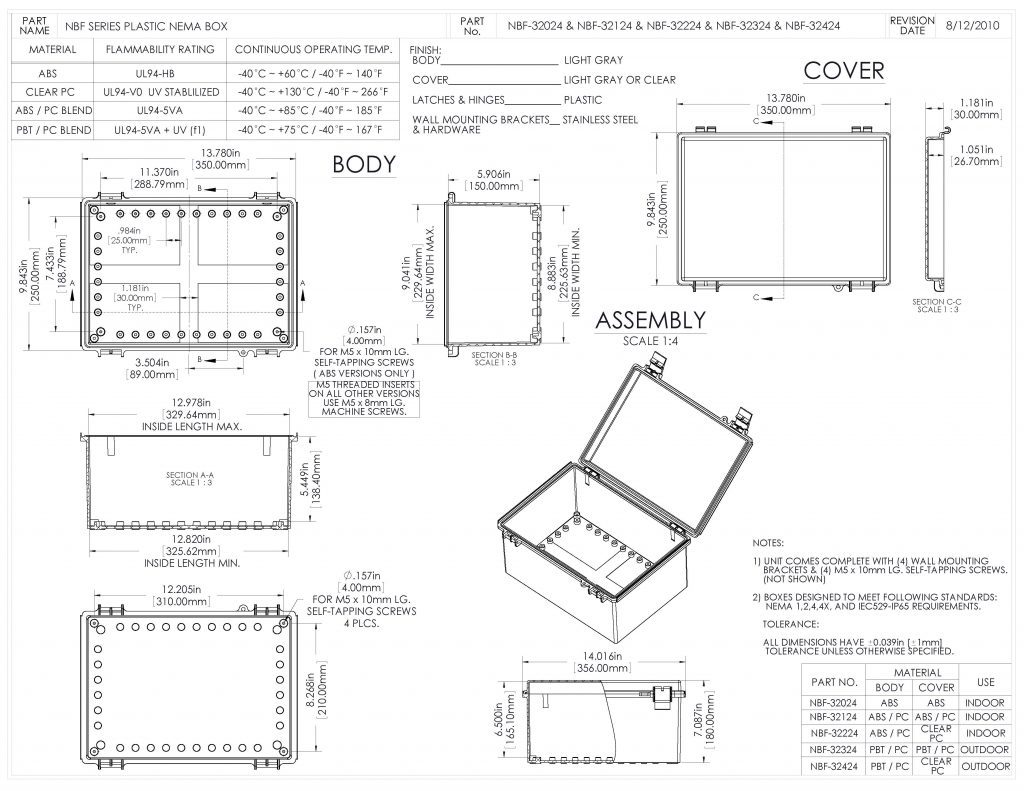

Drawing
