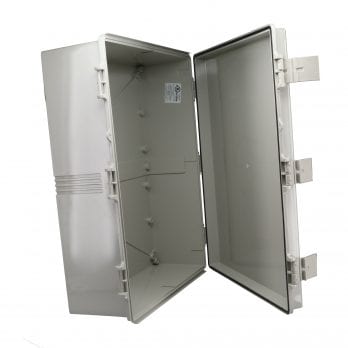

NBF-32132

NEMA Enclosure ABS Poly BlendNBF-32132
  • NEMA Plastic Enclosure NBF Series

Product Details

Model # NBF-32132 NBF Series NEMA Box
  • Designed to IP66 of IEC 529 and NEMA 1, 2, 4 and 4x specifications
  • All plastic construction including hinge pins
  • Comes complete with stainless steel wall mounting brackets and hardware
  • Has three plastic latches
  • ABS/PC blended plastic enclosures are molded out of light gray material with UL94-5VA flammability rating. Suggested service temperature range -40C to +70C.
See Other Models Search by Size See Accessories Check Stock / Pricing
External Size L x W x D: 19.69" x 15.75" x 6.3"
Internal Size L x W x D: 18.68" x 14.74" x 5.65"
Weight: 9.6 lbs
Color: Light Gray
RoHS Certified: Always Compliant
Indoor / Outdoor: Indoor (Not UV Stabilized)
Flammability Rating: UL94-5VA
Door Flammability Rating: UL94-5VA
Type of Plastic: ABS Poly Blend
Door Type of Plastic: ABS Poly Blend
UL Rating: UL508
Service Temperature Min: -40°C
Service Temperature Max: 85°C
NEMA Rating: NEMA 1, NEMA 2, NEMA 4, NEMA 4X
IP Rating: 66
Cover Style: Opaque, Hinged Cover
hb32032.pdf hb32032.dxf

Drawing
