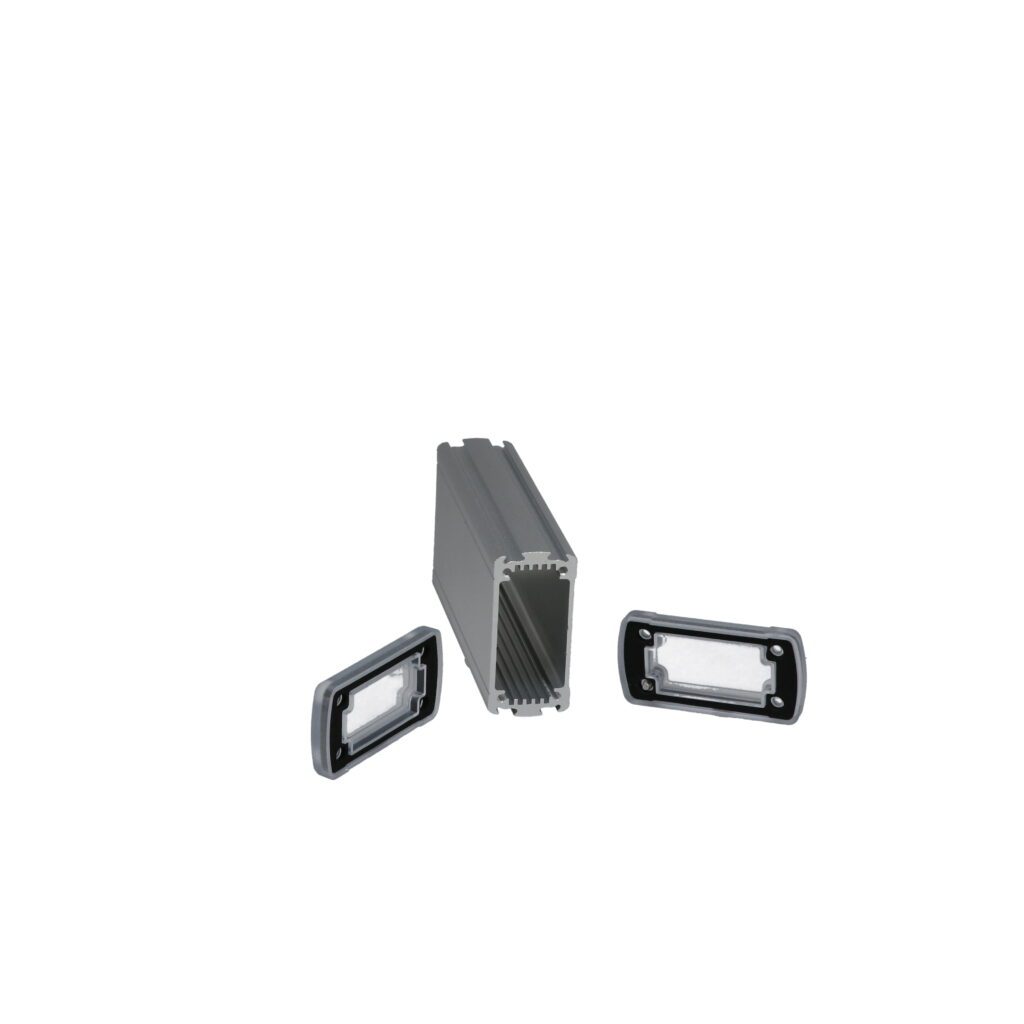

Extruded Aluminum Enclosure Silver with Plastic Cover EXN-23352-SVP

Model # EXN-23352-SVP EXN Series Extruded Alumimum Enclosure

Designed to allow a PCB to slide in
Grooved exterior for faster heat removal
Easily modified covers and body
Enclosures include continuous gaskets and can be used indoors or outdoors (IP66)
Anodized silver
Covers are clear polycarbonate plastic (UL94-V0)
The exterior design of the enclosures includes a built-in 0.02in. recessed area on which a product label can be affixed and/or printed on directly
Specially designed exterior mounting brackets (not included)

See Other Models Search by Size See Accessories Check Stock / Pricing

External Dimensions: 5.08" x 2.7" x 1.39"

Internal Dimensions: 4.72" x 1.65" x 1"

Weight: .37 lbs

Color: Silver

RoHS Certified: Always Compliant

Card Guides: Yes

Gasket Type: Rubber Foam

Cover Style: Clear, Screw Down Cover, Plastic Cover (EXN)

IP Rating: 66

Drawing

EXN-23352-SVP Dimensions
