EXN-23362-BL

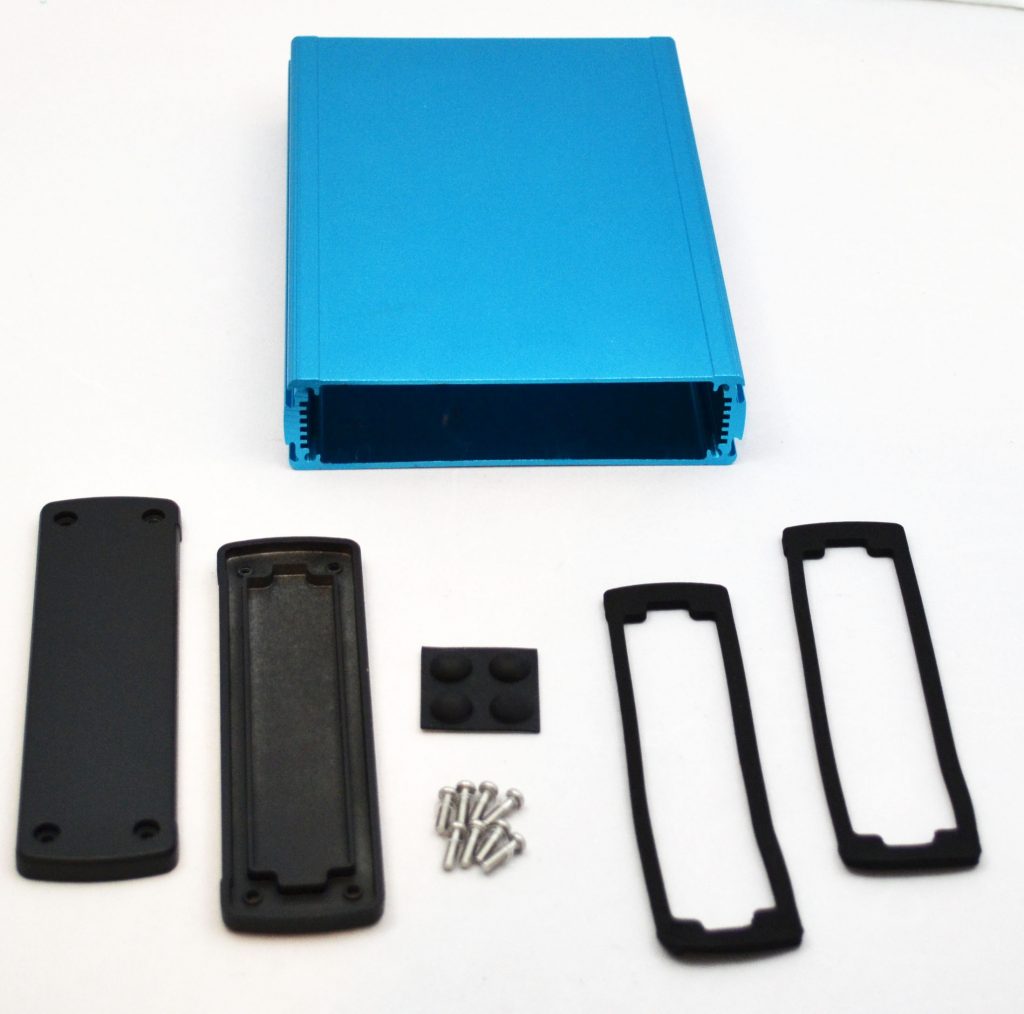

Extruded Aluminum Enclosure Blue EXN-23362-BL
  • Extruded Aluminum Enclosure Blue EXN-23362-BL

Product Details

Model # EXN-23362-BL EXN Series Extruded Alumimum Enclosure
  • Designed to allow a PCB to slide in
  • Grooved exterior for faster heat removal
  • Easily modified covers and body
  • Enclosures include continuous gaskets and can be used indoors or outdoors (IP66)
  • Anodized blue
  • Covers are blue powder coated die-cast aluminum (ADC-12)
  • The exterior design of the enclosures includes a built-in 0.02in. recessed area on which a product label can be affixed and/or printed on directly
  • Specially designed exterior mounting brackets (not included)
See Other Models Search by Size See Accessories Check Stock / Pricing
External Dimensions: 8.23" x 5.77" x 1.64"
Internal Dimensions: 7.87" x 4.92" x 1"
Weight: 1.22 lbs
Color: Blue
RoHS Certified: Always Compliant
IP Rating: 66
Cover Style: Opaque, Screw Down Cover, Aluminum Cover (EXN)
Gasket Type: Rubber Foam
Card Guides: Yes
hbexn23362.pdf hbexn23362.dxf

Drawing
