EXN-23355-BK

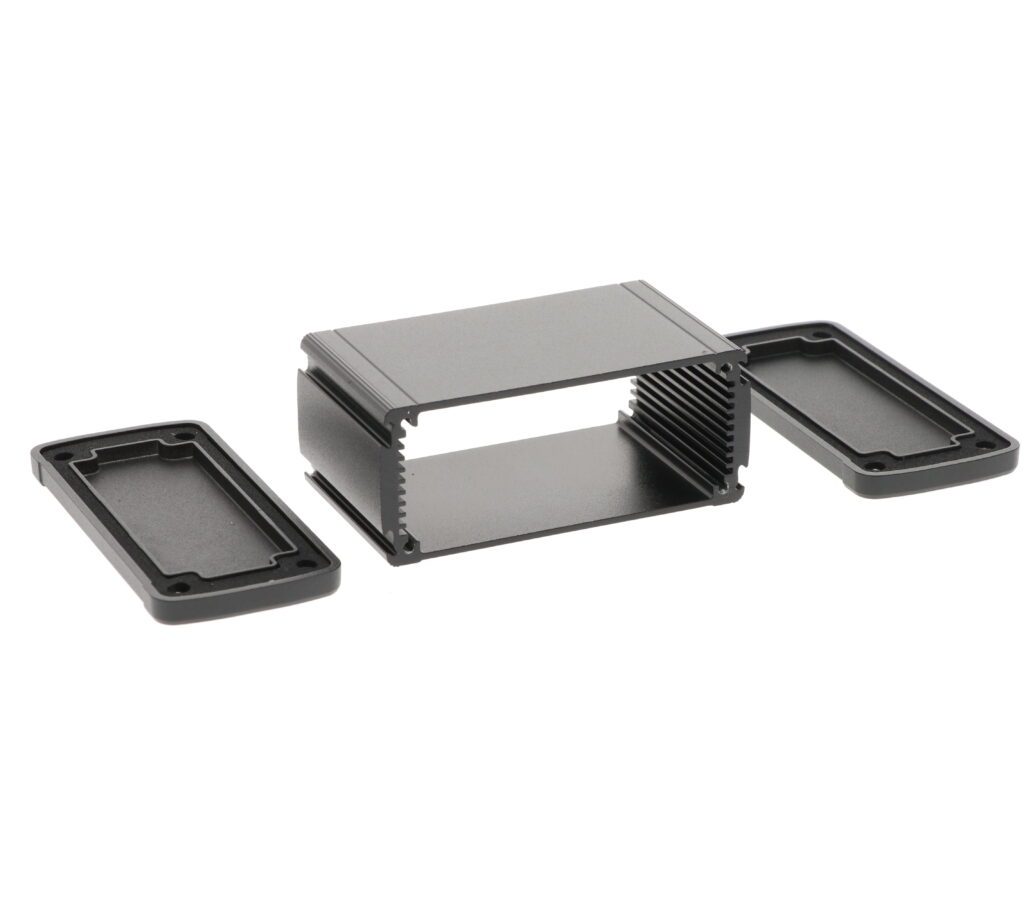

Extruded Aluminum Enclosure Black EXN-23355-BK
  • Extruded Aluminum Enclosure Black EXN-23355-BK

Product Details

Model # EXN-23355-BK EXN Series Extruded Alumimum Enclosure
  • Designed to allow a PCB to slide in
  • Grooved exterior for faster heat removal
  • Easily modified covers and body
  • Enclosures include continuous gaskets and can be used indoors or outdoors (IP66)
  • Anodized black
  • Covers are black powder coated die-cast aluminum (ADC-12)
  • The exterior design of the enclosures includes a built-in 0.02in. recessed area on which a product label can be affixed and/or printed on directly
  • Specially designed exterior mounting brackets (not included)
See Other Models Search by Size See Accessories Check Stock / Pricing
External Dimensions: 6.65" x 4.48" x 1.39"
Internal Dimensions: 6.3" x 3.48" x 1"
Weight: 0.74 lbs
Color: Black
RoHS Certified: Always Compliant
IP Rating: 66
Cover Style: Opaque, Screw Down Cover, Aluminum Cover (EXN)
Gasket Type: Silicone Sponge
Card Guides: Yes
hbexn23355.pdf hbexn23355.dxf

Drawing
