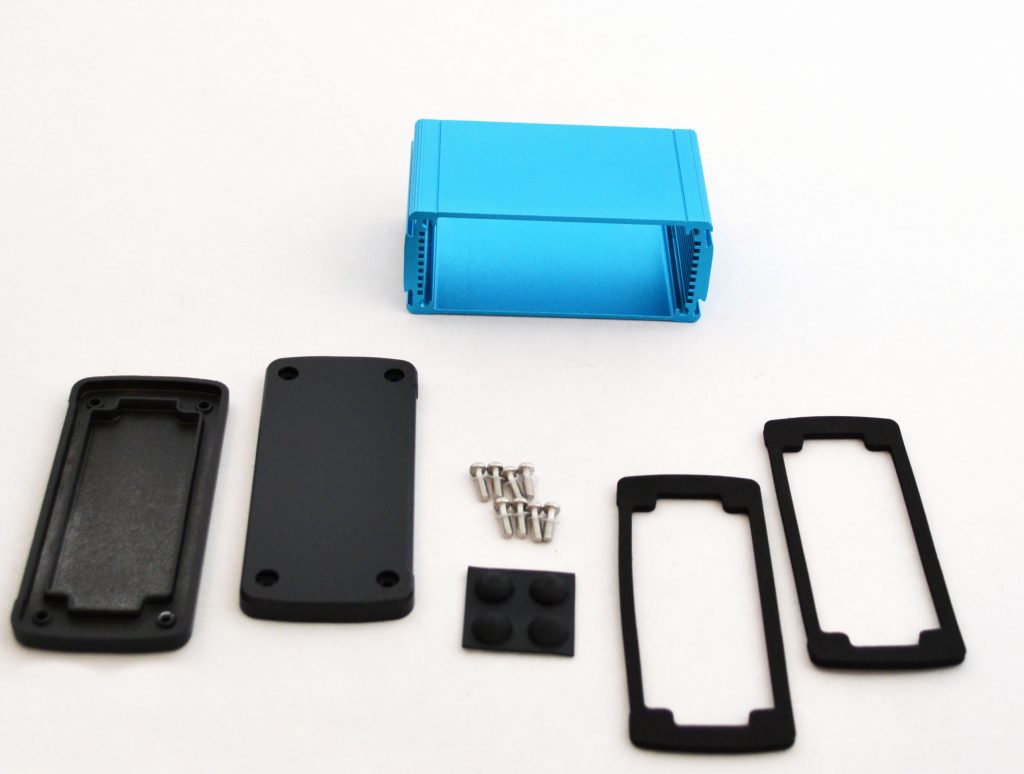

Extruded Aluminum Enclosure Blue EXN-23356-BL

Model # EXN-23356-BL EXN Series Extruded Alumimum Enclosure

Designed to allow a PCB to slide in
Grooved exterior for faster heat removal
Easily modified covers and body
Enclosures include continuous gaskets and can be used indoors or outdoors (IP66)
Anodized blue
Covers are black powder coated die-cast aluminum (ADC-12)
The exterior design of the enclosures includes a built-in 0.02in. recessed area on which a product label can be affixed and/or printed on directly
Specially designed exterior mounting brackets (not included)

See Other Models Search by Size See Accessories Check Stock / Pricing

External Dimensions: 4.53" x 2.72" x 2.03"

Internal Dimensions: 3.72" x 2.36" x 1.59"

Weight: .56 lbs

Color: Blue

RoHS Certified: Always Compliant

IP Rating: 66

Cover Style: Opaque, Screw Down Cover, Aluminum Cover (EXN)

Gasket Type: Rubber Foam

Card Guides: Yes

Drawing

EXN-23356-BL Dimensions
