EXN-23350-GDP

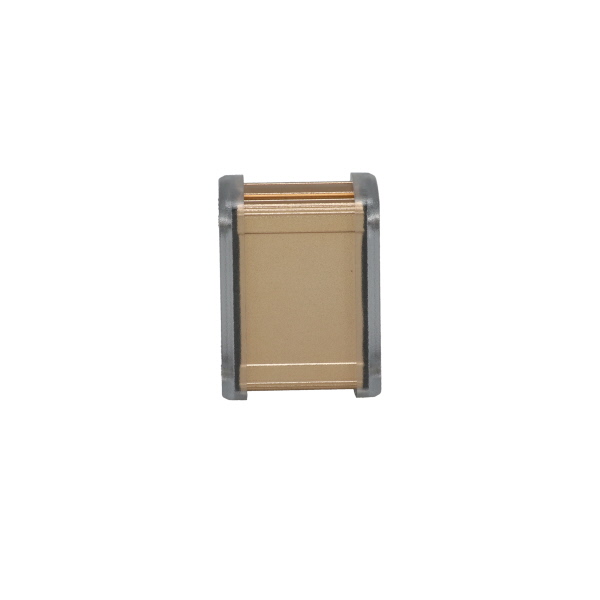

Extruded Aluminum Enclosure Gold with Plastic Cover EXN-23350-GDP
  • Extruded Aluminum Enclosure Gold with plastic cover EXN-23350-GDP

Product Details

Model # EXN-23350-GDP EXN Series Extruded Alumimum Enclosure
  • Designed to allow a PCB to slide in
  • Grooved exterior for faster heat removal
  • Easily modified covers and body
  • Enclosures include continuous gaskets and can be used indoors or outdoors (IP66).
  • Anodized gold
  • Covers are clear polycarbonate plastic (UL94-V0)
  • The exterior design of the enclosures includes a built-in 0.02in. recessed area on which a product label can be affixed and/or printed on directly
See Other Models Search by Size See Accessories Check Stock / Pricing
External Size L x W x D: 2.7" x 1.39" x 1.93"
Internal Size L x W x D: 1.65" x 1" x 1.58"
Weight: 0.15 lbs
Color: Gold
RoHS Certified: Always Compliant
IP Rating: 66
Cover Style: Clear, Screw Down Cover, Plastic Cover (EXN)
Gasket Type: Rubber Foam
Card Guides: Yes
hbexn23350.pdf hbexn23350.dxf

Drawing
