EXN-23350-BK

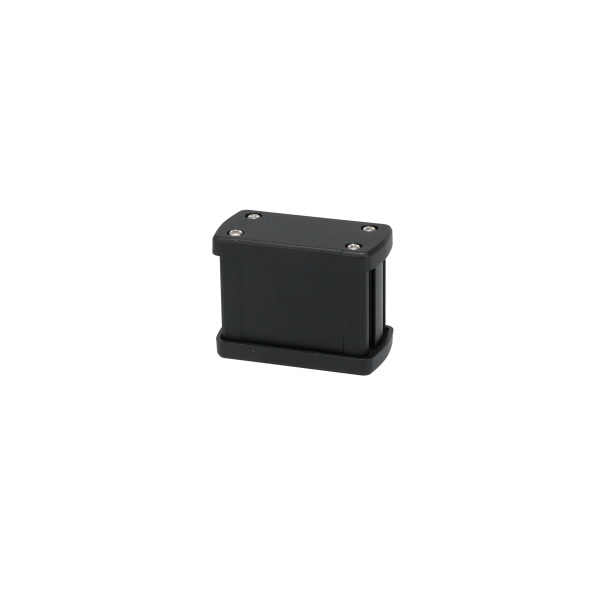

Extruded Aluminum Enclosure Black EXN-23350-BK
  • Extruded Aluminum Enclosure Black EXN-23350-BK

Product Details

Model # EXN-23350-BK EXN Series Extruded Alumimum Enclosure
  • Designed to allow a PCB to slide in
  • Grooved exterior for faster heat removal
  • Easily modified covers and body
  • Enclosures include continuous gaskets and can be used indoors or outdoors (IP66)
  • Anodized black
  • Covers are black powder coated die-cast aluminum (ADC-12)
  • The exterior design of the enclosures includes a built-in 0.02 in. recessed area on which a product label can be affixed and/or printed on directly
  • Specially designed exterior mounting brackets (not included)
See Other Models Search by Size See Accessories Check Stock / Pricing
External Dimensions: 2.7" x 1.93" x 1.39"
Internal Dimensions: 1.65" x 1.58" x 1"
Weight: 0.25 lbs
Color: Black
RoHS Certified: Always Compliant
Gasket Type: Rubber Foam
Card Guides: Yes
IP Rating: 66
Cover Style: Opaque, Screw Down Cover, Aluminum Cover (EXN)
hbexn23350.pdf hbexn23350.dxf

Drawing
