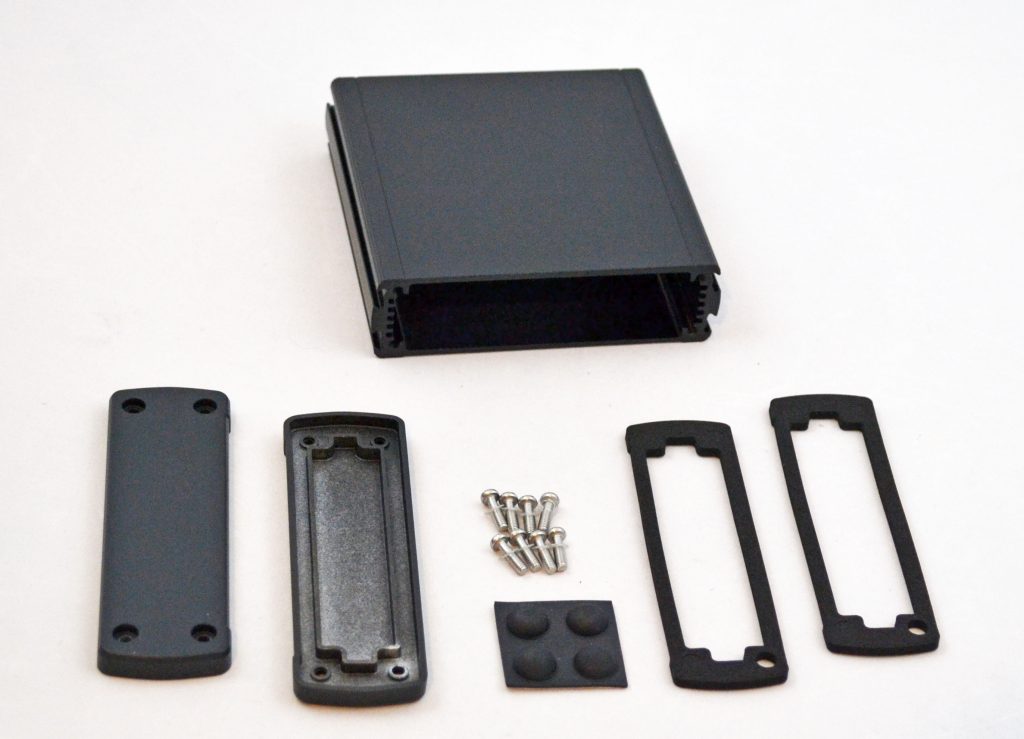

Extruded Aluminum Enclosure Black EXN-23354-BK
  • Extruded Aluminum Enclosure Black EXN-23354-BK

Product Details

Model # EXN-23354-BK EXN Series Extruded Alumimum Enclosure
  • Designed to allow a PCB to slide in
  • Grooved exterior for faster heat removal
  • Easily modified covers and body
  • Enclosures include continuous gaskets and can be used indoors or outdoors (IP66)
  • Anodized black
  • Covers are black powder coated die-cast aluminum (ADC-12)
  • The exterior design of the enclosures includes a built-in 0.02in. recessed area on which a product label can be affixed and/or printed on directly
  • Specially designed exterior mounting brackets (not included)
See Other Models Search by Size See Accessories Check Stock / Pricing
External Size L x W x D: 4.48" x 1.39" x 4.69"
Internal Size L x W x D: 3.48" x 1" x 4.33"
Weight: 0.58 lbs
Color: Black
RoHS Certified: Always Compliant
IP Rating: 66
Cover Style: Opaque, Screw Down Cover, Aluminum Cover (EXN)
Gasket Type: Rubber Foam
Card Guides: Yes
hbexn23354.pdf hbexn23354.dxf
