EXN-23356-SVP

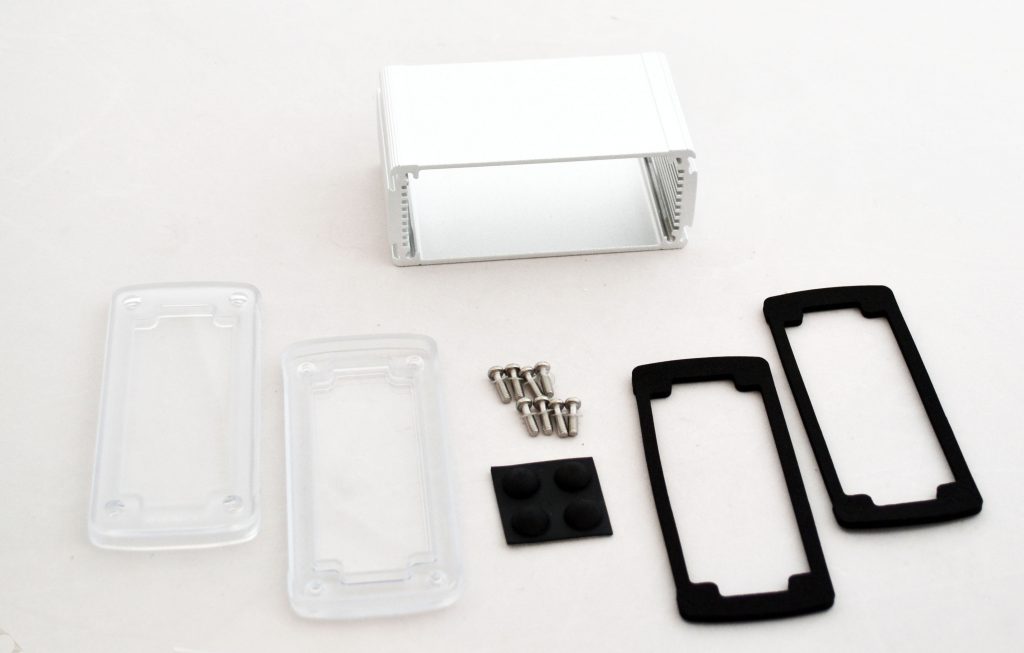

Extruded Aluminum Enclosure Silver with Plastic Cover EXN-23356-SVP
  • Extruded Aluminum Enclosure Silver with Plastic Cover EXN-23356-SVP

Product Details

Model # EXN-23356-SVP EXN Series Extruded Alumimum Enclosure
  • Designed to allow a PCB to slide in
  • Grooved exterior for faster heat removal
  • Easily modified covers and body
  • Enclosures include continuous gaskets and can be used indoors or outdoors (IP66)
  • Anodized silver
  • Covers are clear polycarbonate plastic (UL94-V0)
  • The exterior design of the enclosures includes a built-in 0.02in. recessed area on which a product label can be affixed and/or printed on directly
  • Specially designed exterior mounting brackets (not included)
See Other Models Search by Size See Accessories Check Stock / Pricing
External Size L x W x D: 4.53" x 2.03" x 2.72"
Internal Size L x W x D: 3.72" x 1.59" x 2.36"
Weight: .37 lbs
Color: Silver
RoHS Certified: Always Compliant
IP Rating: 66
Cover Style: Clear, Screw Down Cover, Plastic Cover (EXN)
Gasket Type: Rubber Foam
Card Guides: Yes
hbexn23356.pdf hbexn23356.dxf

Drawing
