EXN-23357-RD

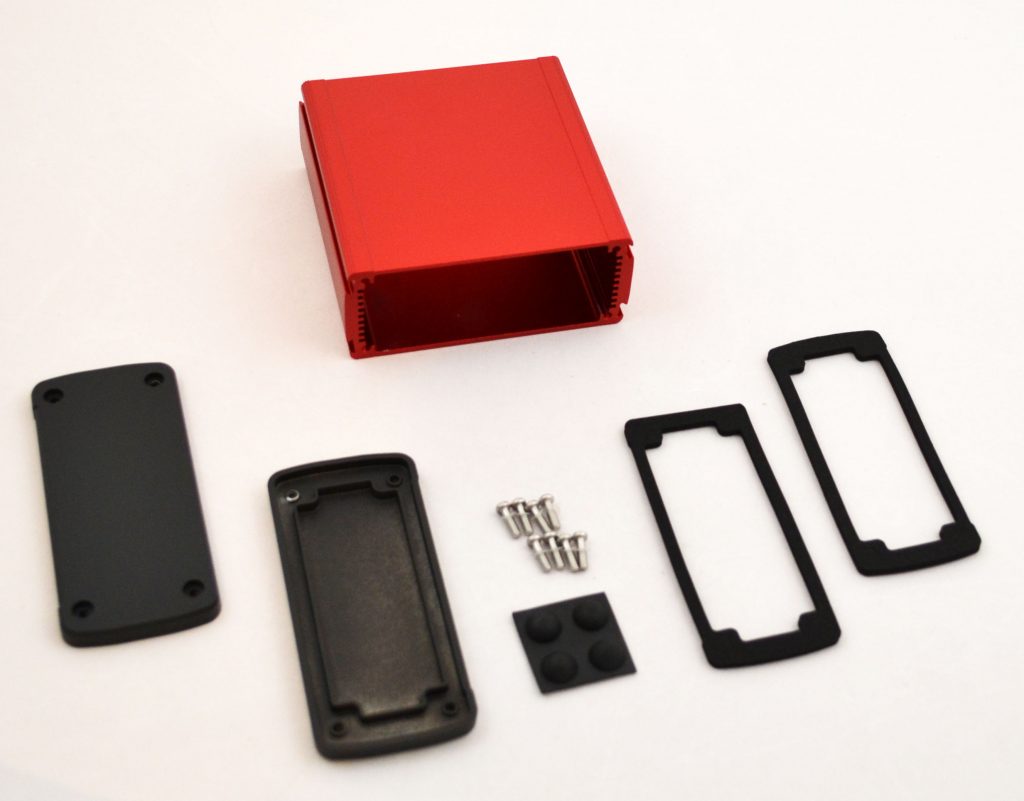

Extruded Aluminum Enclosure Red EXN-23357-RD
  • Extruded Aluminum Enclosure Red EXN-23357-RD

Product Details

Model # EXN-23357-RD EXN Series Extruded Alumimum Enclosure
  • Designed to allow a PCB to slide in
  • Grooved exterior for faster heat removal
  • Easily modified covers and body
  • Enclosures include continuous gaskets and can be used indoors or outdoors (IP66)
  • Anodized red
  • Covers are red powder coated die-cast aluminum (ADC-12)
  • The exterior design of the enclosures includes a built-in 0.02in. recessed area on which a product label can be affixed and/or printed on directly
  • Specially designed exterior mounting brackets (not included)
See Other Models Search by Size See Accessories Check Stock / Pricing
External Size L x W x D: 4.53" x 2.03" x 4.69"
Internal Size L x W x D: 3.72" x 1.59" x 4.33"
Weight: .74 lbs
Color: Red
RoHS Certified: Always Compliant
IP Rating: 66
Cover Style: Opaque, Screw Down Cover, Aluminum Cover (EXN)
Gasket Type: Rubber Foam
Card Guides: Yes
hbexn23357.pdf hbexn23357.dxf

Drawing
