Extruded Aluminum Enclosure Gold EXN-23364-GD
  • Extruded Aluminum Enclosure Gold EXN-23364-GD

Product Details

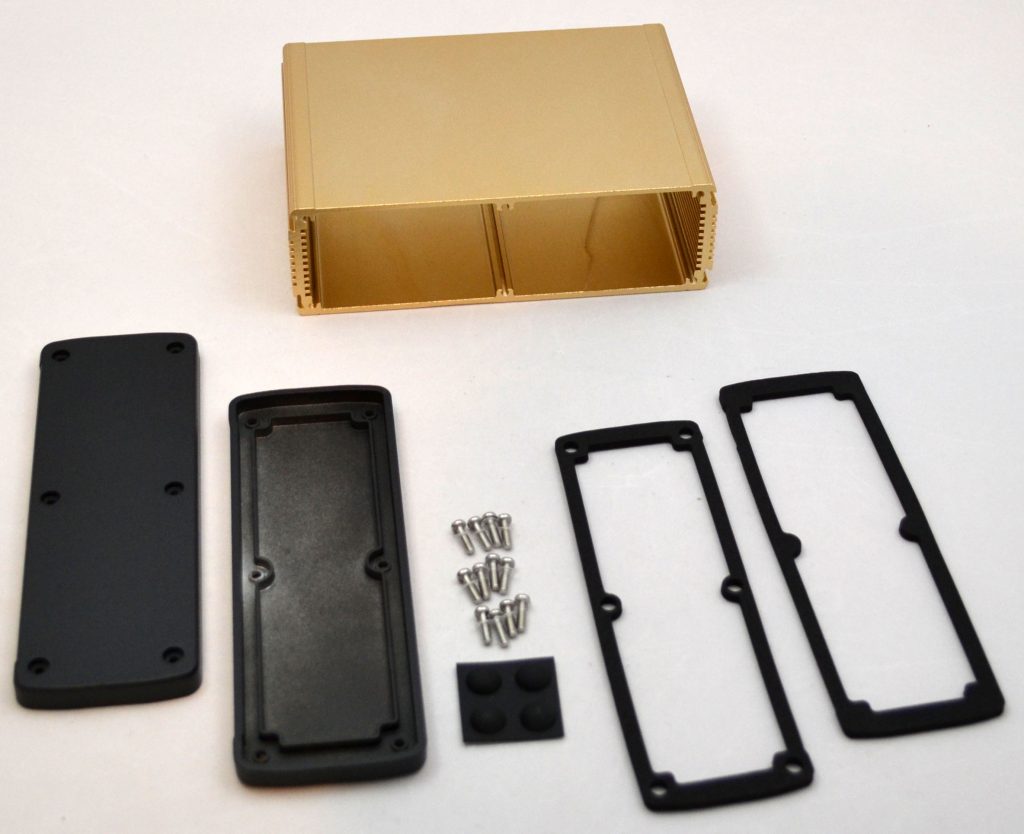

Model # EXN-23364-GD EXN Series Extruded Alumimum Enclosure
  • Designed to allow a PCB to slide in
  • Grooved exterior for faster heat removal
  • Easily modified covers and body
  • Enclosures include continuous gaskets and can be used indoors or outdoors (IP66)
  • Anodized gold
  • Covers are black powder coated die-cast aluminum (ADC-12)
  • The exterior design of the enclosures includes a built-in 0.02in. recessed area on which a product label can be affixed and/or printed on directly
  • Specially designed exterior mounting brackets (not included)
See Other Models Search by Size See Accessories Check Stock / Pricing
External Size L x W x D: 2.41" x 6.99" x 5.08"
Internal Size L x W x D: 2.12" x 6.10" x 4.92"
Weight: 1.36 lbs
Color: Gold
RoHS Certified: Always Compliant
IP Rating: 66
Cover Style: Opaque, Screw Down Cover, Aluminum Cover (EXN)
Gasket Type: Rubber Foam
Card Guides: Yes
hbexn23364.pdf hbexn23364.dxf
